SMC G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4, 1MPa max. input
- RS Stock No.:
- 884-6734
- Mfr. Part No.:
- AR20-F02BG-B
- Brand:
- SMC
4 In stock - FREE next working day delivery available
Added
Price Each
£34.99
(exc. VAT)
£41.99
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £34.99 |
| 5 - 9 | £32.93 |
| 10 + | £31.55 |
- RS Stock No.:
- 884-6734
- Mfr. Part No.:
- AR20-F02BG-B
- Brand:
- SMC
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- JP
Product Details
SMC Air Regulator AR20-B - AR40-B
SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.
Note

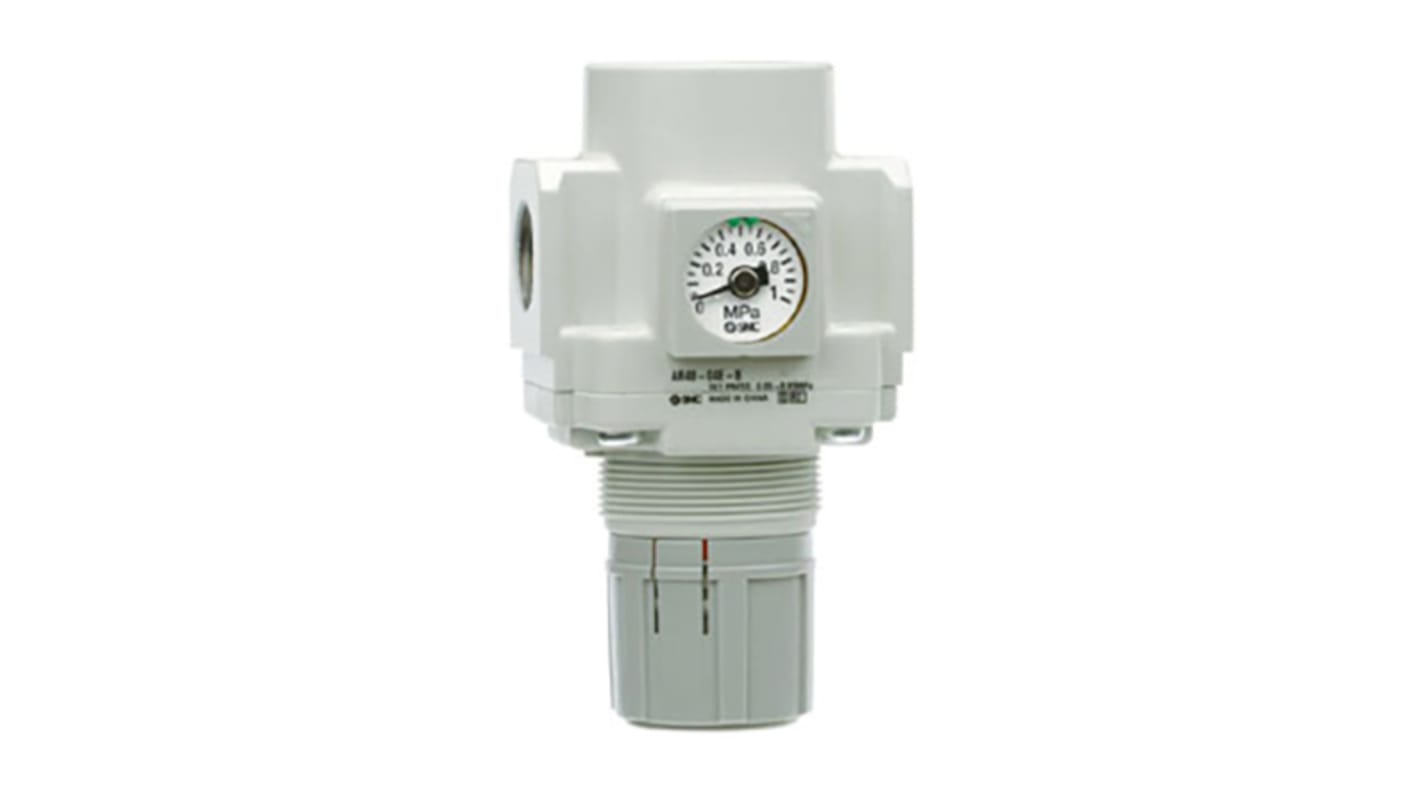

An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 1/4 |
| Maximum Outlet Pressure | 0.85MPa |
| Minimum Outlet Pressure | 0.05MPa |
| Maximum Input Pressure | 1MPa |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 1/4 |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | 20L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Proof Pressure | 1.5MPa |
| Overall Height | 94mm |
| Pressure Gauge Port Thread Standard | Rc |
| Overall Width | 55mm |
- RS Stock No.:
- 884-6734
- Mfr. Part No.:
- AR20-F02BG-B
- Brand:
- SMC
