- RS Stock No.:
- 849-9978
- Mfr. Part No.:
- IR1020-01BG
- Brand:
- SMC
8 In stock - FREE next working day delivery available
Added
Price Each
£76.25
(exc. VAT)
£91.50
(inc. VAT)
Units | Per unit |
1 - 4 | £76.25 |
5 - 9 | £73.10 |
10 + | £71.17 |
- RS Stock No.:
- 849-9978
- Mfr. Part No.:
- IR1020-01BG
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

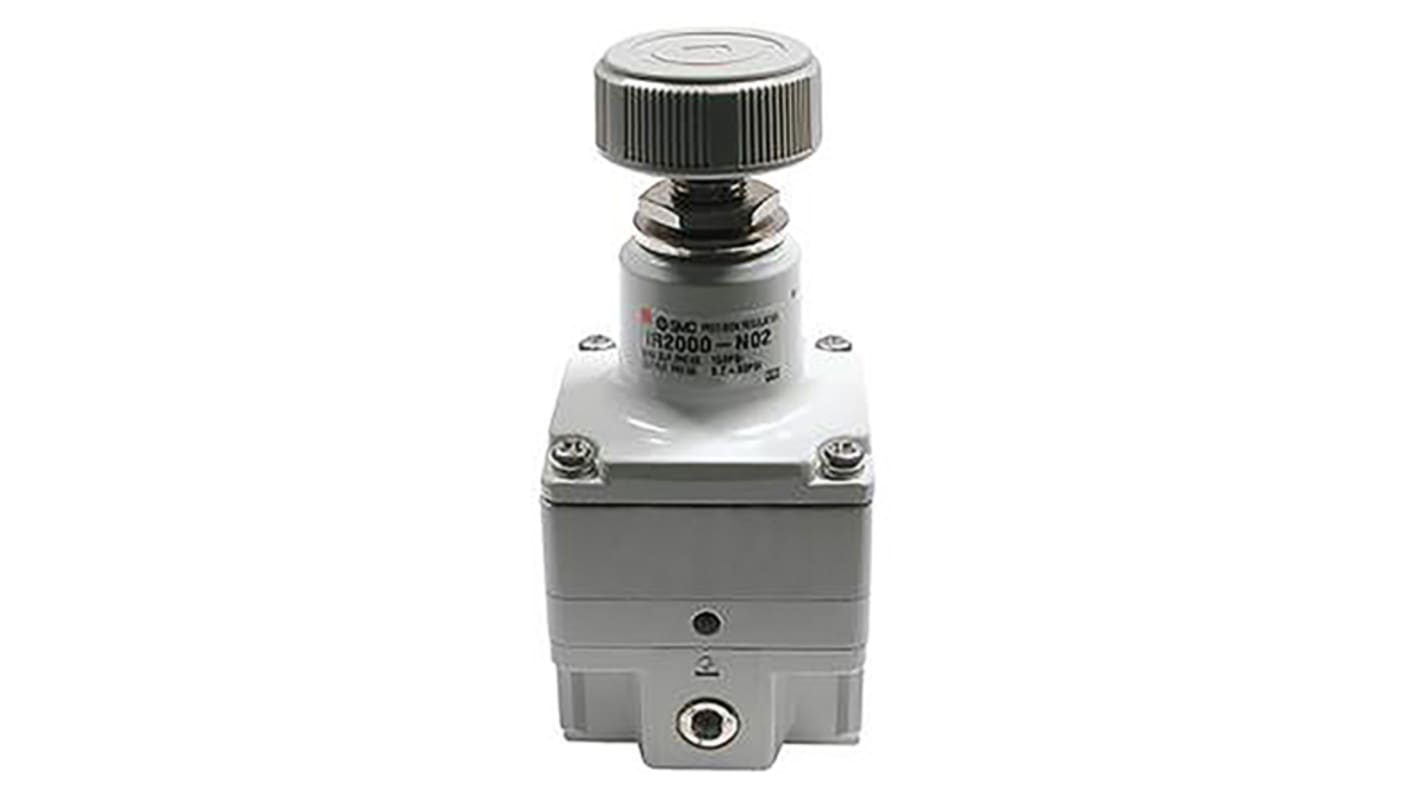

Precision IR Series
Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Note
See separate product range for mounting brackets and accessories
Caution
(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline
Specifications
Attribute | Value |
---|---|
Port Connection | NPT 1/8 |
Maximum Input Pressure | 0.8MPa |
Manufacturer Series | IR |
Pressure Gauge Port Size | Rc 1/8 |
Port Connection Thread Size | 1/8in |
Pressure Gauge Port Thread Size | 1/8in |
Maximum Flow Rate | 4.4L/min |
Integral Check Valve | Without Check Valve |
Port Connection Thread Standard | NPT |
Minimum Operating Temperature | -5°C |
Maximum Operating Temperature | +60°C |
Pressure Gauge Port Thread Standard | Rc |
