SMC R1/8 Pneumatic Regulator - 0.05bar to 2bar, 10bar max. input
- RS Stock No.:
- 235-3099
- Mfr. Part No.:
- IR1000-01BG
- Brand:
- SMC
4 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£76.25
(exc. VAT)
£91.50
(inc. VAT)
| Units | Per unit |
| 1 + | £76.25 |
- RS Stock No.:
- 235-3099
- Mfr. Part No.:
- IR1000-01BG
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

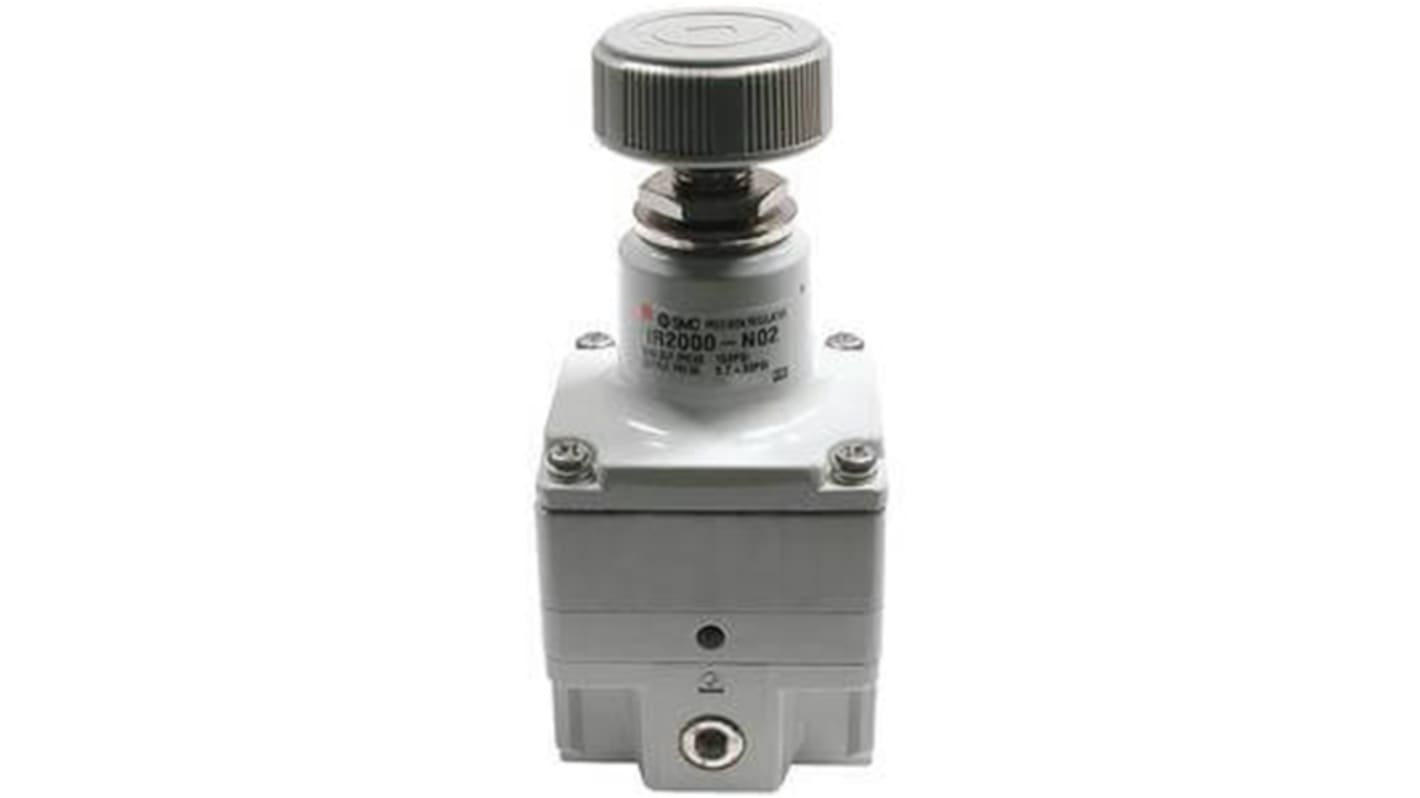

The SMC series IR Precision Regulators are designed to be compact and light weight. The maximum set pressure has been expanded from the conventional 0.7MPa to 0.8MPa. Relief flow has been increased by nearly 5 times (compared to SMC IR201, IR401). The optional bracket and pressure gauge can be mounted on either the front or back of the unit.
Precision regulator
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket & pressure gauge can be mounted on either the front or back
2 air operated models
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket & pressure gauge can be mounted on either the front or back
2 air operated models
Specifications
Attribute | Value |
|---|---|
| Port Connection | R1/8 |
| Maximum Outlet Pressure | 2bar |
| Minimum Outlet Pressure | 0.05bar |
| Maximum Input Pressure | 10bar |
| Manufacturer Series | IR1000 |
| Typical Flow Rate | 4.4L/min |
- RS Stock No.:
- 235-3099
- Mfr. Part No.:
- IR1000-01BG
- Brand:
- SMC
