Festo D Series Pneumatic Regulator G 3/4 Pneumatic G
- RS Stock No.:
- 289-0946
- Mfr. Part No.:
- LRS-3/4-D-7-O-DI-MAXI
- Brand:
- Festo
Subtotal (1 unit)*
£263.56
(exc. VAT)
£316.27
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £263.56 |
*price indicative
- RS Stock No.:
- 289-0946
- Mfr. Part No.:
- LRS-3/4-D-7-O-DI-MAXI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Regulator | |
| Inlet Connection Type | Pneumatic | |
| Outlet Connection Type | Pneumatic | |
| Inlet Connection Size | G 3/4 | |
| Outlet Connection Size | G 3/4 | |
| Series | D | |
| Maximum Operating Pressure | 16 bar | |
| Minimum Operating Temperature | -10°C | |
| Outlet Thread Standard | G | |
| Material | Die Cast Zinc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Regulator | ||
Inlet Connection Type Pneumatic | ||
Outlet Connection Type Pneumatic | ||
Inlet Connection Size G 3/4 | ||
Outlet Connection Size G 3/4 | ||
Series D | ||
Maximum Operating Pressure 16 bar | ||
Minimum Operating Temperature -10°C | ||
Outlet Thread Standard G | ||
Material Die Cast Zinc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- HU

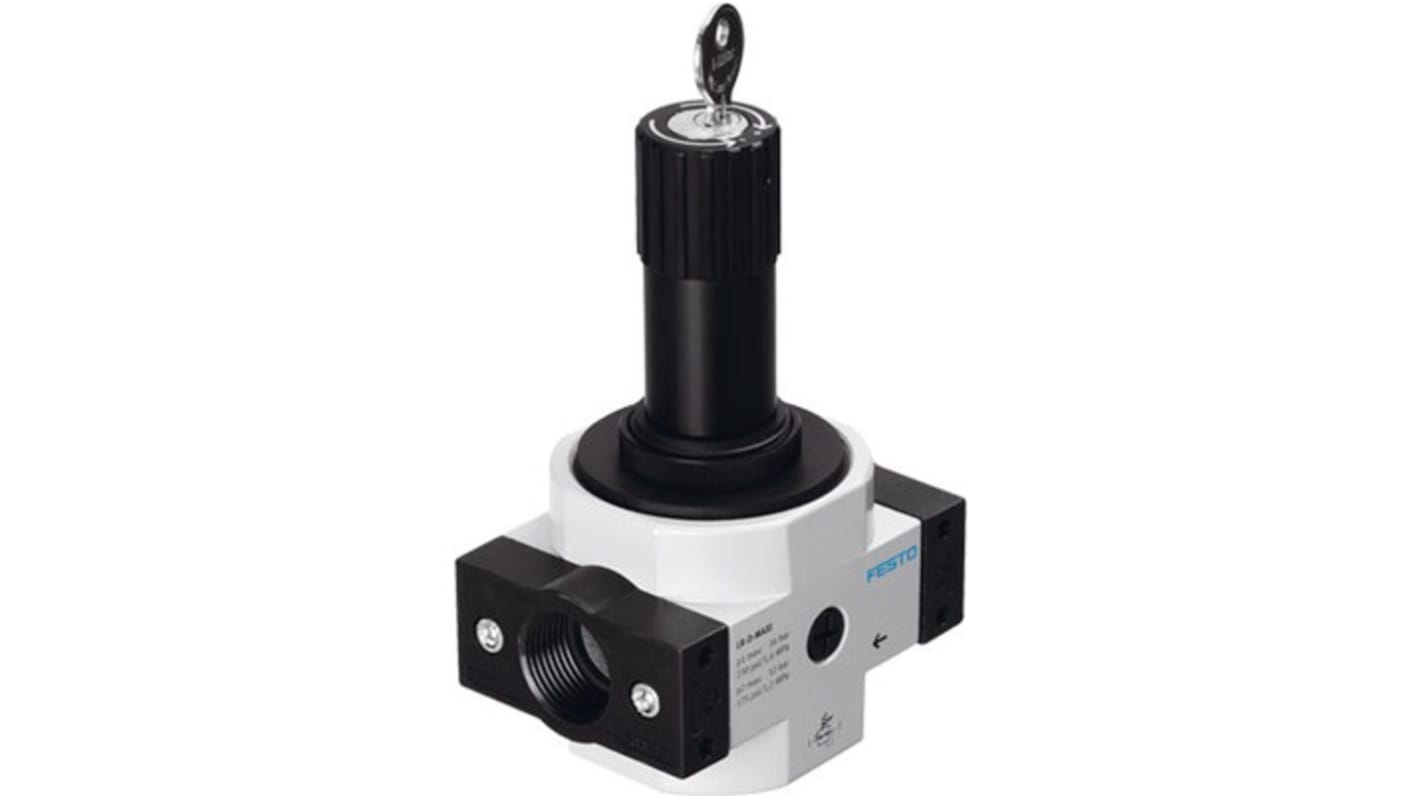

The Festo Pressure regulator offers a pressure regulation range of 0.5 bar to 7 bar. It is designed as a directly actuated diaphragm regulator with an output pressure constant controller function.
Features a rotary knob with detent for actuator lock
Primary pressure compensation and secondary venting
Corrosion resistance class CRC 2
Moderate corrosion stress
