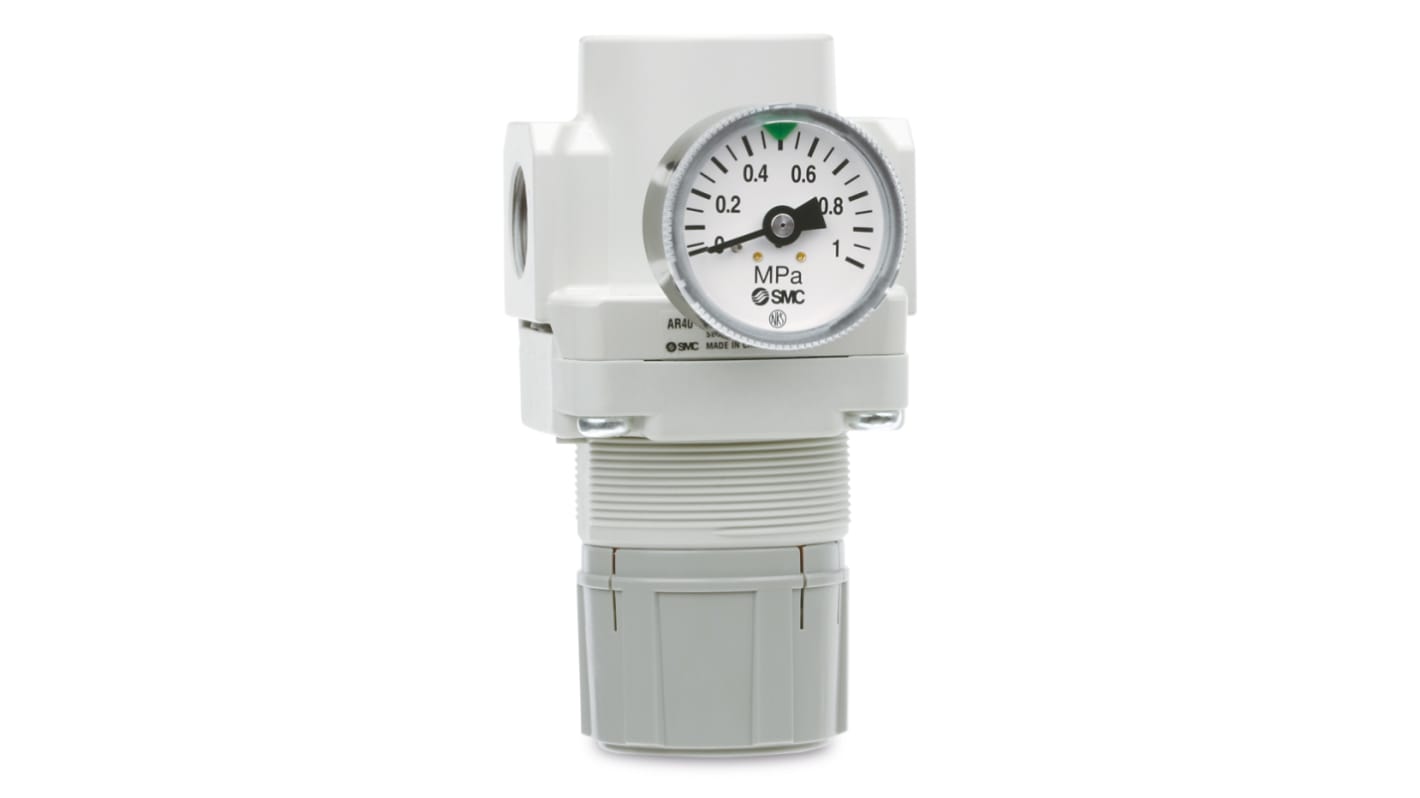

SMC G 1/8 Pneumatic Regulator - 0.05bar to 4bar, 7bar max. input
- RS Stock No.:
- 255-2437
- Mfr. Part No.:
- ARP20-F01H
- Brand:
- SMC
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 255-2437
- Mfr. Part No.:
- ARP20-F01H
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 1/8 | |
| Maximum Outlet Pressure | 4bar | |
| Minimum Outlet Pressure | 0.05bar | |
| Maximum Input Pressure | 7bar | |
| Manufacturer Series | ARP20 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection G 1/8 | ||
Maximum Outlet Pressure 4bar | ||
Minimum Outlet Pressure 0.05bar | ||
Maximum Input Pressure 7bar | ||
Manufacturer Series ARP20 | ||
- COO (Country of Origin):
- JP
The SMC Direct operated precision regulator is with the backflow function it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly.
Sensitivity is within 0.2% F.S
Energy saving, air consumption 80% reduction
Energy saving, air consumption 80% reduction
