SMC G 1/4 Pneumatic Regulator - 0.5bar to 9bar, 10bar max. input
- RS Stock No.:
- 235-3128
- Mfr. Part No.:
- ITV2050-31F2BL3
- Brand:
- SMC
Subtotal (1 unit)*
£533.15
(exc. VAT)
£639.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £533.15 |
*price indicative
- RS Stock No.:
- 235-3128
- Mfr. Part No.:
- ITV2050-31F2BL3
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Port Connection | G 1/4 | |
Maximum Outlet Pressure | 9bar | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Input Pressure | 10bar | |
Manufacturer Series | ITV2050 | |
Typical Flow Rate | 1500L/min | |
Select all | ||
---|---|---|
Brand SMC | ||
Port Connection G 1/4 | ||
Maximum Outlet Pressure 9bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 10bar | ||
Manufacturer Series ITV2050 | ||
Typical Flow Rate 1500L/min | ||
- COO (Country of Origin):
- JP

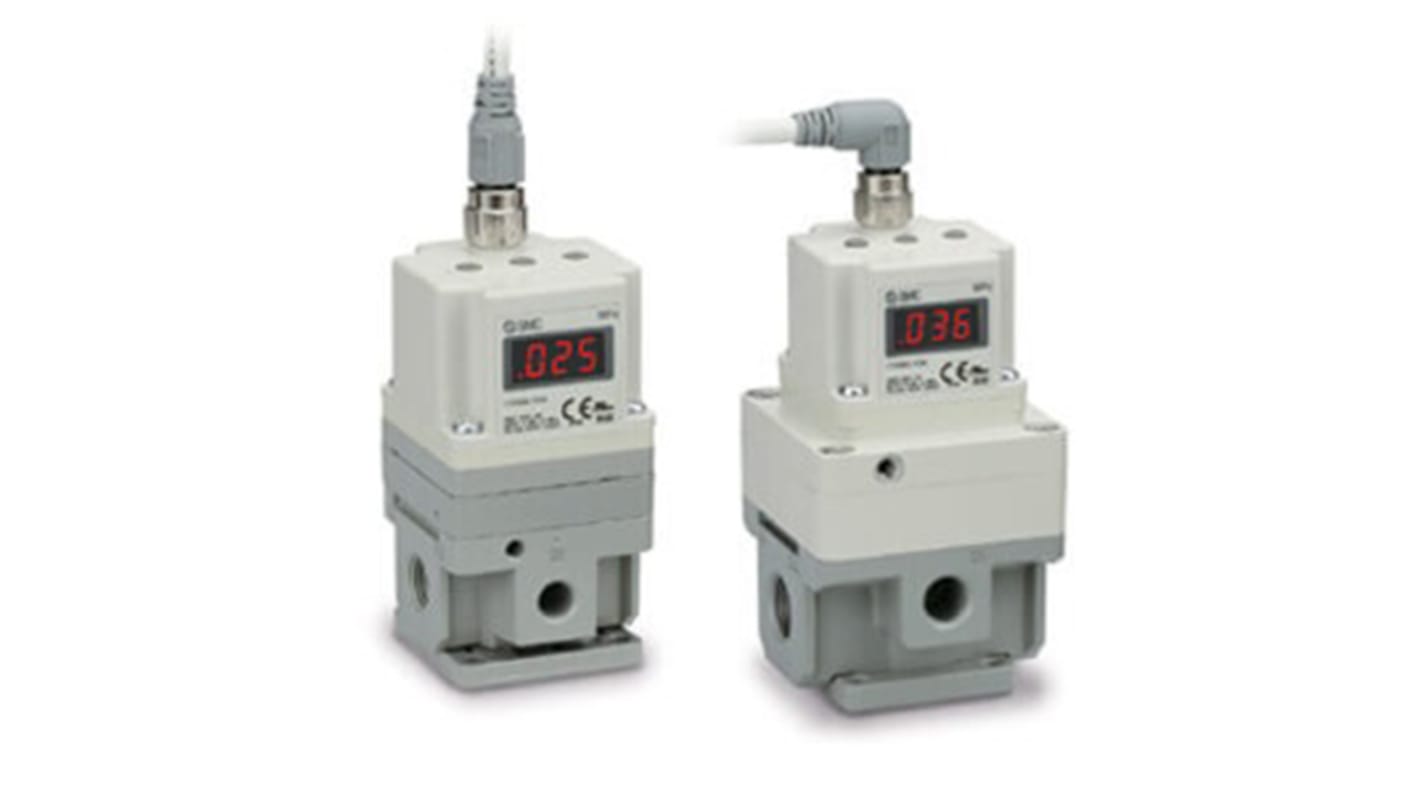

The SMC series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure sleeplessly in proportion to an electric signal. They are light weight in design with a bright and easy to read LED display. The monitor output is available either as analog output or switch output. The ITV series is IP65 equivalent.
Controls air pressure in proportion to an electric signal.
Available in MPa, Kgf/cm², bar, PSI, and kPa units.
Pressure range of 0.005 to 0.9MPa.
Available port sizes 1/4 and 1/8.
Mounting bracket option
Available in MPa, Kgf/cm², bar, PSI, and kPa units.
Pressure range of 0.005 to 0.9MPa.
Available port sizes 1/4 and 1/8.
Mounting bracket option
