Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 1/8 in, 8bar max. input, 542228

View all Pneumatic Regulators

Subtotal (1 unit)*

£723.61

(exc. VAT)

£868.33

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£723.61

*price indicative

RS Stock No.:
203-0519
Mfr. Part No.:
VPPM-6L-L-1-G18-0L6H-V1N-S1
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Connection

G 1/8

Maximum Outlet Pressure

6bar

Minimum Outlet Pressure

0.06bar

Maximum Input Pressure

8bar

Manufacturer Series

VPP

Pressure Gauge Port Size

G 1/8

Port Connection Thread Size

1/8 in

Pressure Gauge Port Thread Size

1/8 in

Typical Flow Rate

900L/min

Port Connection Thread Standard

G

Minimum Operating Temperature

+10°C

Maximum Operating Temperature

+50°C

Overall Width

41.5mm

Model Number p

542228

Overall Height

126.9mm

Overall Dimensions

65.5 x 41.5 x 126.9mm

Overall Length

65.5mm

COO (Country of Origin):
BG

Festo G 1/8 Pneumatic Regulator, 0.06 Bar to 6 Bar - VPP Series - VPPM-6L-L-1-G18-0L6H-V1N-S1

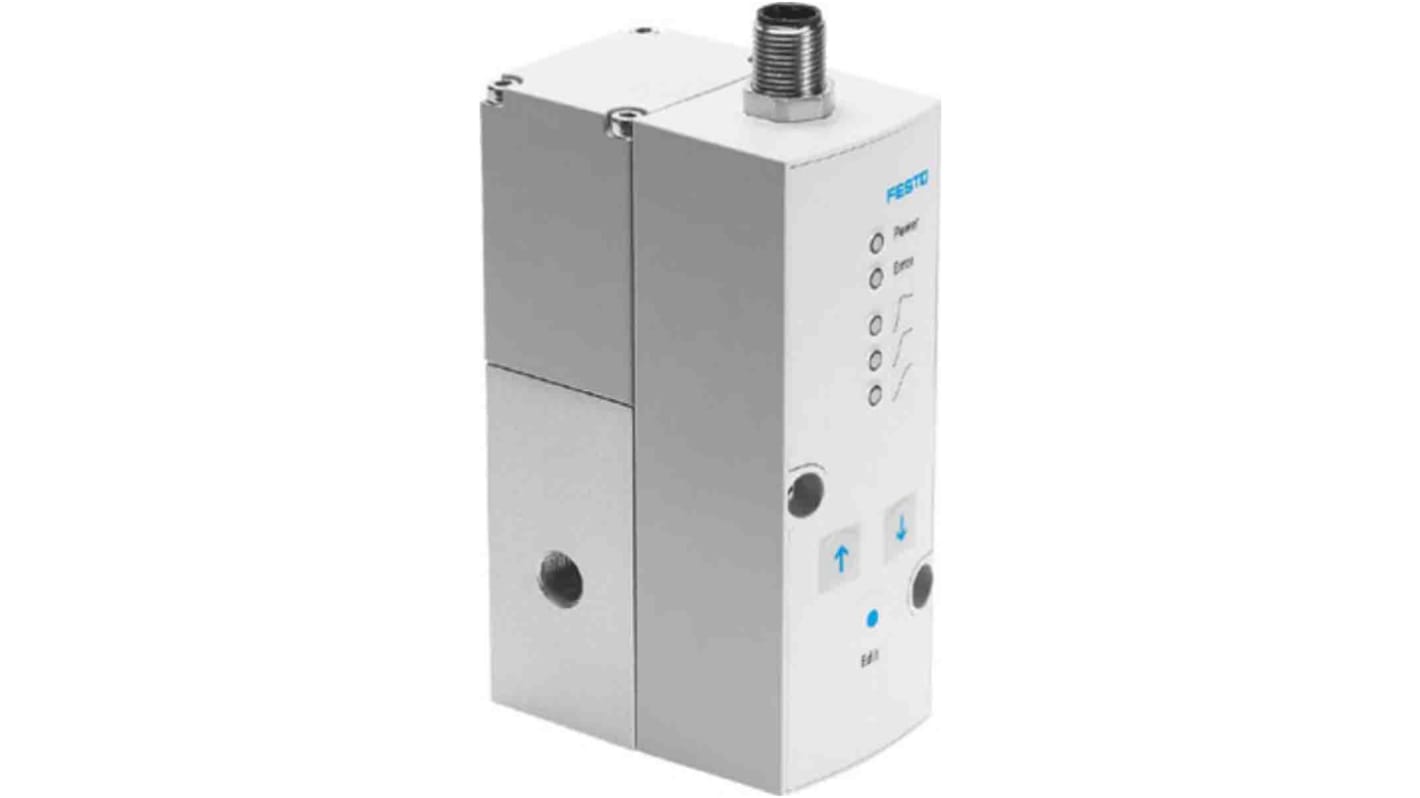

This three-way pneumatic regulator from Festo lets you precisely adjust pressure and preset piston and rotational speeds. An integrated control circuit responds to changes and alters the pressure accordingly. This helps improve efficiency and reduce cycle times by quickly achieving a stable pressure. The unit effectively manages fluctuating temperatures and prevents pressure drifting in response to changing environmental conditions. An IP65 rating means it's protected from dust and water jets.

• Maximum input pressure of 8 bar
• Minimum outlet pressure of 0.06 bar
• Maximum outlet pressure of 6 bar
• Port connection of G 1/8
• M12 plug connection
• Typical flow rate of 900 L/min
• Pilot actuated diaphragm valve
• Electrical actuator
• LED display
• Pressurisation diameter of 6 mm
• Exhaust diameter of 4.5 mm
• Wrought anodised aluminium alloy housing
• Maximum current consumption of 300 mA
• Maximum electrical power consumption of 7 W
• Compressed air temperature range of +10°C to +50°C
• Operating temperature range of 0°C to +60°C
• Weight of 400 g

Range Information


• The Festo range of VPP proportional pressure regulators offers reliable regulation through a two-stage control circuit with multi-sensor control
• These technologically advanced units report the pressure reached as an electrical signal and can also diagnose a specified value that cannot be reached

The Festo VPPM Modular proportional pressure regulator is a 3-way in-line valve design with G1/8 thread connection and two-stage control circuit for stable. The pressure range is up to 6 bar.

Pressurisation - 6 mm
Nominal diameter, exhaust - 4.5 mm
Assembly position - any
