- RS Stock No.:
- 203-0467
- Mfr. Part No.:
- VPPM-6F-L-1-F-0L6H-A4P-C1
- Brand:
- Festo
Not available for guaranteed pre 9am/10am delivery
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each
£588.56
(exc. VAT)
£706.27
(inc. VAT)
Units | Per unit |
---|---|
1 + | £588.56 |
- RS Stock No.:
- 203-0467
- Mfr. Part No.:
- VPPM-6F-L-1-F-0L6H-A4P-C1
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details

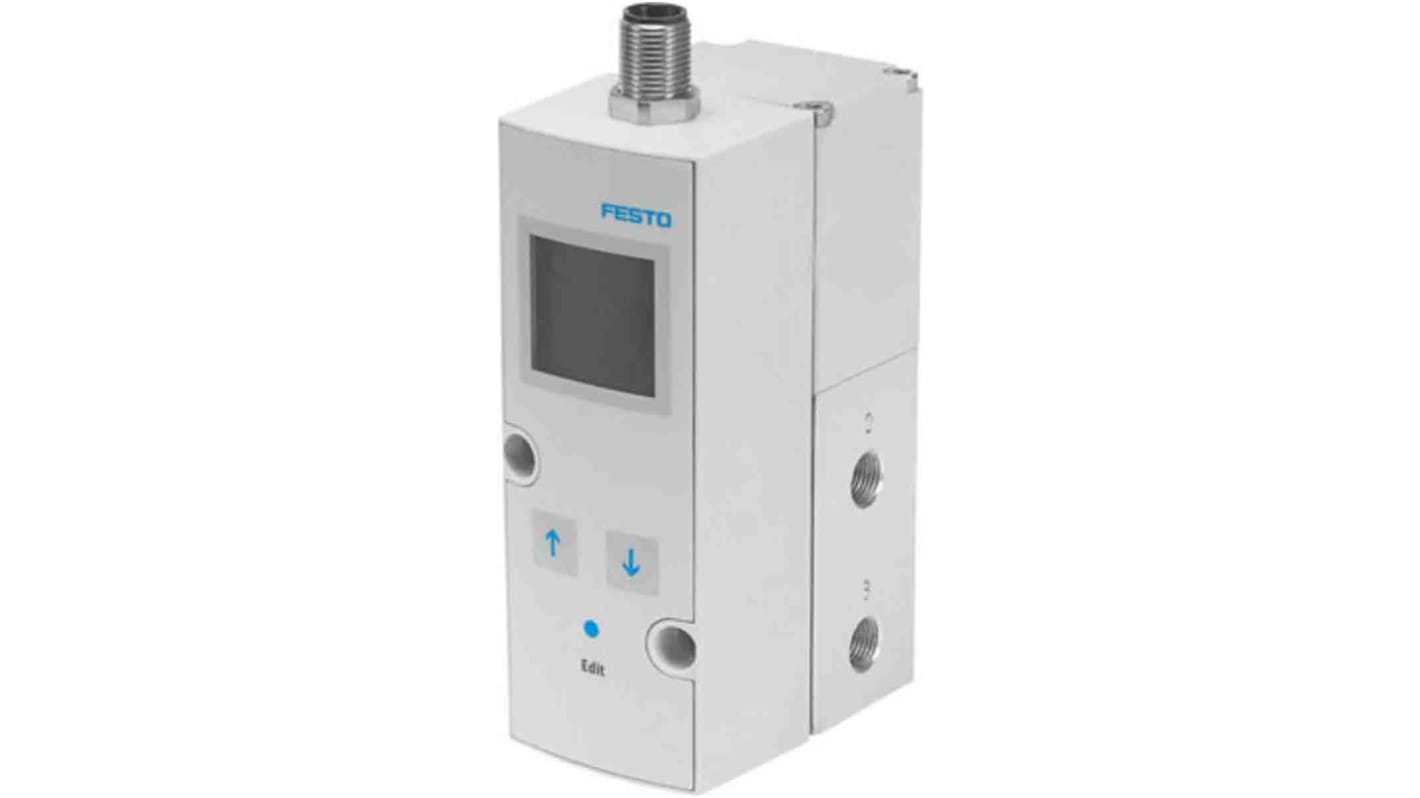

The Festo VPPM Modular proportional pressure regulator is a 3-way in-line valve design with electric set point specification and two-stage control circuit for stable. The pressure range is up to 6 bar.
Pressurisation - 6 mm
Nominal diameter, exhaust - 4.5 mm
Assembly position - any
Nominal diameter, exhaust - 4.5 mm
Assembly position - any
Specifications
Attribute | Value |
---|---|
Maximum Outlet Pressure | 6bar |
Minimum Outlet Pressure | 0.06bar |
Maximum Input Pressure | 8bar |
Manufacturer Series | VPP |
Typical Flow Rate | 900L/min |
Model Number p | 558340 |
