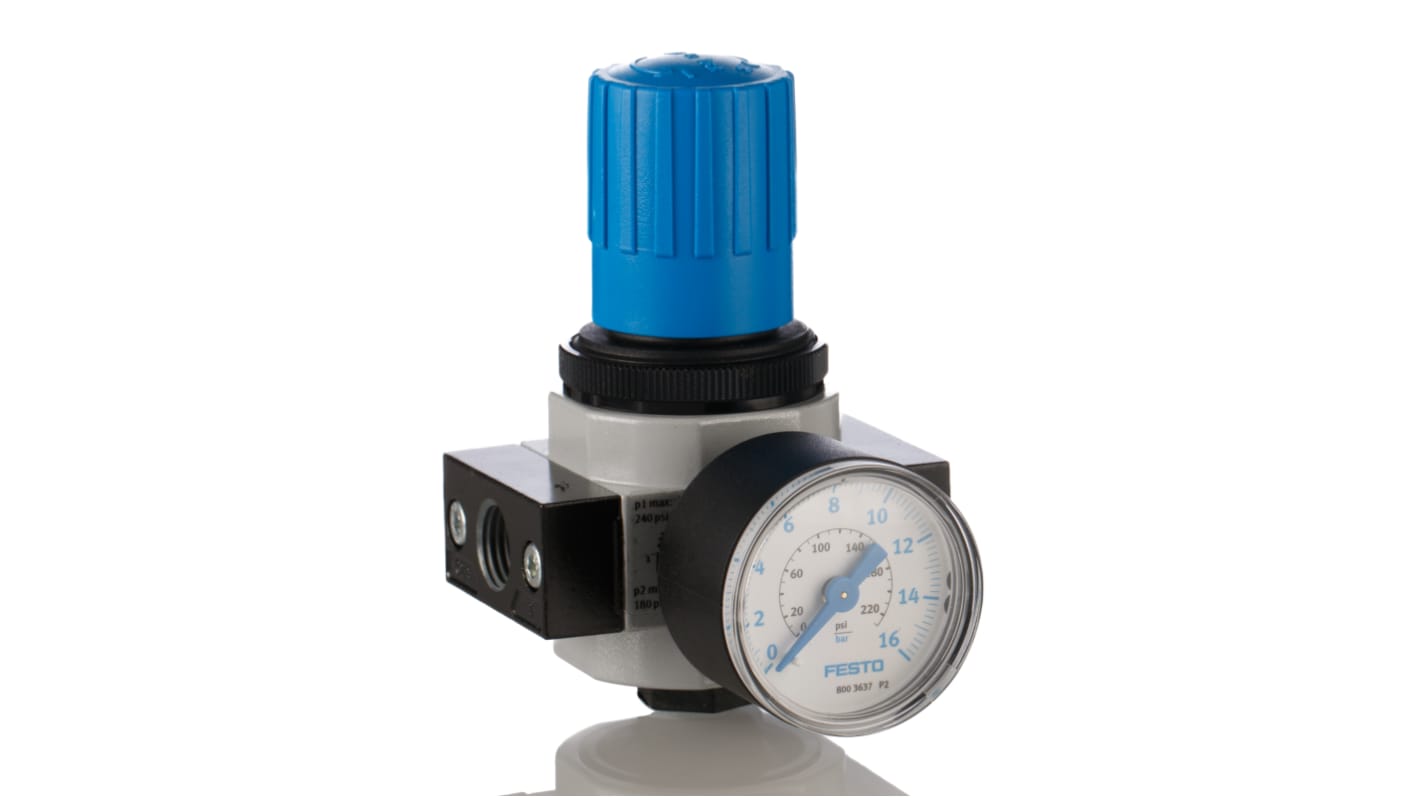

Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 192300
- RS Stock No.:
- 203-0403
- Mfr. Part No.:
- LR-1/4-D-I-MINI
- Brand:
- Festo
Subtotal (1 unit)*
£70.45
(exc. VAT)
£84.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.45 |
*price indicative
- RS Stock No.:
- 203-0403
- Mfr. Part No.:
- LR-1/4-D-I-MINI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Connection | G 1/4 | |
| Maximum Outlet Pressure | 12bar | |
| Minimum Outlet Pressure | 0.5bar | |
| Maximum Input Pressure | 16bar | |
| Manufacturer Series | D | |
| Pressure Gauge Port Size | G 1/4 | |
| Port Connection Thread Size | 1/4 in | |
| Pressure Gauge Port Thread Size | 1/4 in | |
| Typical Flow Rate | 1500L/min | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Overall Height | 95mm | |
| Pressure Gauge Port Thread Standard | G | |
| Overall Dimensions | 64 x 76 x 95mm | |
| Model Number p | 192300 | |
| Overall Length | 64mm | |
| Overall Width | 76mm | |
Select all | ||
|---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Outlet Pressure 12bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 16bar | ||
Manufacturer Series D | ||
Pressure Gauge Port Size G 1/4 | ||
Port Connection Thread Size 1/4 in | ||
Pressure Gauge Port Thread Size 1/4 in | ||
Typical Flow Rate 1500L/min | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Overall Height 95mm | ||
Pressure Gauge Port Thread Standard G | ||
Overall Dimensions 64 x 76 x 95mm | ||
Model Number p 192300 | ||
Overall Length 64mm | ||
Overall Width 76mm | ||
- COO (Country of Origin):
- HU
Festo Pressure Regulator, G1/4 Connection, 0.5 to 12 Bar - LR-1/4-D-I-MINI
Ensure your pneumatic system delivers accurate output air pressures with this pressure regulator from Festo. It has a G1/4 pneumatic port connecting thread and an integrated return flow function to efficiently adjust and control airflow volumes within your system. The directly-controlled diaphragm regulator responds to variations in pressures to control air and fluid flows according to a pneumatic system's set point. Zinc die-casting material makes this component hardy and long-lasting as it resists damage caused by corrosion and abrasion.
• Operating pressure range of 0.5 to 12 for use in heavy-duty applications
• Nitrile rubber (NBR) seals resist chemicals, abrasions and compression to form a secure and reliable sealing solution
• Wide operating temperature range of -10°C to +60°C for use in harsh conditions
• Nitrile rubber (NBR) seals resist chemicals, abrasions and compression to form a secure and reliable sealing solution
• Wide operating temperature range of -10°C to +60°C for use in harsh conditions
Applications
• Industrial gas installations
• Pharmaceutical equipment
• Automotive industry
• Aerospace applications
• Pharmaceutical equipment
• Automotive industry
• Aerospace applications
What should I consider when selecting a pressure-reducing valve?
You should take into account the inlet and outlet pressures of the systems, connection port sizes, flow rates and operating temperatures, as well as size and weight requirements.
What is regulator sensitivity?
Regulator sensitivity relates to how much the downstream pressure needs to change before the regulator decreases or increases the flow.
