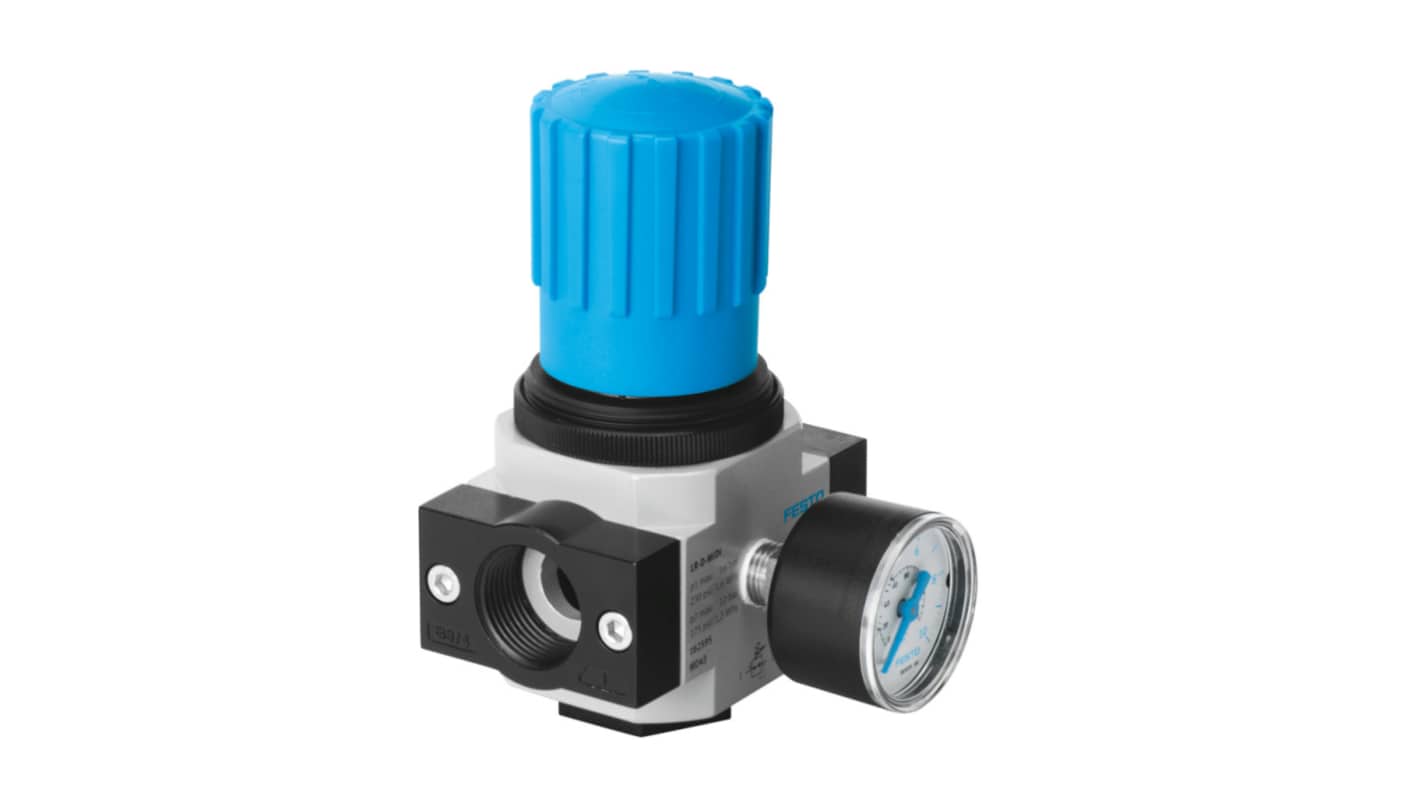

Festo G 3/4 Pneumatic Regulator - 0.5bar to 12bar, 16bar max. input, 192316
- RS Stock No.:
- 203-0360
- Mfr. Part No.:
- LR-3/4-D-I-MIDI
- Brand:
- Festo
Subtotal (1 unit)*
£106.72
(exc. VAT)
£128.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 21 November 2025
- Plus 1 unit(s) shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £106.72 |
*price indicative
- RS Stock No.:
- 203-0360
- Mfr. Part No.:
- LR-3/4-D-I-MIDI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Port Connection | G 3/4 | |
Maximum Outlet Pressure | 12bar | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Input Pressure | 16bar | |
Manufacturer Series | D | |
Typical Flow Rate | 3500L/min | |
Model Number p | 192316 | |
Select all | ||
---|---|---|
Brand Festo | ||
Port Connection G 3/4 | ||
Maximum Outlet Pressure 12bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 16bar | ||
Manufacturer Series D | ||
Typical Flow Rate 3500L/min | ||
Model Number p 192316 | ||
- COO (Country of Origin):
- HU
Festo Series D Pneumatic Regulator, 3/4in Port Connection, 12 Bar Maximum Outlet Pressure - LR-3/4-D-I-MIDI, Numeric Part Number:192316
This pneumatic regulator is designed for regulating compressed air and inert gases, ensuring consistent output pressure for various applications. It features overall dimensions of 85mm in length, 95mm in width, and 135mm in height, made from durable die-cast zinc. With a robust design, this component maintains air pressure within a range of 0.5 bar to 12 bar, accommodating maximum input pressures of 16 bar.
Features & Benefits
• Directly actuated diaphragm design ensures precise air pressure control
• Adjustable pressure regulator accommodates various system pressures
• High flow rate capacity of up to 3500 L/min for efficient operation
• Integrated pressure gauge provides real-time monitoring of output
• Lubricated operation capability supports diverse operational needs
• VDMA24364-B1/B2-L conformity maintains compliance in fluid control devices
• Adjustable pressure regulator accommodates various system pressures
• High flow rate capacity of up to 3500 L/min for efficient operation
• Integrated pressure gauge provides real-time monitoring of output
• Lubricated operation capability supports diverse operational needs
• VDMA24364-B1/B2-L conformity maintains compliance in fluid control devices
Applications
• Used for air pressure regulation in automation systems
• Ideal for regulating air in industrial machinery
• Suitable for requiring consistent output pressure control
• Effective in fluid control for electrical and mechanical industries
• Ideal for regulating air in industrial machinery
• Suitable for requiring consistent output pressure control
• Effective in fluid control for electrical and mechanical industries
What are the environmental temperature limits for operation?
The regulator can operate effectively within a temperature range of -10°C to +60°C, ensuring reliability in various climates.
How does the actuator mechanism enhance functionality?
The rotary knob with detent allows for easy adjustments, providing users with direct control over the output pressure settings.
What materials are used in construction and why are they important?
The sub-base and housing are made from die-cast zinc, ensuring durability and longevity, whilst the NBR seals provide reliable sealing under various conditions.
What type of media can be used with this regulator?
It is compatible with compressed air and inert gases, ensuring flexibility for different industrial applications while adhering to air purity standards.
How does the maximum pressure hysteresis affect performance?
With a maximum pressure hysteresis of 0.02 MPa, this regulator maintains stable output pressure, minimising fluctuations during operation for optimal system performance.
