- RS Stock No.:
- 202-2092
- Mfr. Part No.:
- LRB-3/8-D-O-K3-MINI
- Brand:
- Festo
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£223.92
(exc. VAT)
£268.70
(inc. VAT)
Units | Per unit |
1 + | £223.92 |
- RS Stock No.:
- 202-2092
- Mfr. Part No.:
- LRB-3/8-D-O-K3-MINI
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

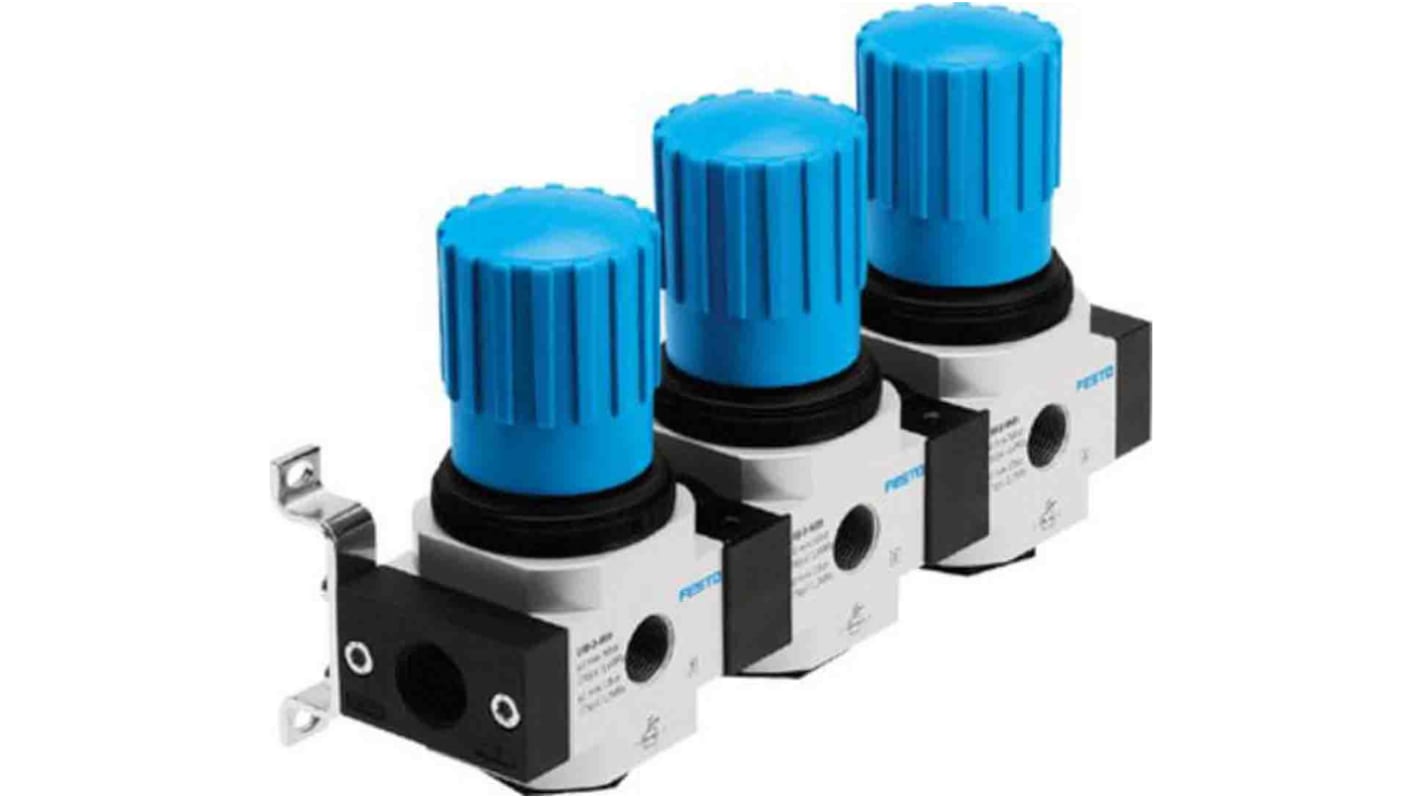

The Festo D series MINI size pressure regulator combination has a G3/8 pneumatic port connecting thread manifold with 3 pressure regulators. It is a directly-controlled diaphragm regulator design structure without pressure gauge. The regulator has a worki
Actuator lock - rotary knob with lock
Assembly position - any
Nominal flow rate - 1,600 l/min
Assembly position - any
Nominal flow rate - 1,600 l/min
Specifications
Attribute | Value |
---|---|
Port Connection | G 3/8 |
Maximum Outlet Pressure | 12bar |
Minimum Outlet Pressure | 0.5bar |
Maximum Input Pressure | 16bar |
Manufacturer Series | D |
Typical Flow Rate | 1600L/min |
Model Number p | 528971 |
