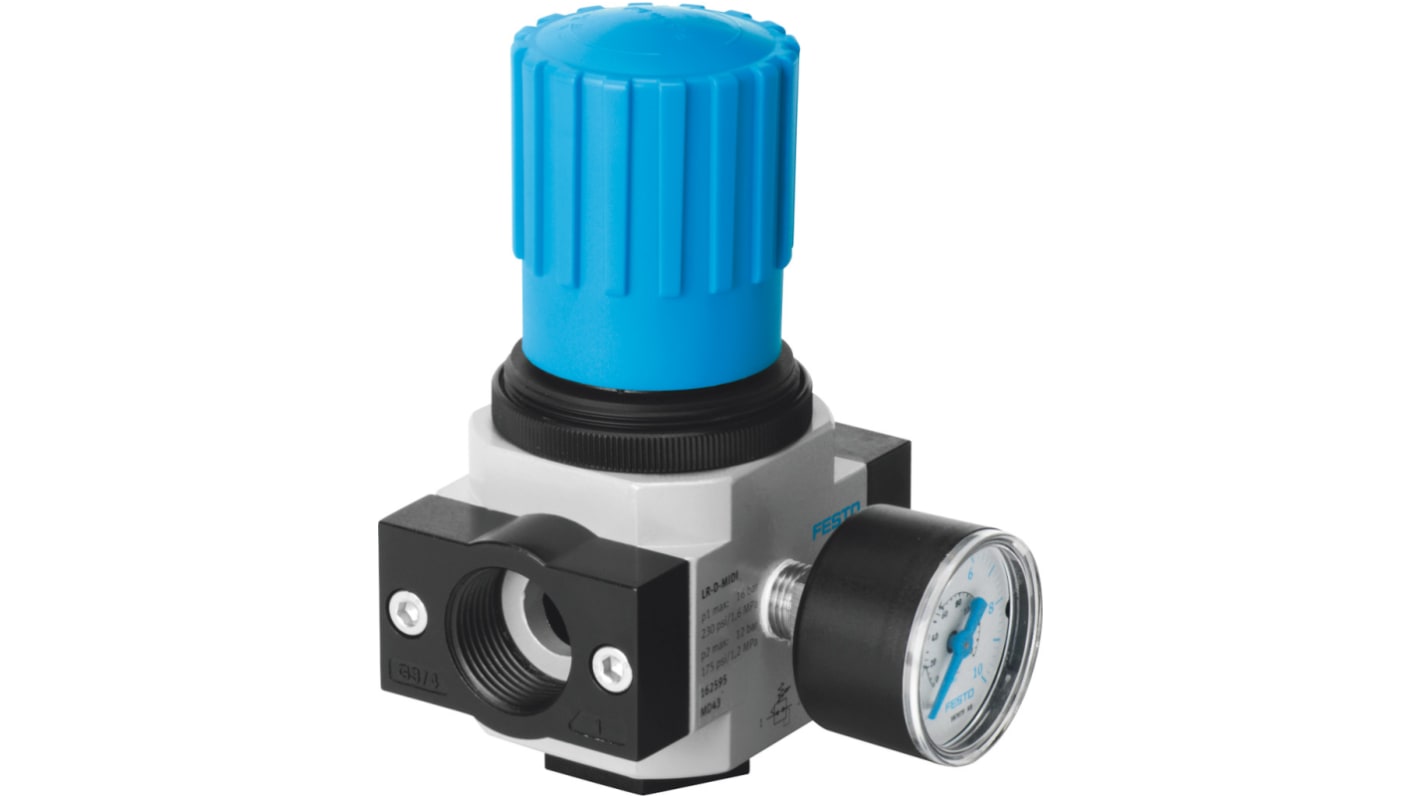

Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 16bar max. input, 162583
- RS Stock No.:
- 202-2084
- Distrelec Article No.:
- 304-21-651
- Mfr. Part No.:
- LR-1/4-D-7-MINI
- Brand:
- Festo
Subtotal (1 unit)*
£65.53
(exc. VAT)
£78.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.53 |
*price indicative
- RS Stock No.:
- 202-2084
- Distrelec Article No.:
- 304-21-651
- Mfr. Part No.:
- LR-1/4-D-7-MINI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Port Connection | G 1/4 | |
Maximum Outlet Pressure | 7bar | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Input Pressure | 16bar | |
Manufacturer Series | D | |
Pressure Gauge Port Size | G 1/4 | |
Port Connection Thread Size | 1/4 in | |
Pressure Gauge Port Thread Size | 1/4 in | |
Typical Flow Rate | 1600L/min | |
Port Connection Thread Standard | G | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Overall Length | 76mm | |
Proof Pressure | 0.2bar | |
Overall Width | 64mm | |
Overall Dimensions | 76 x 64 x 95mm | |
Model Number p | 162583 | |
Overall Height | 95mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Outlet Pressure 7bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 16bar | ||
Manufacturer Series D | ||
Pressure Gauge Port Size G 1/4 | ||
Port Connection Thread Size 1/4 in | ||
Pressure Gauge Port Thread Size 1/4 in | ||
Typical Flow Rate 1600L/min | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Overall Length 76mm | ||
Proof Pressure 0.2bar | ||
Overall Width 64mm | ||
Overall Dimensions 76 x 64 x 95mm | ||
Model Number p 162583 | ||
Overall Height 95mm | ||
- COO (Country of Origin):
- HU
Festo Series D Pneumatic Regulator, 16 bar Maximum Input Pressure, 1600 L/min Typical Flow Rate - LR-1/4-D-7-MINI
This pneumatic regulator from Festo offers reliable pressure control for a wide range of industrial applications. With a maximum input pressure of 16 bar and maximum outlet pressure of 7 bar, this regulator ensures precise and consistent performance. Its compact design and versatile port connections make it a valuable addition to any pneumatic system.
Features & Benefits
• The actuator lock provides easy adjustments while keeping pressure settings secure
• The directly-controlled diaphragm regulator allows for efficient and accurate pressure control for optimal system performance
• The controller function ensures that the output pressure remains constant, leading to consistent operation of connected pneumatic devices
• The pressure gauge, with a pressure gauge port, offers real-time pressure readings for better monitoring and control
• The front panel installation options allow for flexible installation in various system configurations
• The directly-controlled diaphragm regulator allows for efficient and accurate pressure control for optimal system performance
• The controller function ensures that the output pressure remains constant, leading to consistent operation of connected pneumatic devices
• The pressure gauge, with a pressure gauge port, offers real-time pressure readings for better monitoring and control
• The front panel installation options allow for flexible installation in various system configurations
Applications
• Suitable for use in applications where precise pressure control is essential, such as in manufacturing processes
• Can be utilised in systems requiring high-pressure operations, thanks to its maximum input pressure capabilities
• Can be utilised in systems requiring high-pressure operations, thanks to its maximum input pressure capabilities
Can it be used in systems with high-pressure requirements?
Yes, this pneumatic regulator can handle a maximum input pressure of 16 bar, making it suitable for high-pressure applications.
Will it provide accurate pressure control for industrial settings?
Yes, it features a directly-controlled diaphragm design for precise pressure regulation in various industrial environments.
Is this regulator compatible with different pneumatic system configurations?
Yes, the front panel installation option allows for easy integration into different system setups for enhanced versatility.
