Festo G 1/8 Pneumatic Regulator - 0.5bar to 12bar, 16bar max. input, 159627
- RS Stock No.:
- 202-2075
- Mfr. Part No.:
- LR-1-D-MAXI
- Brand:
- Festo
Subtotal (1 unit)*
£203.95
(exc. VAT)
£244.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £203.95 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£246.56
(exc. VAT)
£295.87
(inc. VAT)
- RS Stock No.:
- 202-2075
- Mfr. Part No.:
- LR-1-D-MAXI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Port Connection | G 1/8 | |
Maximum Outlet Pressure | 12bar | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Input Pressure | 16bar | |
Manufacturer Series | D | |
Typical Flow Rate | 11500L/min | |
Minimum Operating Temperature | +10°C | |
Maximum Operating Temperature | +60°C | |
Proof Pressure | 0.4bar | |
Model Number p | 159627 | |
Select all | ||
---|---|---|
Brand Festo | ||
Port Connection G 1/8 | ||
Maximum Outlet Pressure 12bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 16bar | ||
Manufacturer Series D | ||
Typical Flow Rate 11500L/min | ||
Minimum Operating Temperature +10°C | ||
Maximum Operating Temperature +60°C | ||
Proof Pressure 0.4bar | ||
Model Number p 159627 | ||
- COO (Country of Origin):
- HU

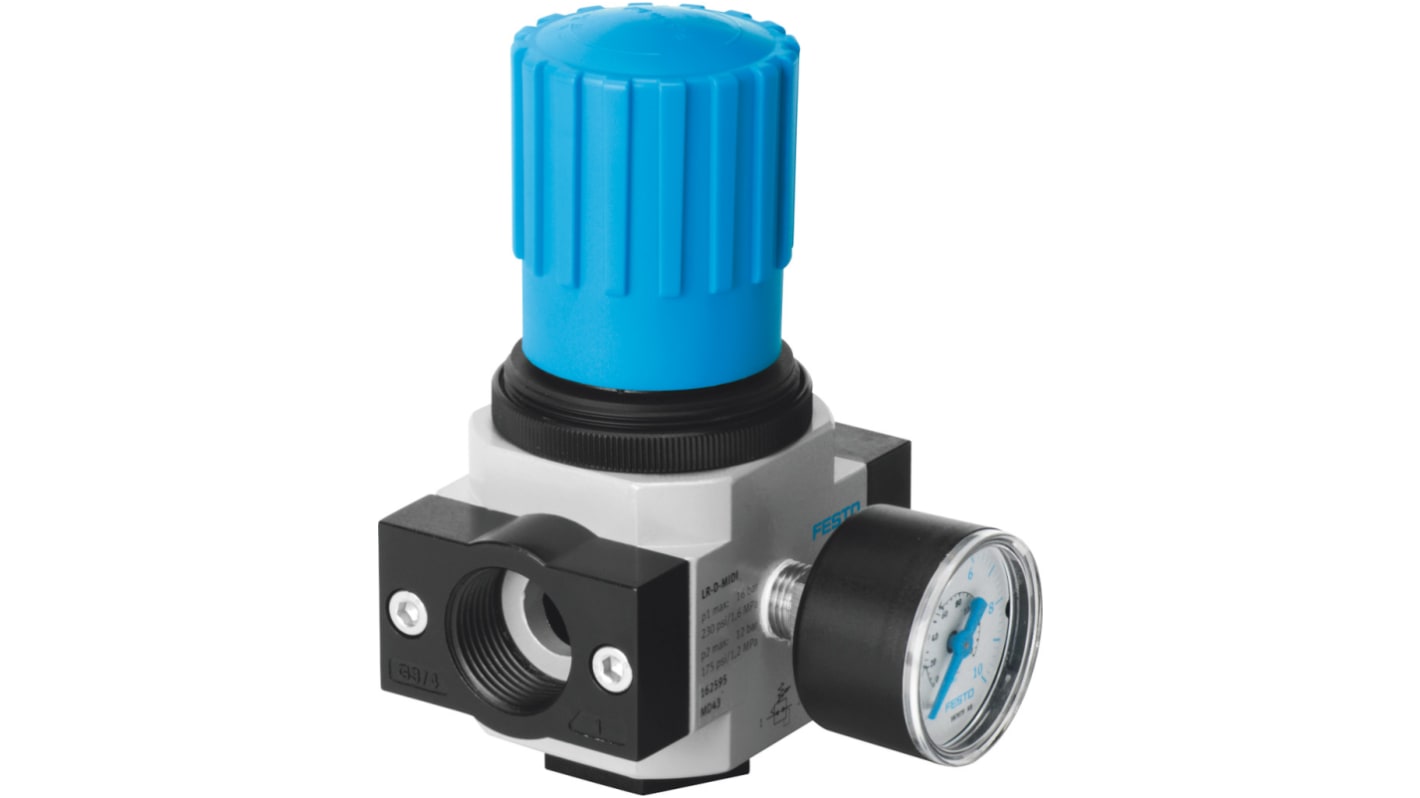

Festo Series D Pneumatic Regulator, 16 bar Maximum Input Pressure, G 1/8 Port Connection - LR-1-D-MAXI
This pneumatic regulator by Festo is a precision control device with a maximum input pressure of 16 bar and maximum outlet pressure of 12 bar. It offers high flow rate regulation and belongs to the D series. It ensures accurate pneumatic control in various applications.
Features & Benefits
• The size of the actuator is maxi, indicating it is larger in size compared to other variants.
• It features a rotary knob with a lock mechanism for actuator locking, providing secure and reliable control over the actuator's operation.
• The controller function is set to maintain a constant output pressure, ensuring stability and consistency in pressure output.
• The pressure regulation range of the actuator spans from 0.5 to 12 bar, allowing for precise adjustment and control over the pressure levels within this range.
• The standard nominal flow rate of the actuator is 11,500 liters per minute, indicating the maximum flow rate under standard operating conditions, providing high efficiency and performance.
• It features a rotary knob with a lock mechanism for actuator locking, providing secure and reliable control over the actuator's operation.
• The controller function is set to maintain a constant output pressure, ensuring stability and consistency in pressure output.
• The pressure regulation range of the actuator spans from 0.5 to 12 bar, allowing for precise adjustment and control over the pressure levels within this range.
• The standard nominal flow rate of the actuator is 11,500 liters per minute, indicating the maximum flow rate under standard operating conditions, providing high efficiency and performance.
Applications
• Precise pressure control in automation systems
• Effective pneumatic regulation in electronics industry
• Reliable operation in mechanical equipment
• Suitable for applications requiring precision control
• Ideal for systems needing high flow rate regulation
• Effective pneumatic regulation in electronics industry
• Reliable operation in mechanical equipment
• Suitable for applications requiring precision control
• Ideal for systems needing high flow rate regulation
Can it regulate pressure accurately?
Yes, this pneumatic regulator can maintain precise pressure control with a pressure regulation range from 0.5 to 12 bar.
Is it suitable for high flow rate applications?
Yes, it is designed to handle a standard nominal flow rate of 11,500 l/min, making it ideal for high flow rate requirements.
Will it work in various industries?
Yes, this precision pneumatic regulator is versatile and can be used in automation, electronics, electrical, and mechanical industries.
Does it require lubricated operation?
Lubricated operation is possible with this regulator, but is subsequently required for further operation.
Can it handle different ambient temperatures?
Yes, this regulator can operate effectively in temperatures ranging from -10 to 60 °C.
