Festo G 1/8 Pneumatic Regulator - 0.5bar to 12bar, 14bar max. input, 529426
- RS Stock No.:
- 202-2065
- Mfr. Part No.:
- MS4-LR-1/8-D7-AS-Z
- Brand:
- Festo
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£44.38
(exc. VAT)
£53.26
(inc. VAT)
| Units | Per unit |
| 1 + | £44.38 |
- RS Stock No.:
- 202-2065
- Mfr. Part No.:
- MS4-LR-1/8-D7-AS-Z
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

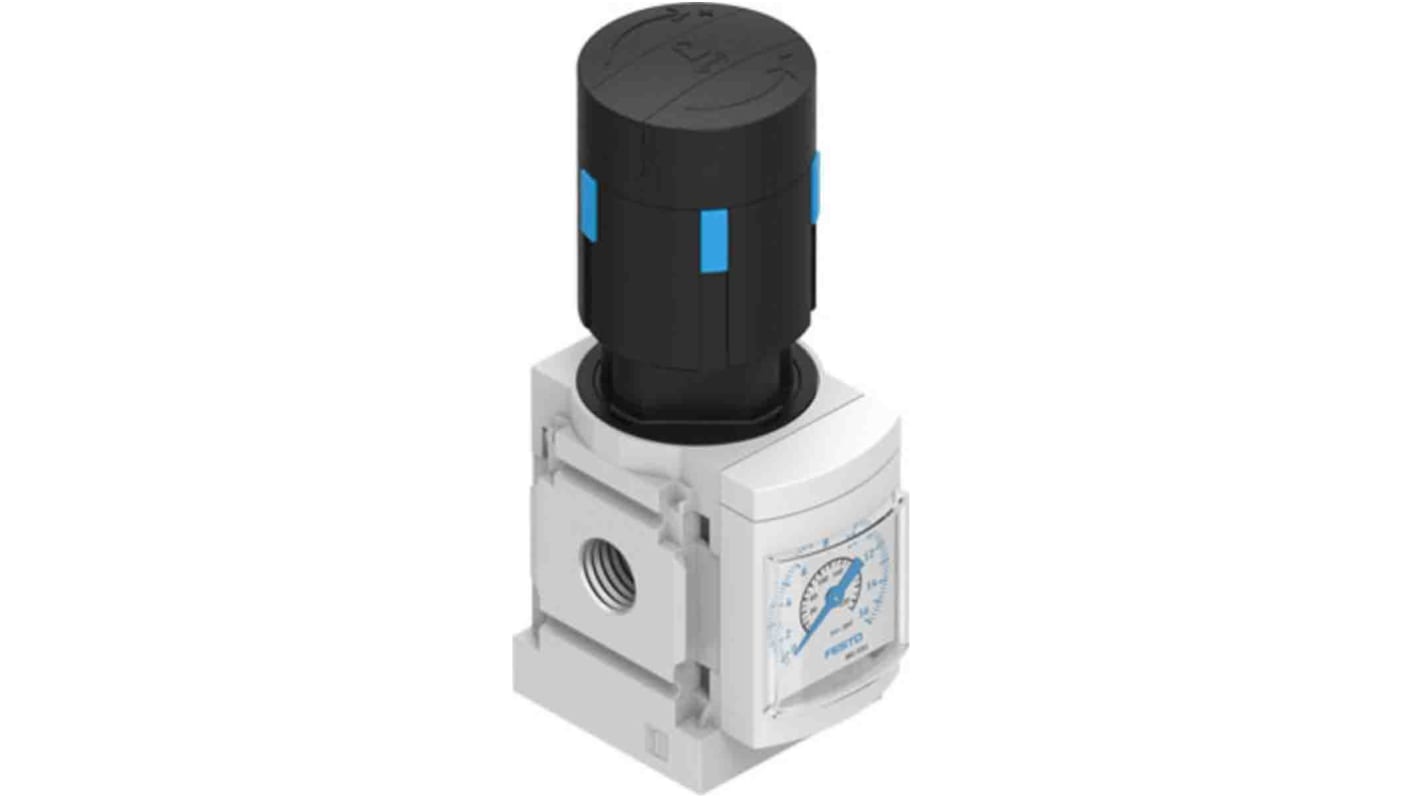

The Festo MS series pressure regulator has a G1/8 pneumatic port connecting thread with lockable regulator head. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 12 bar.
Direction of flow - from right to left
Assembly position - any
Size - 4
Assembly position - any
Size - 4
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 1/8 |
| Maximum Outlet Pressure | 12bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 14bar |
| Manufacturer Series | MS |
| Typical Flow Rate | 1150L/min |
| Model Number p | 529426 |
