Festo G 1/4 Pneumatic Regulator - 0.3bar to 7bar, 1/4in, 14bar max. input, 529417

View all Pneumatic Regulators
Save 8% when you buy 10 units

Subtotal (1 unit)*

£46.08

(exc. VAT)

£55.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 56 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
  • Plus 43 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£46.08
5 - 9£44.24
10 +£42.39

*price indicative

RS Stock No.:
121-5659
Mfr. Part No.:
MS4-LR-1/4-D6-AS
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Connection

G 1/4

Maximum Outlet Pressure

7bar

Minimum Outlet Pressure

0.3bar

Maximum Input Pressure

14bar

Manufacturer Series

MS-LR

Pressure Gauge Port Size

G 1/4

Port Connection Thread Size

1/4in

Pressure Gauge Port Thread Size

1/4in

Maximum Flow Rate

7500L/min

Typical Flow Rate

1800L/min

Port Connection Thread Standard

G

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+60°C

Overall Height

117.5mm

Pressure Gauge Port Thread Standard

G

Model Number p

529417

Overall Dimensions

40 x 57 x 117.5mm

Overall Length

40mm

Overall Width

57mm

COO (Country of Origin):
HU

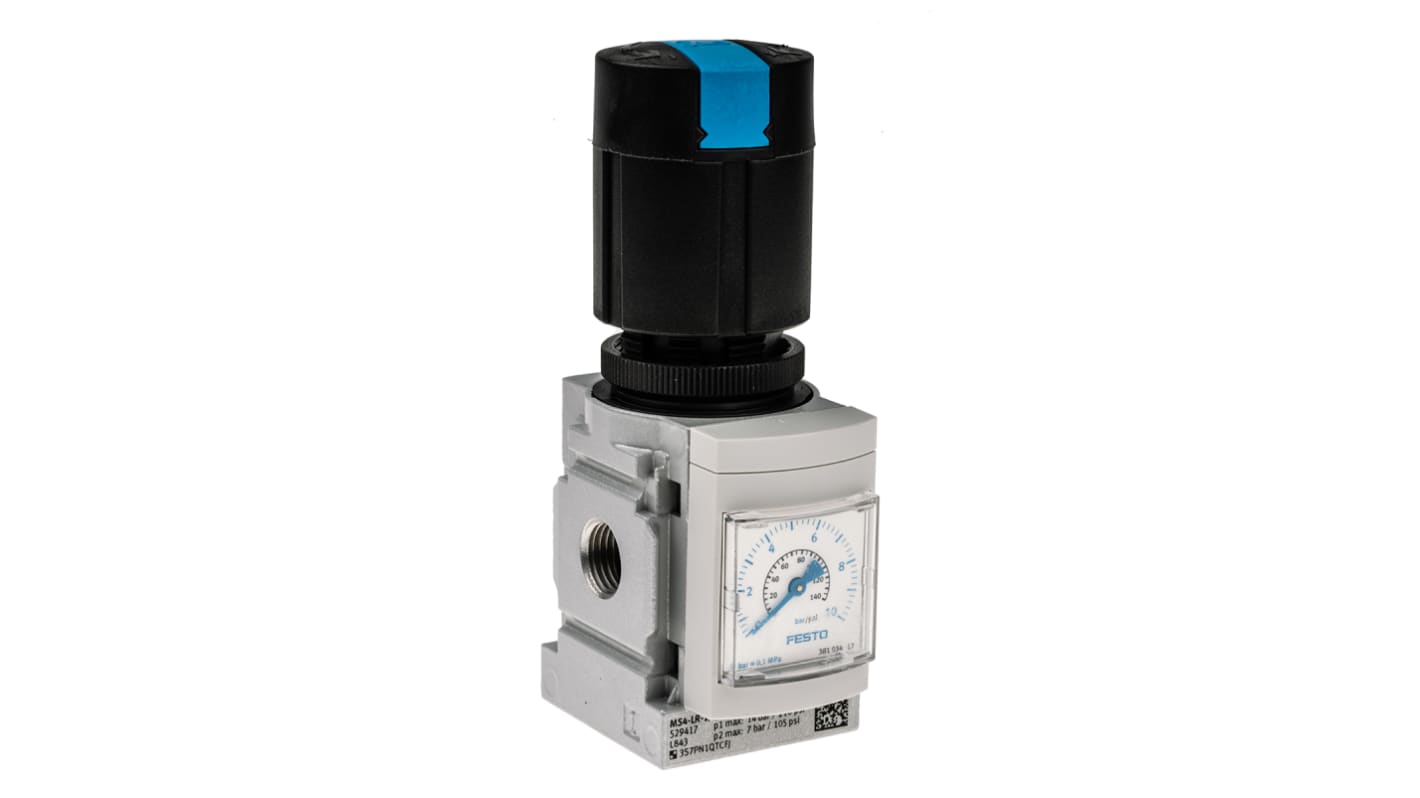

Festo Pneumatic Regulator, G1/4 Port Connection, 7 Bar Maximum Input Pressure - MS4-LR-1/4-D6-AS


Are you in need of a way to maintain the output air pressure of your pneumatic compressor? This Festo pneumatic regulator automatically shuts off the airflow when the set pressure is reached to keep it at the correct level for your setup. It has a G1/4 threaded end that tightens in place so the connected pipe remains secure, even in vibrating systems. With an operating temperature range between -10°C and +60°C, this regulator is suitable for use in harsh industrial environments.

• Up to 7 bar input pressure for receiving air from low-pressure systems
• Typical flow rate of 1800L/min (litres per minute), ensuring your equipment has maximum flow capability
• Suitable for front panel mounting or in-line installation for versatile setup options

Applications


• Heating furnaces
• Gas grills
• Medical respirators
• Dental equipment

What's this pneumatic regulator made of?


This pneumatic regulator has a die-cast aluminium housing material to prevent corrosion wear. Its seals are made from NBR (nitrile rubber) to insulate the regulator against leaks. The control panel is made from PA and POM (polyoxymethylene), which have high-tensile strength and remain rigid under pressure.
