MPN

SMC 2 in G Pneumatic Regulator - 1 Mpa, VEX1933-20F, M5 x 0.8 VEX

Subtotal (1 unit)*

£699.07

(exc. VAT)

£838.88

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£699.07

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Port Size	2 in G
	Product Type	Pneumatic Regulator
	Series	VEX
	Pressure Gauge Port Size	M5 x 0.8
	Body Material	Aluminium Alloy
	Overall Length	179.5mm
	Maximum Operating Pressure	1 Mpa
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	60°C
	Overall Width	80mm
	Standards/Approvals	RoHS, JIS B 8372
	Pressure Setting Range	0.05 to 0.9 Mpa

	Select all
	Brand SMC
	Port Size 2 in G
	Product Type Pneumatic Regulator
	Series VEX
	Pressure Gauge Port Size M5 x 0.8
	Body Material Aluminium Alloy
	Overall Length 179.5mm
	Maximum Operating Pressure 1 Mpa
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 60°C
	Overall Width 80mm
	Standards/Approvals RoHS, JIS B 8372
	Pressure Setting Range 0.05 to 0.9 Mpa

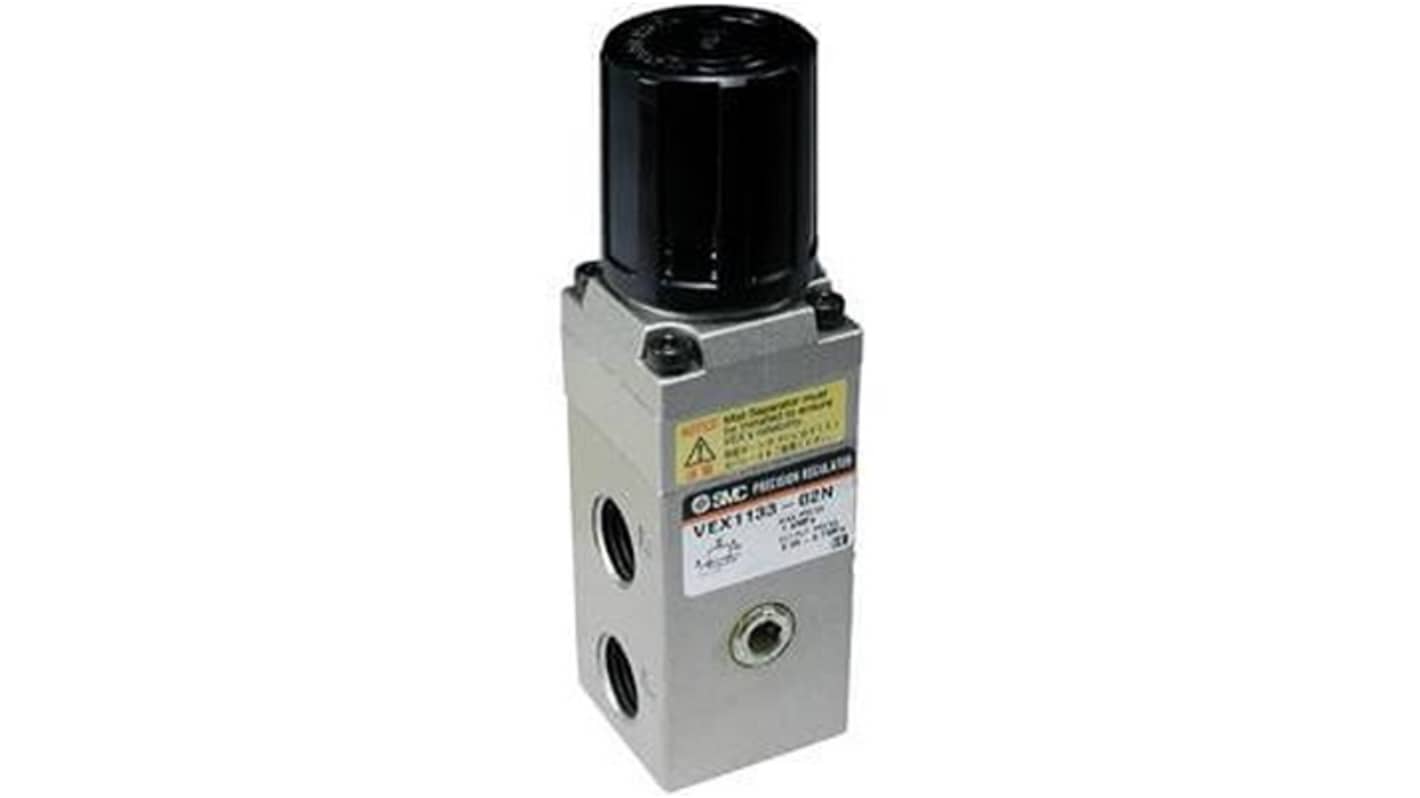

The SMC VEX1_33 is a robust precision regulator from the heavy-duty regulator series. It offers both in-line and base mounting options.

Test pressure 1.5 MPa

Ambient temperature 0 to 60°C
