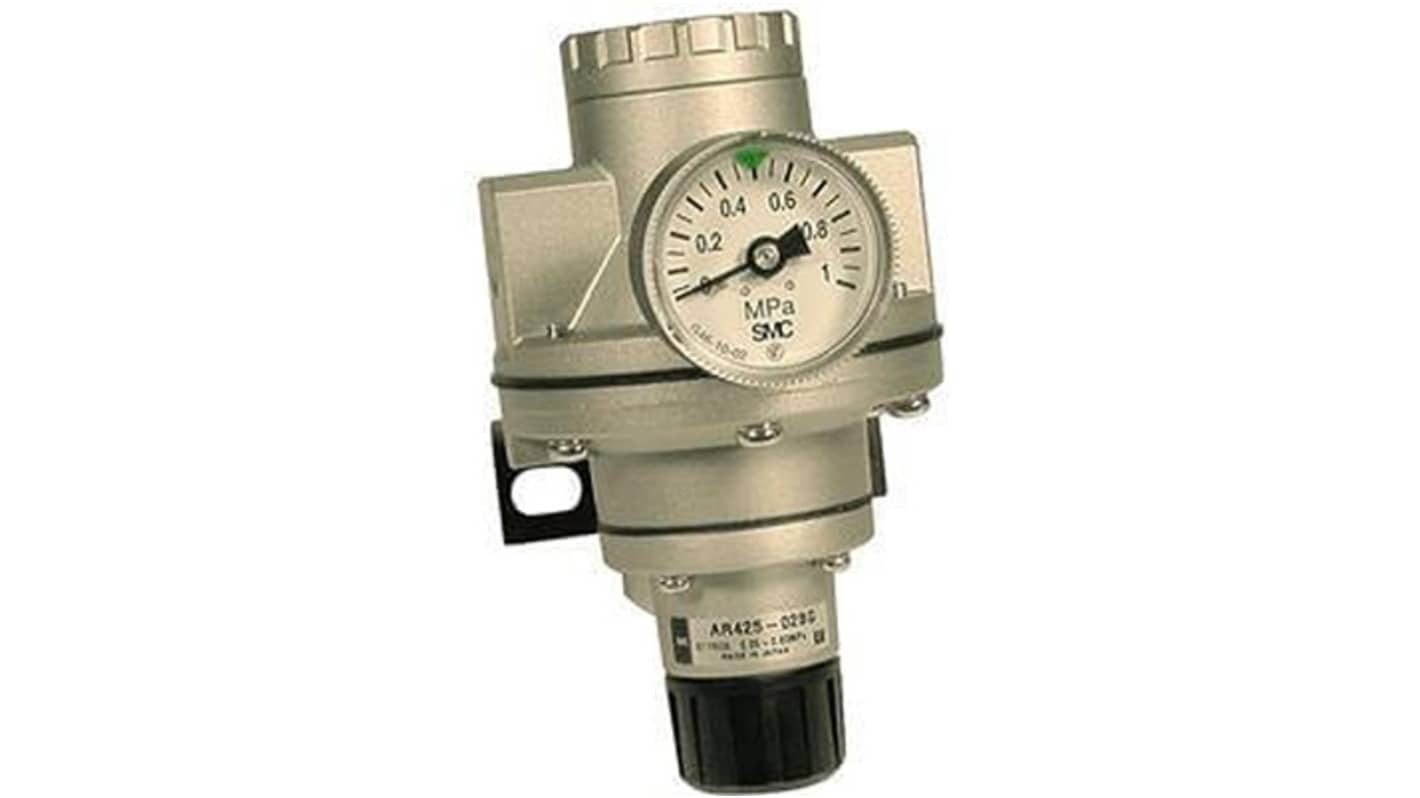

SMC 1/2 in G Pneumatic Regulator - 1 Mpa, EAR425-F04, 1/4 in 20 L/min EAR
- RS Stock No.:
- 395-407
- Mfr. Part No.:
- EAR425-F04
- Brand:
- SMC
Subtotal (1 unit)*
£122.00
(exc. VAT)
£146.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £122.00 |
*price indicative
- RS Stock No.:
- 395-407
- Mfr. Part No.:
- EAR425-F04
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Regulator | |
| Port Size | 1/2 in G | |
| Series | EAR | |
| Pressure Gauge Port Size | 1/4 in | |
| Overall Length | 80mm | |
| Maximum Flow Rate | 20L/min | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Overall Width | 39.5mm | |
| Overall Height | 145.5mm | |
| Pressure Setting Range | 0.02 to 0.2 MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Regulator | ||
Port Size 1/2 in G | ||
Series EAR | ||
Pressure Gauge Port Size 1/4 in | ||
Overall Length 80mm | ||
Maximum Flow Rate 20L/min | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Overall Width 39.5mm | ||
Overall Height 145.5mm | ||
Pressure Setting Range 0.02 to 0.2 MPa | ||
- COO (Country of Origin):
- JP
The SMC Pilot Operated Regulator features a locking adjustment knob that prevents accidental setting changes, ensuring consistent pressure control. Its modular design allows easy connection with other SMC air preparation equipment, offering flexibility and integration in air systems.
Cost effective and clean looking
