EMERSON ? AVENTICS G 1 Regulator - 0.1bar to 16bar, 1 in, 16bar max. input, R412009095
- RS Stock No.:
- 299-145
- Mfr. Part No.:
- R412009095
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£205.90
(exc. VAT)
£247.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £205.90 |
*price indicative
- RS Stock No.:
- 299-145
- Mfr. Part No.:
- R412009095
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Port Connection | G 1 | |
Maximum Outlet Pressure | 16bar | |
Minimum Outlet Pressure | 0.1bar | |
Maximum Input Pressure | 16bar | |
Manufacturer Series | AS5-RGS | |
Port Connection Thread Size | 1 in | |
Maximum Flow Rate | 16500L/min | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +50°C | |
Model Number p | R412009095 | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Port Connection G 1 | ||
Maximum Outlet Pressure 16bar | ||
Minimum Outlet Pressure 0.1bar | ||
Maximum Input Pressure 16bar | ||
Manufacturer Series AS5-RGS | ||
Port Connection Thread Size 1 in | ||
Maximum Flow Rate 16500L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p R412009095 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

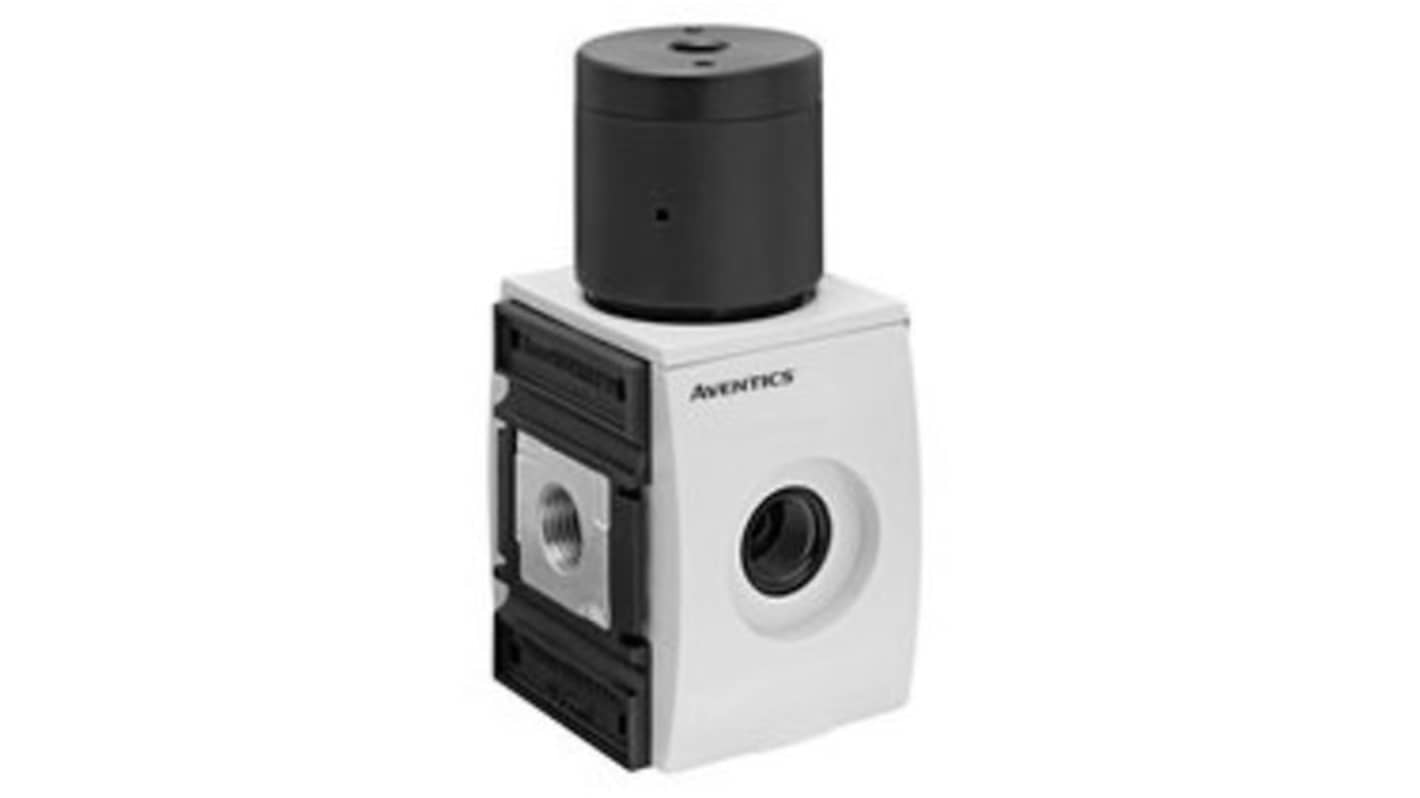

The Aventics Pressure regulator Series AS5 is a modular and versatile maintenance unit designed for universal applications. This series features compact dimensions, high efficiency, lightweight construction, and user-friendly design. It ensures reliability, safety, and efficiency while simplifying assembly and maintenance efforts.
Minimum regulation range 0.5 bar
Maximum regulation range 16 bar
Minimum working pressure 0.5 bar
Maximum working pressure 16 bar
Maximum regulation range 16 bar
Minimum working pressure 0.5 bar
Maximum working pressure 16 bar
