RS PRO Steel Male Pneumatic Quick Connect Coupling, G 1/4 Male Threaded
- RS Stock No.:
- 776-8343
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£15.45
(exc. VAT)
£18.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 104 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.45 |
5 - 9 | £14.88 |
10 - 24 | £14.55 |
25 + | £14.18 |
*price indicative
- RS Stock No.:
- 776-8343
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Threaded Connection | G 1/4 Male | |
Coupling Gender | Male | |
Connection Standard | PCL | |
Thread Size | 1/4in | |
Coupling Type | Quick Connect Coupling Socket | |
Manufacturer Series | AA | |
Connection Type | Threaded | |
Material | Steel | |
Thread Gender | Male | |
Thread Standard | G | |
Maximum Operating Pressure | 35bar | |
Finish | Zinc Plated | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +100°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Threaded Connection G 1/4 Male | ||
Coupling Gender Male | ||
Connection Standard PCL | ||
Thread Size 1/4in | ||
Coupling Type Quick Connect Coupling Socket | ||
Manufacturer Series AA | ||
Connection Type Threaded | ||
Material Steel | ||
Thread Gender Male | ||
Thread Standard G | ||
Maximum Operating Pressure 35bar | ||
Finish Zinc Plated | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

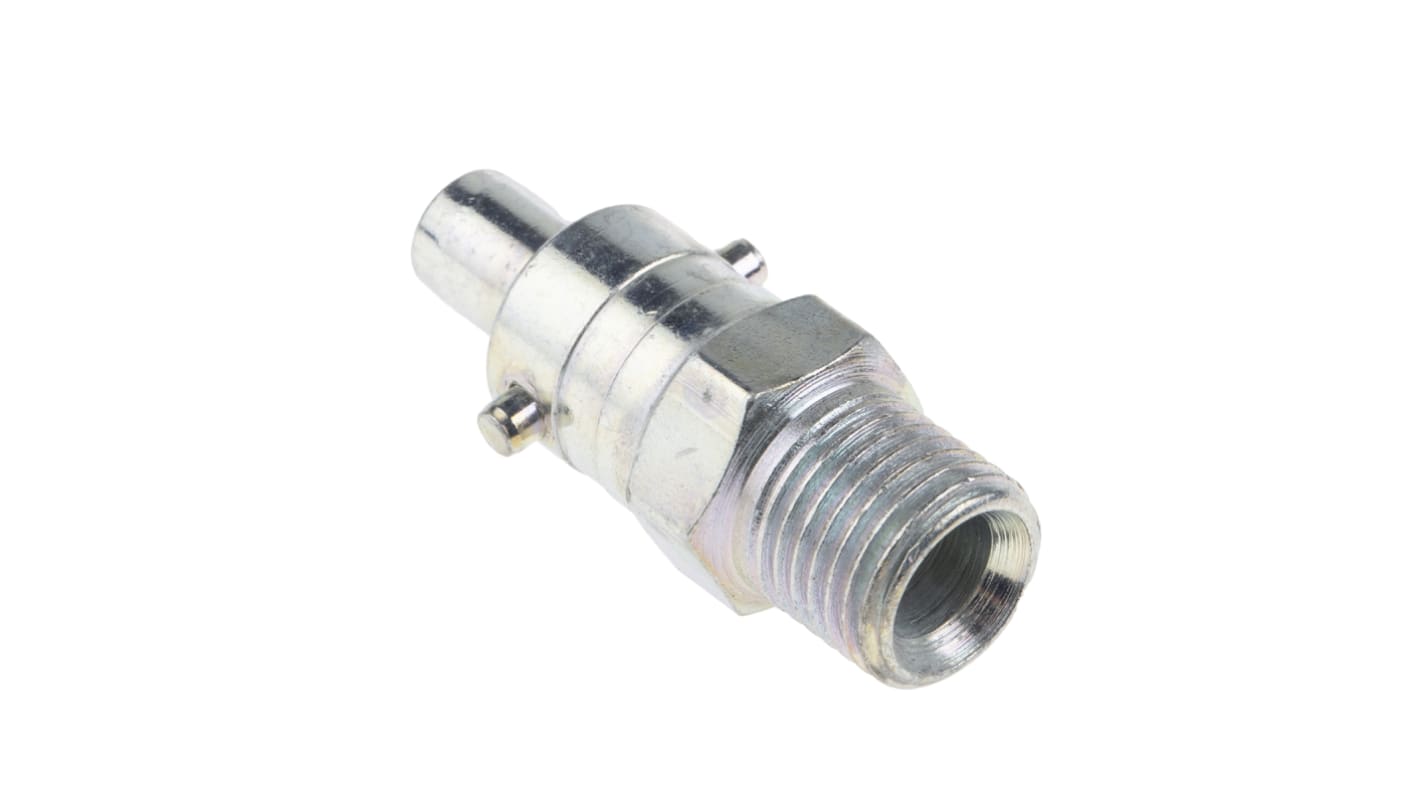

RS PRO Pneumatic Quick Connect Coupling Steel 1/4 in Threaded
This pneumatic quick connect coupling from the reliable RS PRO range provides a secure connection for most compressed-air applications. It's a single shut-off coupling with a G standard 1/4 in male thread. It has a PCL-made fitting that attaches quickly to a hose or air tool by pulling back the collar on the corresponding female connector. It features a positive connection with a bayonet head to prevent accidental disconnection.
The Instantair adaptor is made from zinc-plated steel for corrosion resistance. It's designed to ensure maximum efficiency, with a coupling that features a positive seal to allow zero leakage. The coupling will operate up to a maximum pressure of 35 bar and a maximum temperature of +100˚C, and down to a minimum temperature of -20˚C.
Compressed air is used in a wide range of industrial applications, including heating, ventilation and air conditioning (HVAC) control systems, sandblasting and injection moulding.
The Instantair adaptor is made from zinc-plated steel for corrosion resistance. It's designed to ensure maximum efficiency, with a coupling that features a positive seal to allow zero leakage. The coupling will operate up to a maximum pressure of 35 bar and a maximum temperature of +100˚C, and down to a minimum temperature of -20˚C.
Compressed air is used in a wide range of industrial applications, including heating, ventilation and air conditioning (HVAC) control systems, sandblasting and injection moulding.
Features and Benefits
• Pneumatic quick connect coupling
• G thread standard
• 1/4 in threaded connection
• Male thread
• PCL-branded coupling is quick releasing
• Male coupling
• Bayonet head prevents accidental disconnection
• Maximum operating pressure 35 bar
• Maximum operating temperature of +100˚C
• Minimum operating temperature of -20˚C
• Zinc-plated steel resists corrosion
• Nominal bore of 5.6 mm
• Manufacturer series AA
• RoHS (Restriction of Hazardous Substances) compliant
• G thread standard
• 1/4 in threaded connection
• Male thread
• PCL-branded coupling is quick releasing
• Male coupling
• Bayonet head prevents accidental disconnection
• Maximum operating pressure 35 bar
• Maximum operating temperature of +100˚C
• Minimum operating temperature of -20˚C
• Zinc-plated steel resists corrosion
• Nominal bore of 5.6 mm
• Manufacturer series AA
• RoHS (Restriction of Hazardous Substances) compliant
