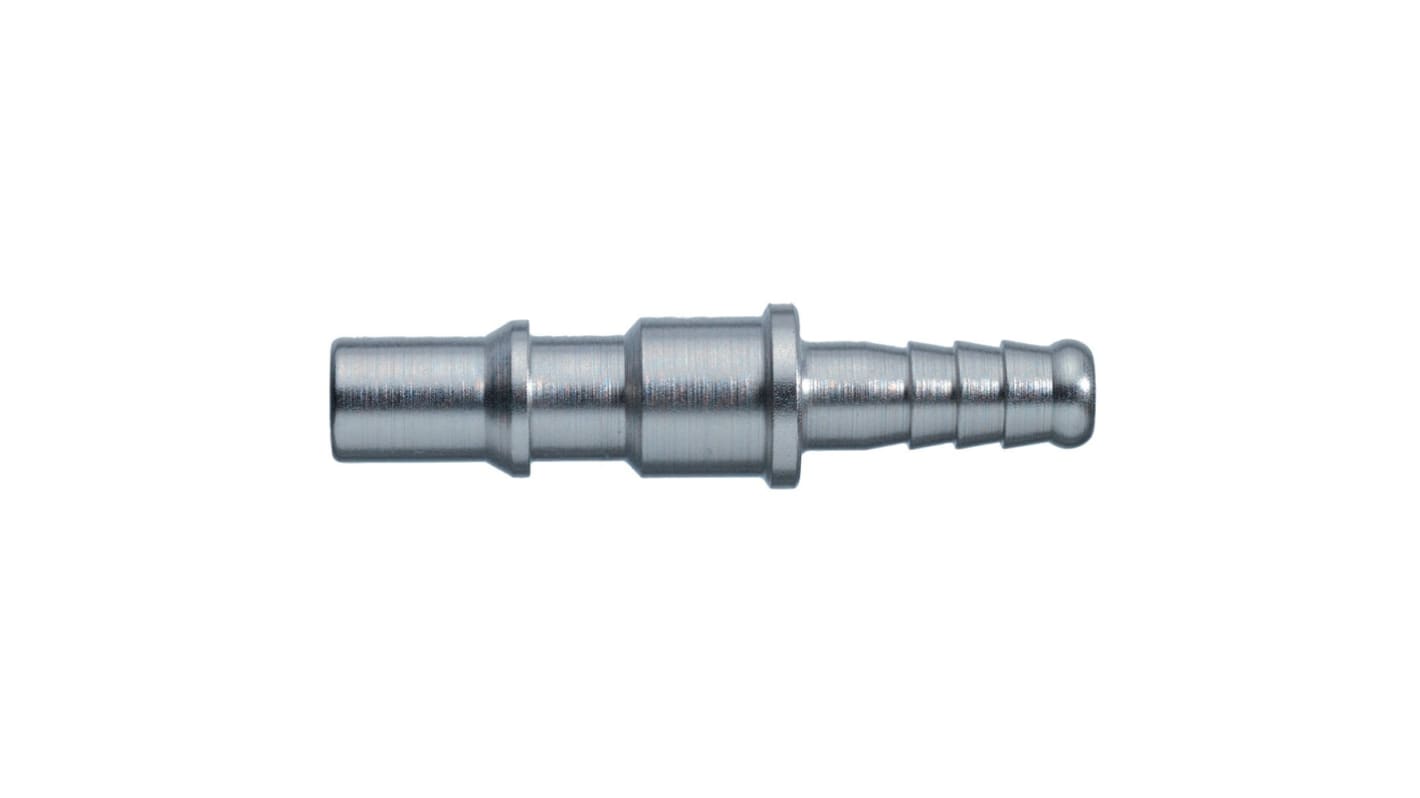

Legris Nickel Plated Steel Pneumatic Quick Connect Coupling Male, Female 16mm Self-Venting System
- RS Stock No.:
- 283-1582
- Mfr. Part No.:
- 84SFTF13SXN
- Brand:
- Legris
Subtotal (1 unit)*
£32.14
(exc. VAT)
£38.57
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.14 |
*price indicative
- RS Stock No.:
- 283-1582
- Mfr. Part No.:
- 84SFTF13SXN
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Series | 84 | |
| Sub Type | Self-Venting System | |
| Hose Barb Connection | 16mm | |
| Material | Nickel Plated Steel | |
| Thread Gender | Male, Female | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum Operating Pressure | 12 bar | |
| Finish | Anodised | |
| Standards/Approvals | ISO 6150 C, DIN EN 983, ISO4414 | |
| Select all | ||
|---|---|---|
Brand Legris | ||
Product Type Pneumatic Quick Connect Coupling | ||
Series 84 | ||
Sub Type Self-Venting System | ||
Hose Barb Connection 16mm | ||
Material Nickel Plated Steel | ||
Thread Gender Male, Female | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
Maximum Operating Pressure 12 bar | ||
Finish Anodised | ||
Standards/Approvals ISO 6150 C, DIN EN 983, ISO4414 | ||
The Legris Quick Coupling from 84 Series developed for single hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The high insertion depth is guaranteed by an optimized plug guide. This 84 series coupling has an optimized locking of the plug due to 6 way ball valve.
Compliance to ISO 6150C
Easy and fast connection
