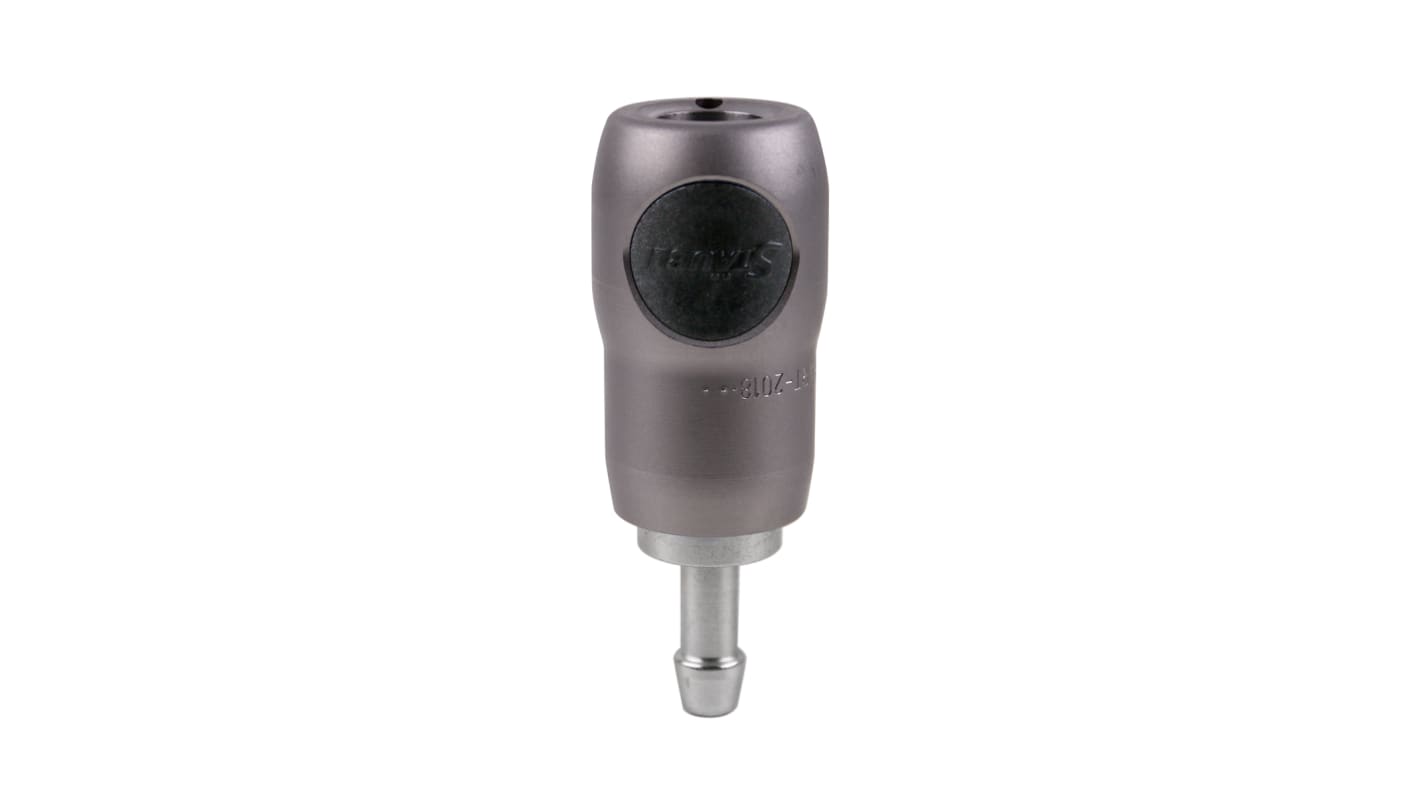

Staubli – Fluid Connectors Stainless Steel Safety Quick Connect Coupling, Male, Female 13mm
- RS Stock No.:
- 185-7597
- Mfr. Part No.:
- RSI06.1813
- Brand:
- Staubli ? Fluid Connectors
Subtotal (1 unit)*
£30.23
(exc. VAT)
£36.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.23 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.79
(exc. VAT)
£42.95
(inc. VAT)
- RS Stock No.:
- 185-7597
- Mfr. Part No.:
- RSI06.1813
- Brand:
- Staubli ? Fluid Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli ? Fluid Connectors | |
| Product Type | Safety Quick Connect Coupling | |
| Series | RSI 06 | |
| Hose Barb Connection | 13mm | |
| Material | Stainless Steel | |
| Thread Gender | Male, Female | |
| Maximum Operating Pressure | 16 bar | |
| Finish | Chromium | |
| Standards/Approvals | ISO 6150 C series, ISO 4414 | |
| Select all | ||
|---|---|---|
Brand Staubli ? Fluid Connectors | ||
Product Type Safety Quick Connect Coupling | ||
Series RSI 06 | ||
Hose Barb Connection 13mm | ||
Material Stainless Steel | ||
Thread Gender Male, Female | ||
Maximum Operating Pressure 16 bar | ||
Finish Chromium | ||
Standards/Approvals ISO 6150 C series, ISO 4414 | ||
- COO (Country of Origin):
- FR
Absolute safety against the risk of violent hose ejection under pressure. Simply pressing the button once starts a fully automatic disconnection process:closure of the upstream compressed air circuit,decompression of the downstream circuit,automatic disconnection of the plug as soon as the pressure is low enough.
Connections for all compressed air circuits: spurs on pipework, fittings on extension hoses, pneumatic tool connectors, air guns and automatic systems on machines.
