RS PRO Nickel Plated Brass Quick Air Coupling Female BSP

RS Stock No.:: 176-1995
Brand:: RS PRO

RS PRO Nickel Plated Brass Quick Air Coupling Female BSP

Subtotal (1 pack of 10 units)*

£39.56

(exc. VAT)

£47.47

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

30 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 +	£3.956	£39.56

*price indicative

RS Stock No.:: 176-1995
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Thread Standard	BSP
	Product Type	Quick Air Coupling
	Thread Size	1/4 in
	Material	Nickel Plated Brass
	Thread Gender	Female
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	80°C
	Maximum Operating Pressure	12 bar
	Standards/Approvals	No

	Select all
	Brand RS PRO
	Thread Standard BSP
	Product Type Quick Air Coupling
	Thread Size 1/4 in
	Material Nickel Plated Brass
	Thread Gender Female
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 80°C
	Maximum Operating Pressure 12 bar
	Standards/Approvals No

COO (Country of Origin):: IT

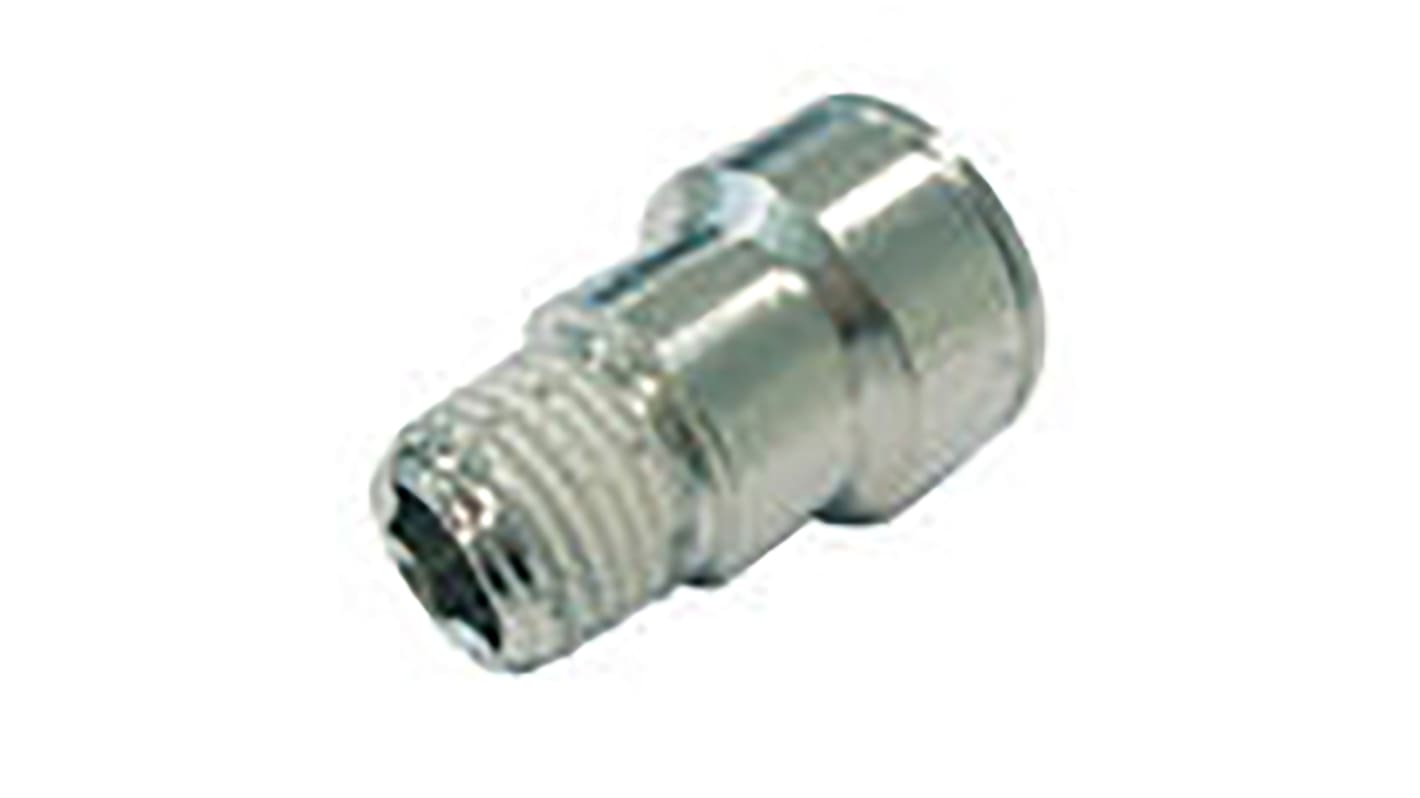

RS PRO Quick Connect Coupling

The RS PRO quick connect coupling has a male BSP threaded connection with thread size of 1/4in. This french profile socket taper with female coupling is interchangeable with RECTUS 608/612 of diameter 8mm.

Features and Benefits

• Nickel-plated brass body

• FKM O-ring seals

• Silicon free

• Working pressure ranges between 0bar and 15bar

• Operating temperature ranges between -15°C and 200°C

• Fluids: water, cooling water and oil

• Light and compact

Applications

• Compressed air and tools

• Pneumatic and fluid technology

• Food and beverage

• Life and sciences

• Cooling system

• Inert gases, vacuum

Certifications

• REACH compliant

• PED 2014/68/UE approved
