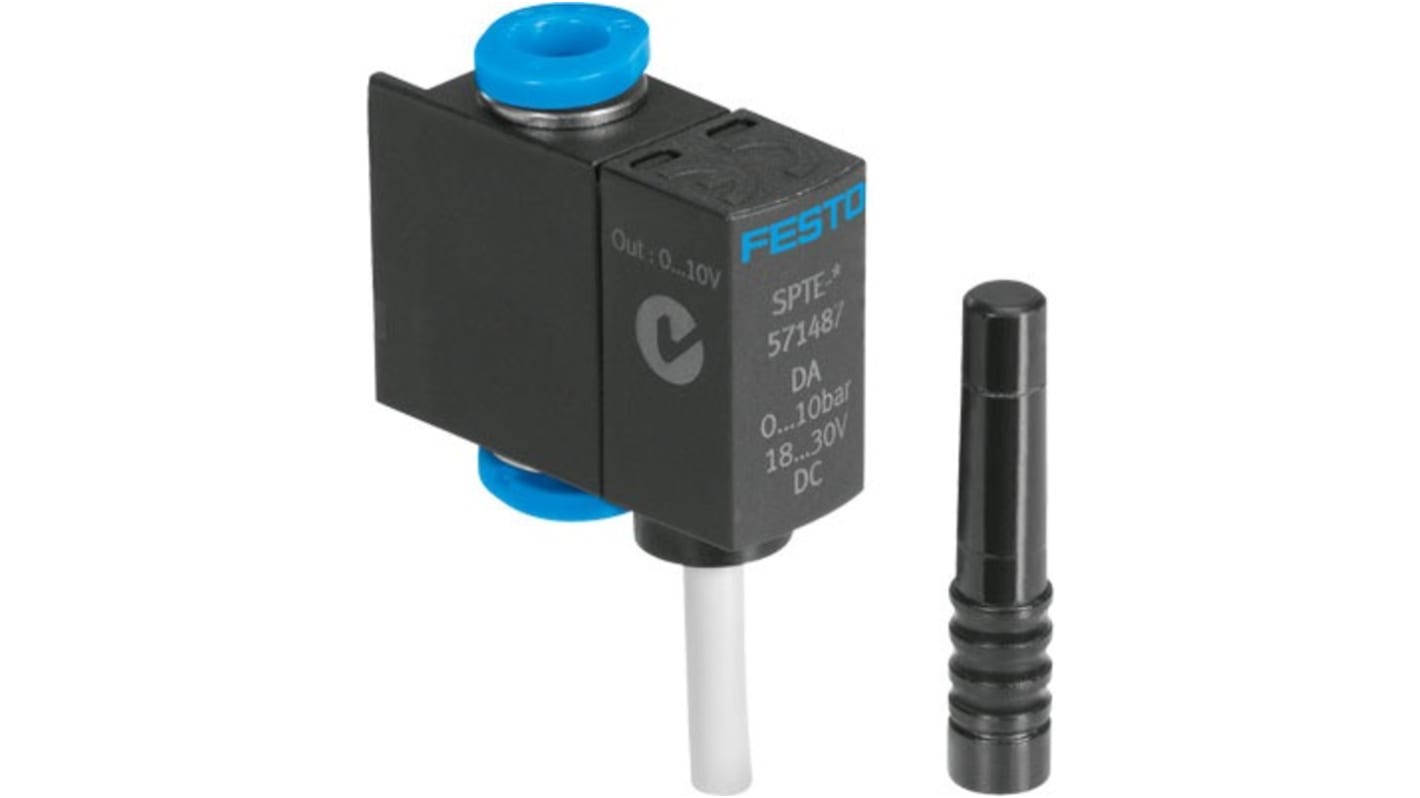

Festo Pressure Sensor, IP40 -1 bar 30 V dc 50 °C
- RS Stock No.:
- 288-8463
- Mfr. Part No.:
- SPTE-V1R-Q3-B-2.5K
- Brand:
- Festo
Subtotal (1 unit)*
£50.21
(exc. VAT)
£60.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £50.21 |
*price indicative
- RS Stock No.:
- 288-8463
- Mfr. Part No.:
- SPTE-V1R-Q3-B-2.5K
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Suitable Medias | Air | |
| Product Type | Pressure Sensor | |
| Accuracy | 0.1% Full Scale | |
| Minimum Operating Pressure | 0bar | |
| Pressure Type | Relative | |
| Port Size | QS-3 | |
| Voltage | 30 V dc | |
| Mount Type | Optional | |
| IP Rating | IP40 | |
| Maximum Operating Temperature | 50°C | |
| Maximum Operating Pressure | -1 bar | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | CE, UKCA | |
| Series | SPTE-V1R-Q3-B-2.5K | |
| Electrical Connection Type | 3-Wire Open End Cable | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Suitable Medias Air | ||
Product Type Pressure Sensor | ||
Accuracy 0.1% Full Scale | ||
Minimum Operating Pressure 0bar | ||
Pressure Type Relative | ||
Port Size QS-3 | ||
Voltage 30 V dc | ||
Mount Type Optional | ||
IP Rating IP40 | ||
Maximum Operating Temperature 50°C | ||
Maximum Operating Pressure -1 bar | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals CE, UKCA | ||
Series SPTE-V1R-Q3-B-2.5K | ||
Electrical Connection Type 3-Wire Open End Cable | ||
- COO (Country of Origin):
- TH
The Festo Pressure transmitter is designed to provide accurate measurement of relative pressure in various industrial applications. With a compact design and reliable performance, this transmitter is a must-have for precise pressure monitoring.
Piezoresistive pressure sensor for accurate measurements
Wide pressure measuring range of 0 MPa to -0.1 MPa
Analog output of 1-5 V for easy data interpretation
Short circuit current rating for all electrical connections ensures safety
Reverse polarity protection for added security
IP40 degree of protection for durability in harsh environments
