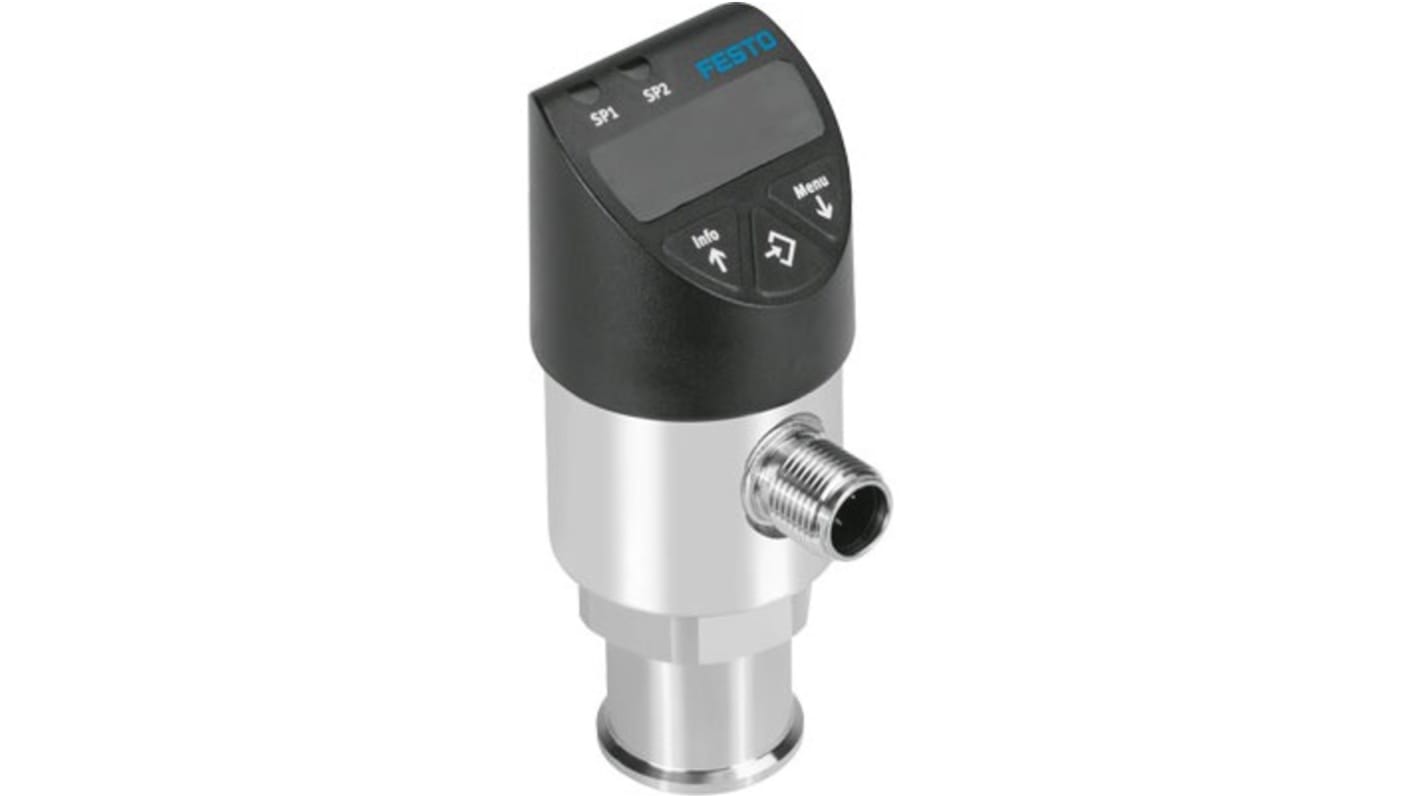

Festo Pressure Sensor, 15 - 35V dc, IP65, IP67 50 bar
- RS Stock No.:
- 288-8438
- Mfr. Part No.:
- SPAW-P50R-G14F-2NA-M12
- Brand:
- Festo
Subtotal (1 unit)*
£307.87
(exc. VAT)
£369.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £307.87 |
*price indicative
- RS Stock No.:
- 288-8438
- Mfr. Part No.:
- SPAW-P50R-G14F-2NA-M12
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Suitable Media | Air, Gas, Liquid | |
Maximum Operating Pressure | 50 bar | |
Minimum Operating Pressure | 0bar | |
Port Connection | M12 | |
Supply Voltage | 15 - 35V dc | |
IP Rating | IP65, IP67 | |
Select all | ||
---|---|---|
Brand Festo | ||
Suitable Media Air, Gas, Liquid | ||
Maximum Operating Pressure 50 bar | ||
Minimum Operating Pressure 0bar | ||
Port Connection M12 | ||
Supply Voltage 15 - 35V dc | ||
IP Rating IP65, IP67 | ||
- COO (Country of Origin):
- DE
The Festo Pressure sensor is a reliable solution for measuring relative pressure in various applications. With a measurement method of metal thin-film pressure sensor, it offers accurate readings and a wide pressure measuring range from 0 to 5 MPa. The sensor is designed for use with both liquid and gaseous media, making it versatile for different industrial settings.
Metal thin-film pressure sensor for accurate measurements
Wide pressure measuring range from 0 to 5 MPa
Suitable for use with liquid and gaseous media
High accuracy of ±1% FS and low repetition accuracy of ±0.15% FS
Features two NPN switching outputs and one 4-20 mA analogue output for flexibility in monitoring
Quick response time of 3 ms for real-time data
Robust construction with IP65 and IP67 protection against environmental factors
Wide pressure measuring range from 0 to 5 MPa
Suitable for use with liquid and gaseous media
High accuracy of ±1% FS and low repetition accuracy of ±0.15% FS
Features two NPN switching outputs and one 4-20 mA analogue output for flexibility in monitoring
Quick response time of 3 ms for real-time data
Robust construction with IP65 and IP67 protection against environmental factors
