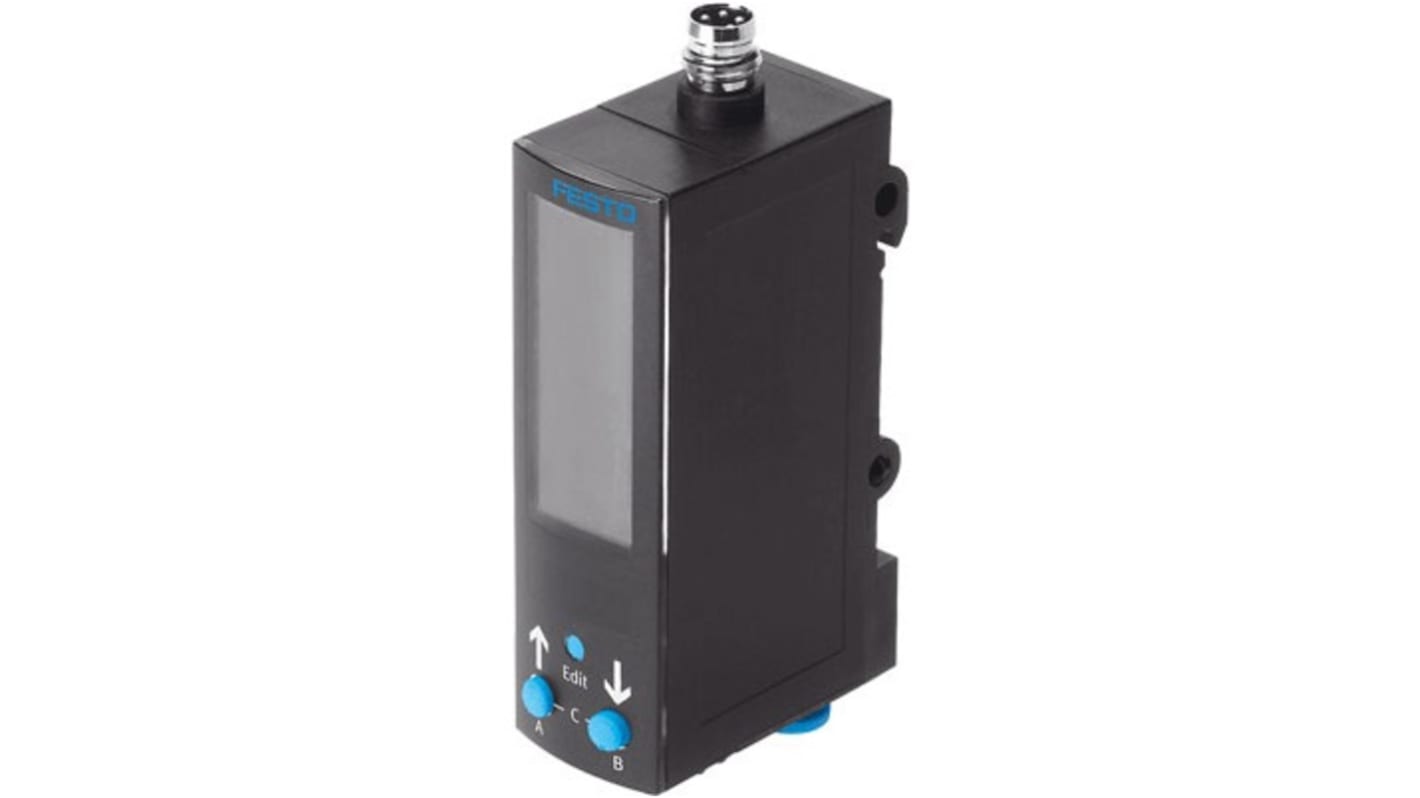

Festo Pressure Sensor, 15 - 30V dc, IP67 6 bar
- RS Stock No.:
- 288-8211
- Mfr. Part No.:
- SDE3-D6M-B-HQ4-2P-M8
- Brand:
- Festo
Subtotal (1 unit)*
£189.10
(exc. VAT)
£226.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £189.10 |
*price indicative
- RS Stock No.:
- 288-8211
- Mfr. Part No.:
- SDE3-D6M-B-HQ4-2P-M8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Suitable Media | Air | |
| Maximum Operating Pressure | 6 bar | |
| Minimum Operating Pressure | 0bar | |
| Port Connection | M8 | |
| Supply Voltage | 15 - 30V dc | |
| IP Rating | IP67 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Suitable Media Air | ||
Maximum Operating Pressure 6 bar | ||
Minimum Operating Pressure 0bar | ||
Port Connection M8 | ||
Supply Voltage 15 - 30V dc | ||
IP Rating IP67 | ||
- COO (Country of Origin):
- BG
The Festo Pressure sensor is a reliable and accurate device designed to measure relative and differential pressure. With a piezoresistive pressure sensor and display, this sensor ensures precise measurements in a wide range of applications.
Approval includes RCM trademark, c UL us - Recognized, and CE mark for compliance with EU directives
Operates with a start value of 0 MPa, 0 bar, and 0 psi, and an end value of 0.6 MPa, 6 bar, and 87 psi
Suitable for use with compressed air according to ISO 8573-1:2010, with lubricated operation possible
Offers 2xPNP switching output with freely programmable function and reproducibility of switching value at 0.3%
Can handle max output current of 100 mA, short circuit current rating pulsed, and operational voltage range DC 15 V to 30 V
Comes with electrical connection plug type M8x1 and mounting via screw-type lock, with IP65 protection and CRC 2 corrosion resistance class
Weighs only 37g, made of PA-reinforced PC, with an illuminated LCD display, and setting options like Teach-in and PIN code protection
Operates with a start value of 0 MPa, 0 bar, and 0 psi, and an end value of 0.6 MPa, 6 bar, and 87 psi
Suitable for use with compressed air according to ISO 8573-1:2010, with lubricated operation possible
Offers 2xPNP switching output with freely programmable function and reproducibility of switching value at 0.3%
Can handle max output current of 100 mA, short circuit current rating pulsed, and operational voltage range DC 15 V to 30 V
Comes with electrical connection plug type M8x1 and mounting via screw-type lock, with IP65 protection and CRC 2 corrosion resistance class
Weighs only 37g, made of PA-reinforced PC, with an illuminated LCD display, and setting options like Teach-in and PIN code protection
