SMC Pneumatic Compact Cylinder - 20mm Bore, 40mm Stroke, CQM Series, Double Acting
- RS Stock No.:
- 838-8881
- Mfr. Part No.:
- CDQMB20-40
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£79.78
(exc. VAT)
£95.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £79.78 |
| 5 + | £76.60 |
*price indicative
- RS Stock No.:
- 838-8881
- Mfr. Part No.:
- CDQMB20-40
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Manufacturer Series | CQM | |
| Stroke | 40mm | |
| Action | Double | |
| Bore | 20mm | |
| Port Connection | M4 x 0.7 | |
| Cushioning Type | Rubber | |
| Dimensions | 71.5 x 36 x 36mm | |
| Width | 36mm | |
| Height | 36mm | |
| Length | 71.5mm | |
| Absolute Maximum Pressure | 1.5MPa | |
| Maximum Operating Pressure | 1 MPa | |
| Maximum Operating Temperature | +60°C | |
| Weight | 703.4g | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Manufacturer Series CQM | ||
Stroke 40mm | ||
Action Double | ||
Bore 20mm | ||
Port Connection M4 x 0.7 | ||
Cushioning Type Rubber | ||
Dimensions 71.5 x 36 x 36mm | ||
Width 36mm | ||
Height 36mm | ||
Length 71.5mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Maximum Operating Temperature +60°C | ||
Weight 703.4g | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

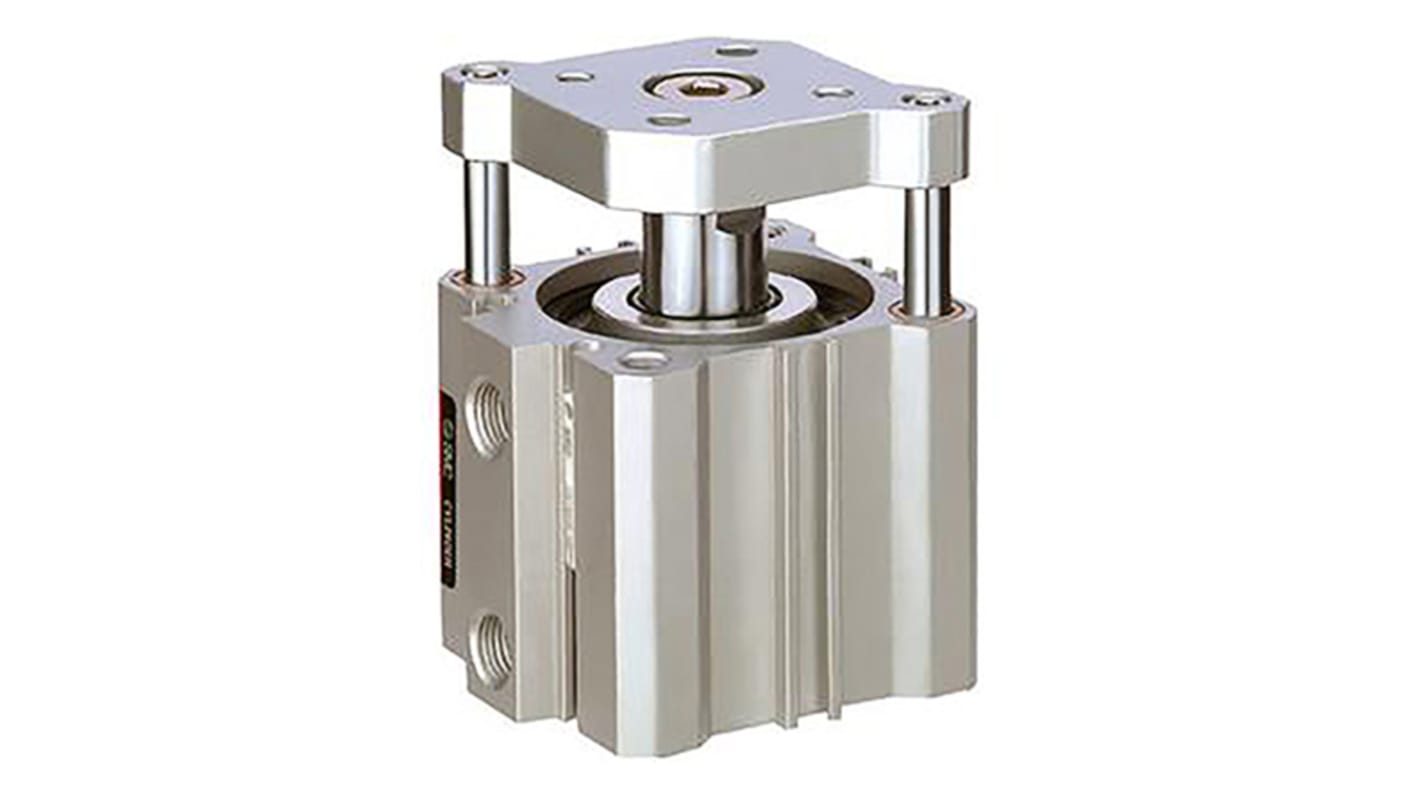

SMC CQM Compact Guided/Guide Rod Cylinder
SMC CQM Compact Guided/Guide Rod cylinders can accommodate direct loads, offer a lateral load resistance that is two to four times greater than SMC series CQ cylinders, and include mounting points that are compatible with SMC CQS and CQ2 series cylinders. The non-rotatable cylinders feature a hard anodized aluminium body, and are available as double-acting units with a magnetic piston as standard.
