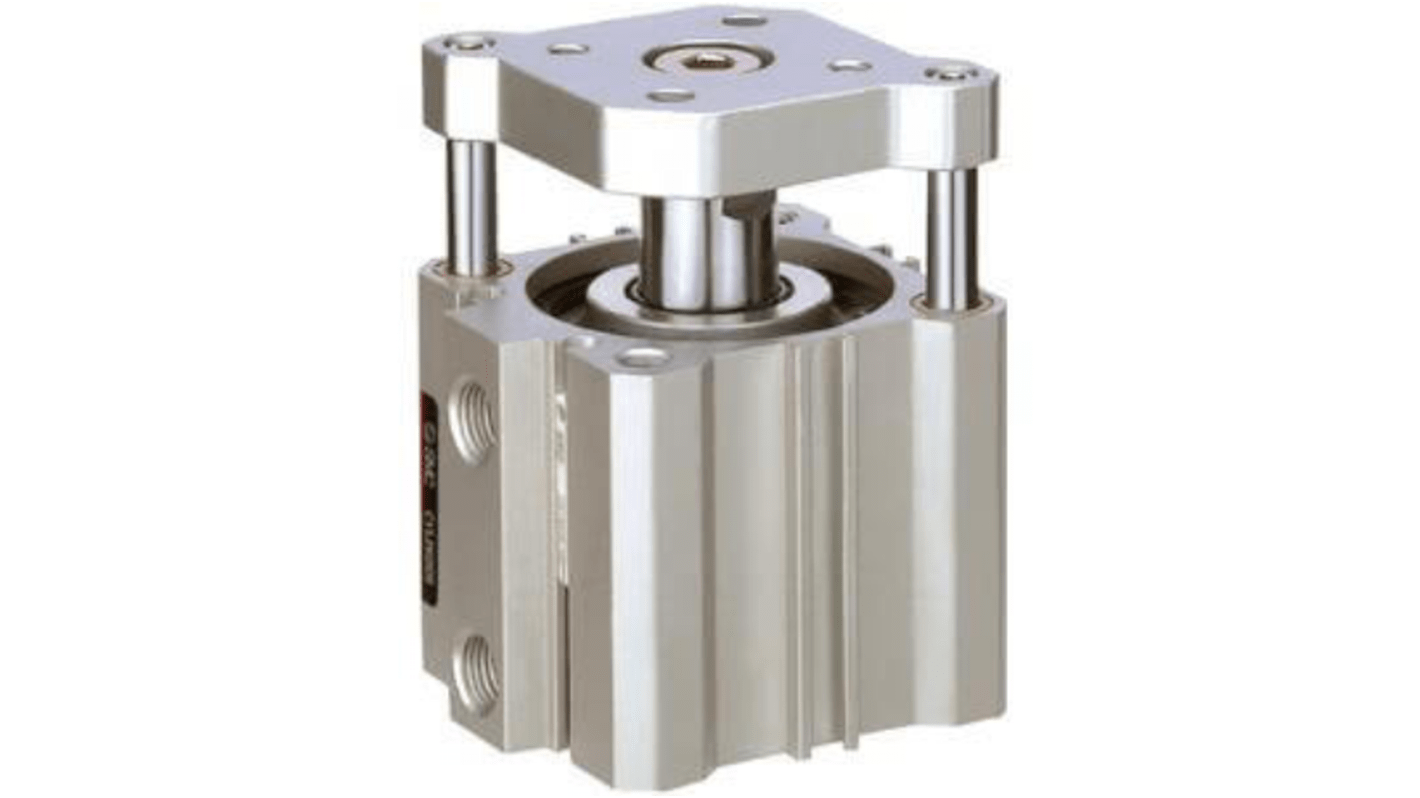

SMC Pneumatic Guided Cylinder - 25mm Bore, CQM Series, 40 mm Double Acting Acting
- RS Stock No.:
- 254-7155
- Mfr. Part No.:
- CQMB25-40
- Brand:
- SMC
Subtotal (1 unit)*
£83.70
(exc. VAT)
£100.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.70 |
*price indicative
- RS Stock No.:
- 254-7155
- Mfr. Part No.:
- CQMB25-40
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Diameter | 25mm | |
| Series | CQM | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber Bumper | |
| Piston Rod Thread Standard | Metric | |
| Rod Type | Double | |
| Guide Type | Slide Bearing | |
| Maximum Piston Speed | 500mm/s | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 55mm | |
| Weight | 200g | |
| Standards/Approvals | RoHS | |
| Height | 50mm | |
| Length | 55mm | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Diameter 25mm | ||
Series CQM | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber Bumper | ||
Piston Rod Thread Standard Metric | ||
Rod Type Double | ||
Guide Type Slide Bearing | ||
Maximum Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Width 55mm | ||
Weight 200g | ||
Standards/Approvals RoHS | ||
Height 50mm | ||
Length 55mm | ||
Stroke Length 40mm | ||
- COO (Country of Origin):
- JP
The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements.
Guide rod type compact cylinder
Non-rotating accuracy 0.2 or less
