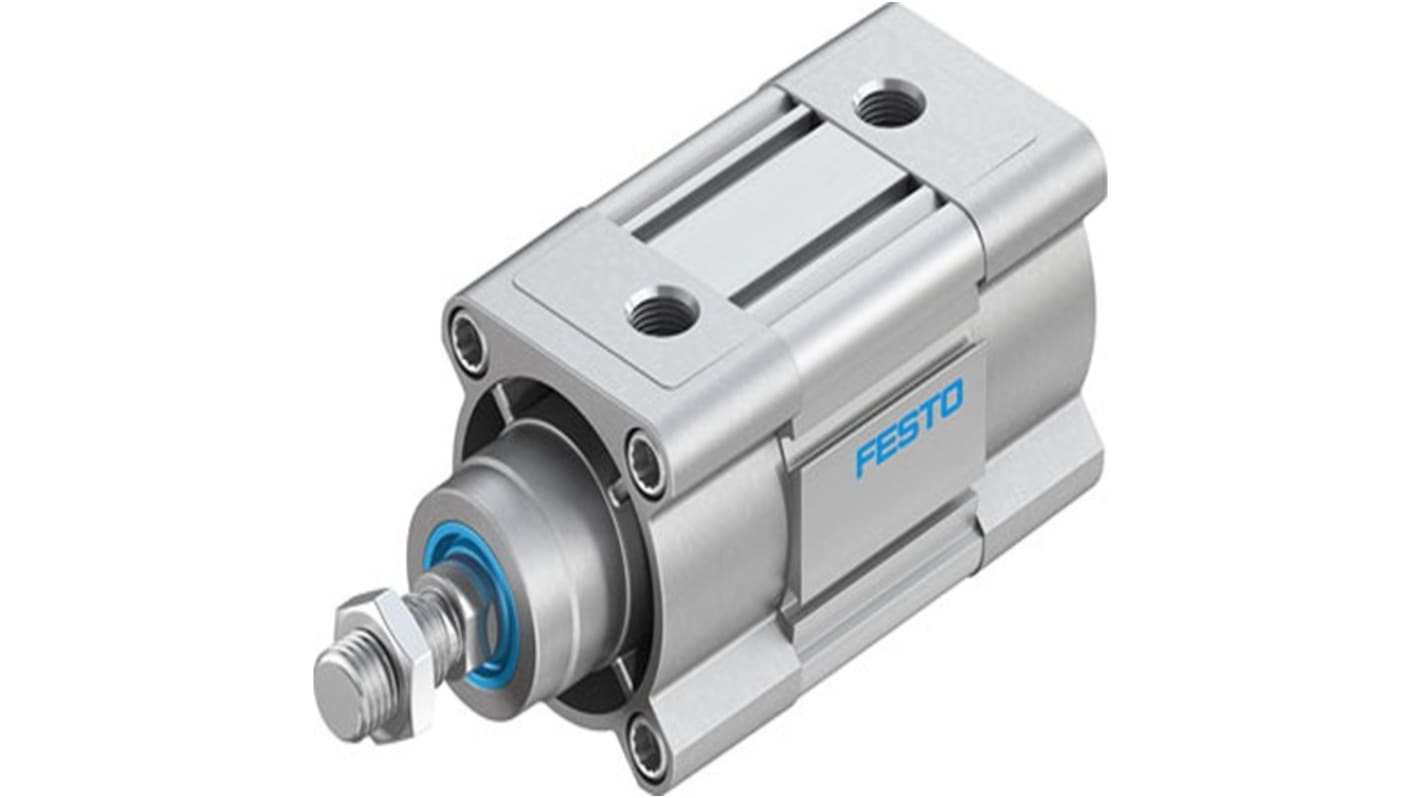

Festo ISO Standard Cylinder - 3657811 63 mm Bore, 20 mm DSBC Series, Double Acting Acting
- RS Stock No.:
- 275-4603
- Mfr. Part No.:
- DSBC-63-20-D3-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£203.68
(exc. VAT)
£244.42
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £203.68 |
*price indicative
- RS Stock No.:
- 275-4603
- Mfr. Part No.:
- DSBC-63-20-D3-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSBC | |
| Product Type | ISO Standard Cylinder | |
| Model Number | 3657811 | |
| Action Type | Double Acting | |
| Bore Size | 63 mm | |
| Mount Type | Female Thread | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 20mm | |
| Maximum Operating Pressure | 1.2 Mpa | |
| Piston Rod Thread Size | M16 x 1.5 | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Gender | Male | |
| Maximum Operating Temperature | 80°C | |
| Weight | 1774g | |
| Standards/Approvals | ISO 15552, RoHS, VDMA24364-B1/B2-L | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSBC | ||
Product Type ISO Standard Cylinder | ||
Model Number 3657811 | ||
Action Type Double Acting | ||
Bore Size 63 mm | ||
Mount Type Female Thread | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 20mm | ||
Maximum Operating Pressure 1.2 Mpa | ||
Piston Rod Thread Size M16 x 1.5 | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Gender Male | ||
Maximum Operating Temperature 80°C | ||
Weight 1774g | ||
Standards/Approvals ISO 15552, RoHS, VDMA24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
The Festo ISO cylinder that has self adjusting pneumatic end position cushioning, position detection via proximity switch. The piston rod is made up of high alloy steel material, it has male thread end piston rod.
RoHS compliant
Corrosion resistance
