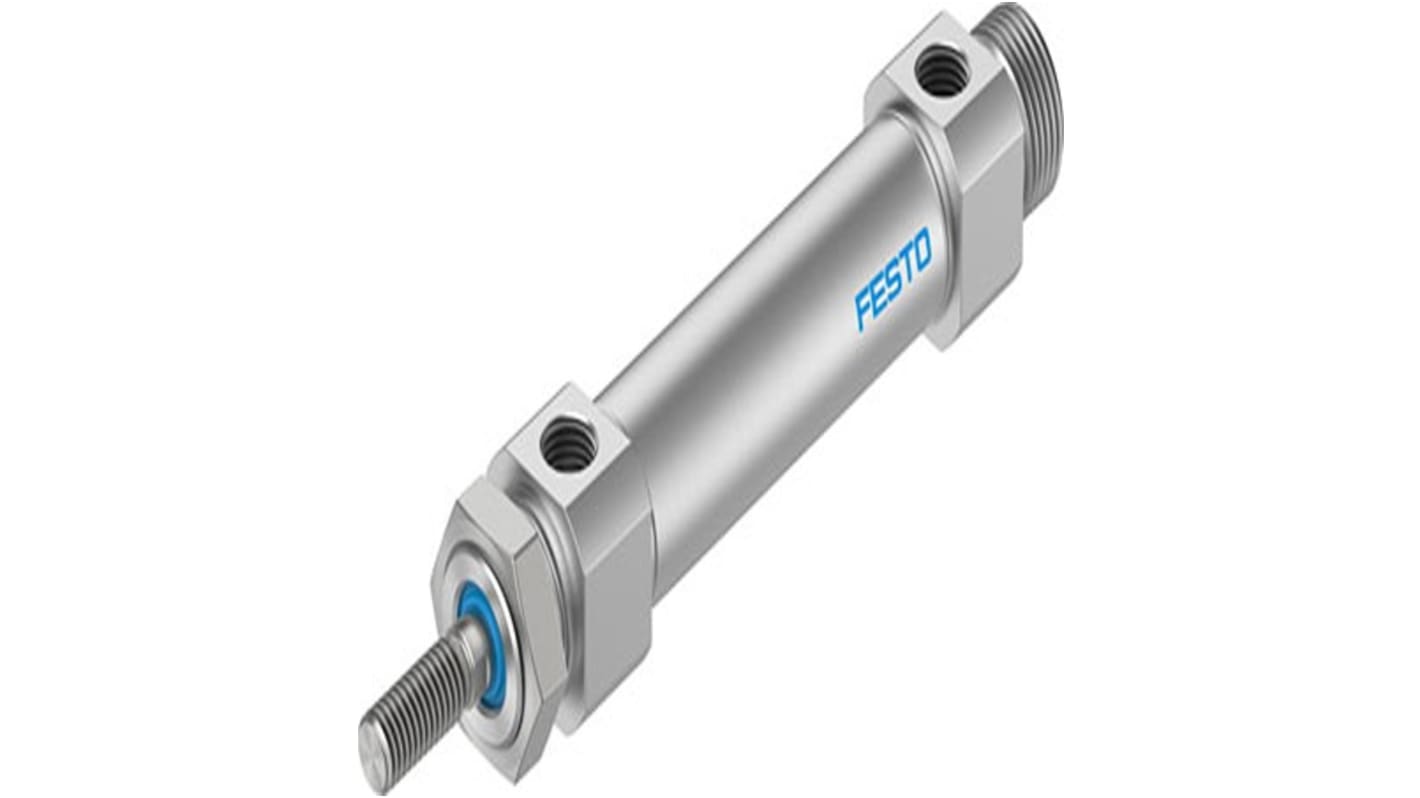

Festo 125 mm Pneumatic Piston Rod Cylinder - 5224645 DSNU Series, Double Acting Acting
- RS Stock No.:
- 273-7690
- Distrelec Article No.:
- 301-86-805
- Mfr. Part No.:
- DSNU-S-20-125-P-A-MX
- Brand:
- Festo
Subtotal (1 unit)*
£49.97
(exc. VAT)
£59.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.97 |
*price indicative
- RS Stock No.:
- 273-7690
- Distrelec Article No.:
- 301-86-805
- Mfr. Part No.:
- DSNU-S-20-125-P-A-MX
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSNU | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Model Number | 5224645 | |
| Action Type | Double Acting | |
| Cushioning Type | Elastic | |
| Body Material | Alloy Steel | |
| Stroke Length | 125mm | |
| Rod Type | Piston | |
| Piston Rod Thread Size | M8 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010, RoHS-compliant, VDMA24364-B2-L | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSNU | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Model Number 5224645 | ||
Action Type Double Acting | ||
Cushioning Type Elastic | ||
Body Material Alloy Steel | ||
Stroke Length 125mm | ||
Rod Type Piston | ||
Piston Rod Thread Size M8 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010, RoHS-compliant, VDMA24364-B2-L | ||
- COO (Country of Origin):
- CN
The Festo Round cylinder has compressed air operating medium according to ISO 8573 1 2010. This device has position sensing using proximity switches and it has elastic cushioning rings or plates at both ends. This device has piston, piston rod and cylinder barrel design and it supports class 2 corrosion resistance class CRC.
RoHS compliant
Moderate corrosion stress
Lubricated operation possible
VDMA24364 B1B2 L LABS conformity
