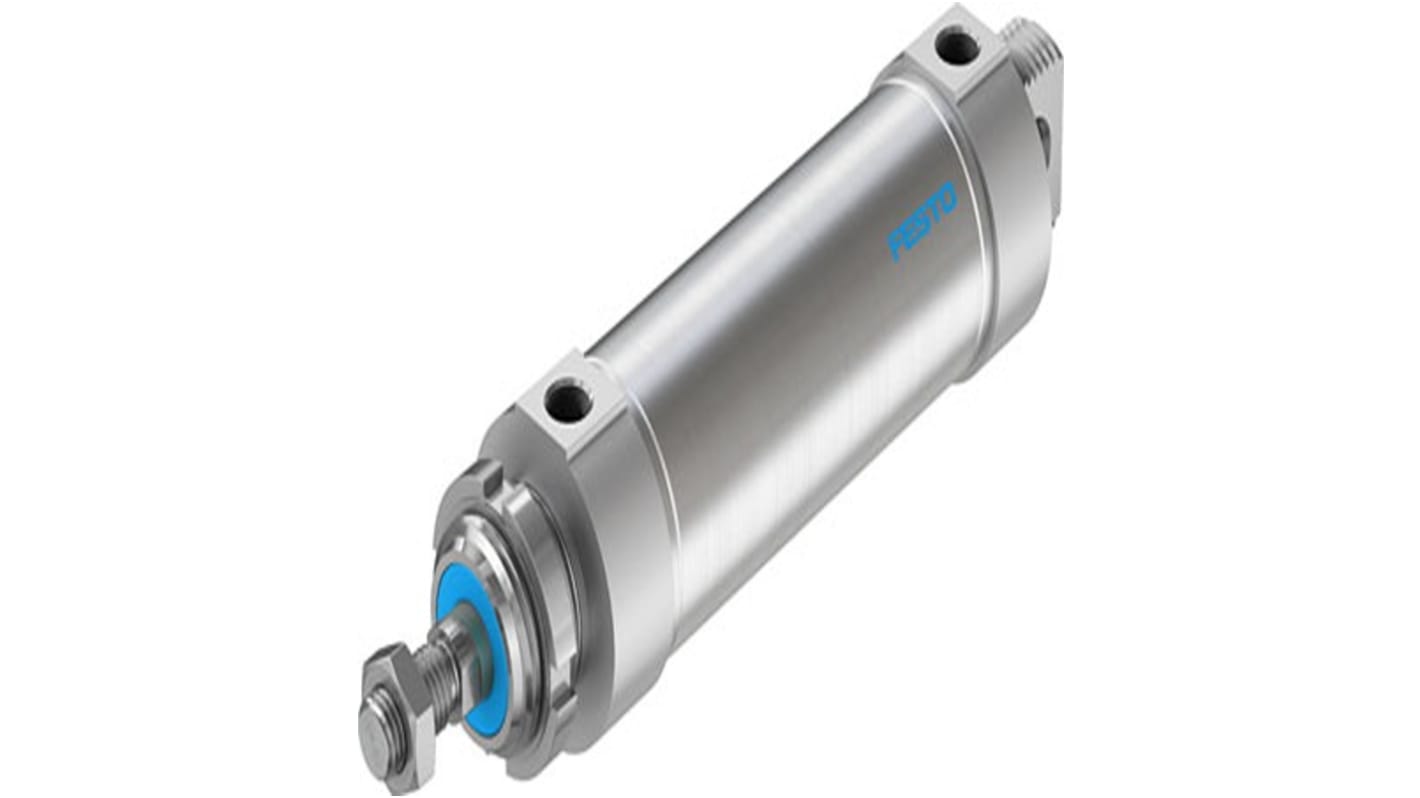

Festo 125 mm Pneumatic Piston Rod Cylinder - 559330 DSNU Series, Double Acting Acting
- RS Stock No.:
- 273-7646
- Mfr. Part No.:
- DSNU-63-125-PPS-A
- Brand:
- Festo
Subtotal (1 unit)*
£139.31
(exc. VAT)
£167.17
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £139.31 |
*price indicative
- RS Stock No.:
- 273-7646
- Mfr. Part No.:
- DSNU-63-125-PPS-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSNU | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Action Type | Double Acting | |
| Model Number | 559330 | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | High Alloy Stainless Steel | |
| Stroke Length | 125mm | |
| Piston Rod Thread Size | M16 x 1.5 | |
| Rod Type | Piston | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSNU | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Action Type Double Acting | ||
Model Number 559330 | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material High Alloy Stainless Steel | ||
Stroke Length 125mm | ||
Piston Rod Thread Size M16 x 1.5 | ||
Rod Type Piston | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
The Festo Round cylinder has compressed air operating medium according to ISO 8573 1 2010. This device has position sensing using proximity switches and self adjusting pneumatic end position cushioning. This device has piston, piston rod and cylinder barrel design and it supports class 2 corrosion resistance class CRC.
RoHS compliant
No adjustment required
Moderate corrosion stress
Lubricated operation possible
VDMA24364 B1B2 L LABS conformity
