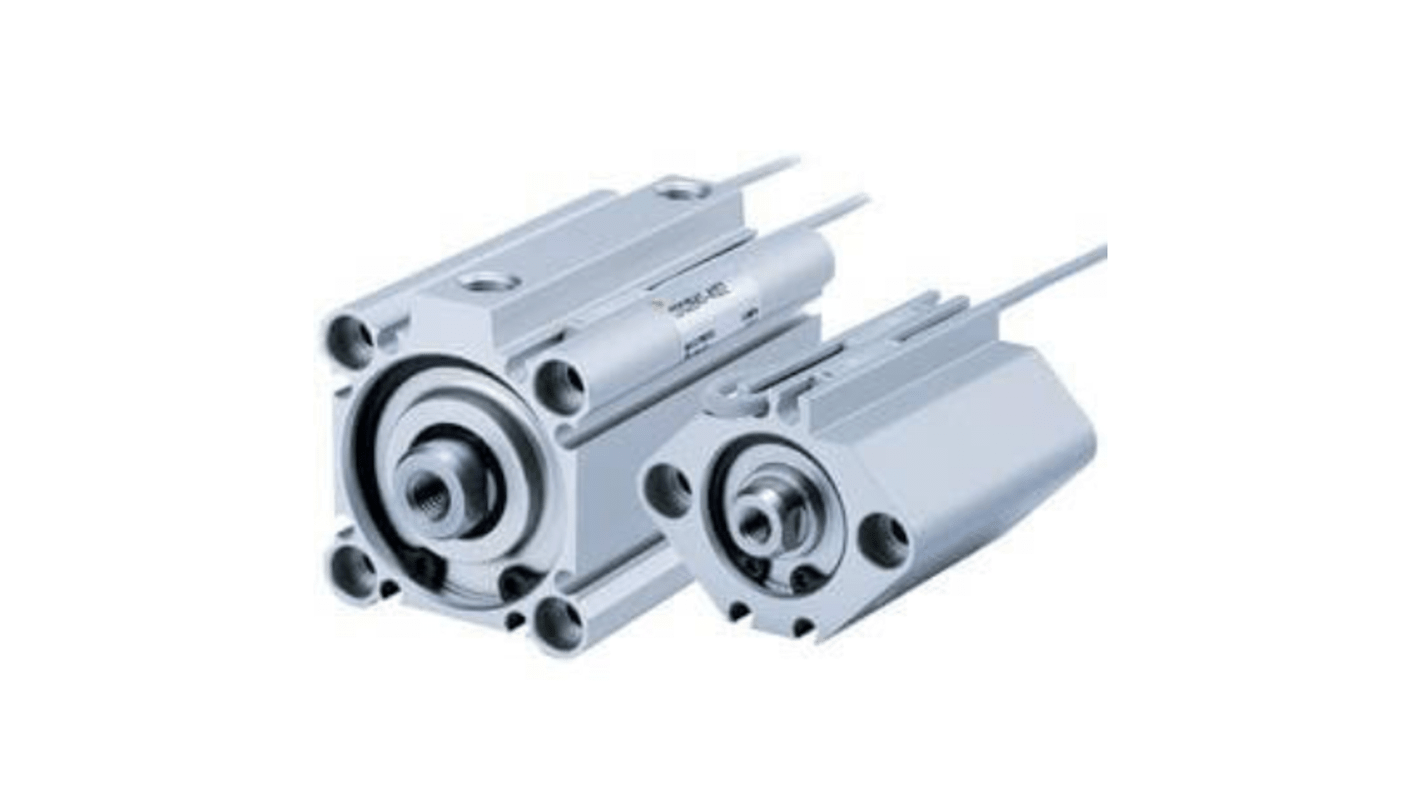

SMC Pneumatic Compact Cylinder - 45mm Bore, 40 mm CQ2 Series, Double Acting Acting
- RS Stock No.:
- 254-6933
- Mfr. Part No.:
- CDQ2B40TF-45DZ
- Brand:
- SMC
Subtotal (1 unit)*
£75.14
(exc. VAT)
£90.17
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.14 |
*price indicative
- RS Stock No.:
- 254-6933
- Mfr. Part No.:
- CDQ2B40TF-45DZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Compact Cylinder | |
| Series | CQ2 | |
| Bore Diameter | 45mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Aluminium Alloy | |
| Stroke Length | 40mm | |
| Maximum Operating Pressure | 1 Mpa | |
| Rod Type | Single | |
| Piston Rod Gender | Female | |
| Maximum Piston Speed | 500mm/s | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 1.16lb | |
| Standards/Approvals | ISO/21287 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Compact Cylinder | ||
Series CQ2 | ||
Bore Diameter 45mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Rubber Bumper | ||
Body Material Aluminium Alloy | ||
Stroke Length 40mm | ||
Maximum Operating Pressure 1 Mpa | ||
Rod Type Single | ||
Piston Rod Gender Female | ||
Maximum Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Weight 1.16lb | ||
Standards/Approvals ISO/21287 | ||
The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements.
Standard strokes up to 50 mm
Rubber cushion available
