SMC Pneumatic Compact Cylinder - 45mm Bore, 32 mm CQ2 Series, Double Acting Acting
- RS Stock No.:
- 254-6912
- Mfr. Part No.:
- CDQ2B32TF-45DZ
- Brand:
- SMC
Subtotal (1 unit)*
£58.45
(exc. VAT)
£70.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.45 |
*price indicative
- RS Stock No.:
- 254-6912
- Mfr. Part No.:
- CDQ2B32TF-45DZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | CQ2 | |
| Product Type | Pneumatic Compact Cylinder | |
| Action Type | Double Acting | |
| Bore Diameter | 45mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Aluminium Alloy | |
| Stroke Length | 32mm | |
| Maximum Operating Pressure | 1 Mpa | |
| Rod Type | Single | |
| Maximum Piston Speed | 500mm/s | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Gender | Female | |
| Maximum Operating Temperature | 70°C | |
| Weight | 9.22lb | |
| Standards/Approvals | ISO/21287 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series CQ2 | ||
Product Type Pneumatic Compact Cylinder | ||
Action Type Double Acting | ||
Bore Diameter 45mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Rubber Bumper | ||
Body Material Aluminium Alloy | ||
Stroke Length 32mm | ||
Maximum Operating Pressure 1 Mpa | ||
Rod Type Single | ||
Maximum Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Gender Female | ||
Maximum Operating Temperature 70°C | ||
Weight 9.22lb | ||
Standards/Approvals ISO/21287 | ||
- COO (Country of Origin):
- CN

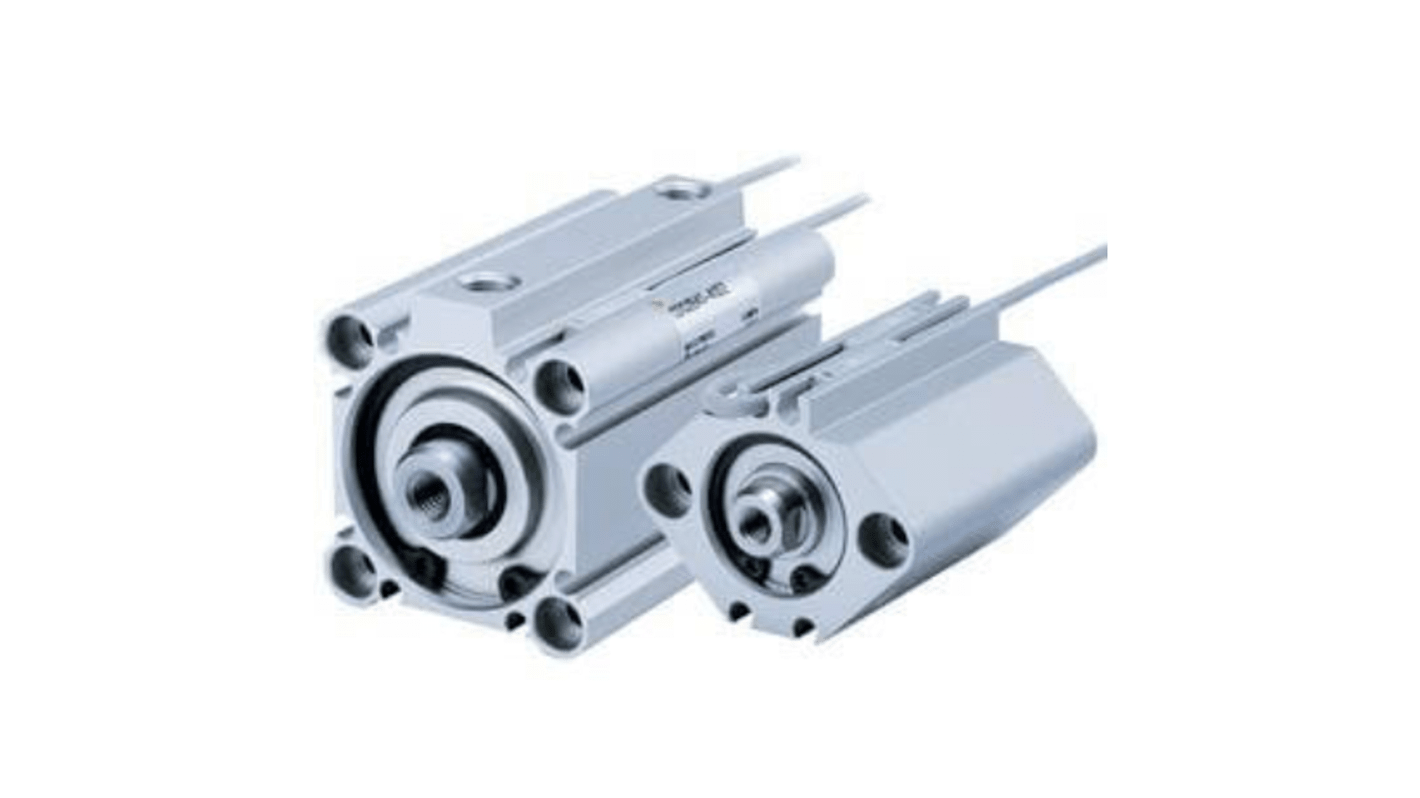

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements.
Standard strokes up to 50 mm
Rubber cushion available
