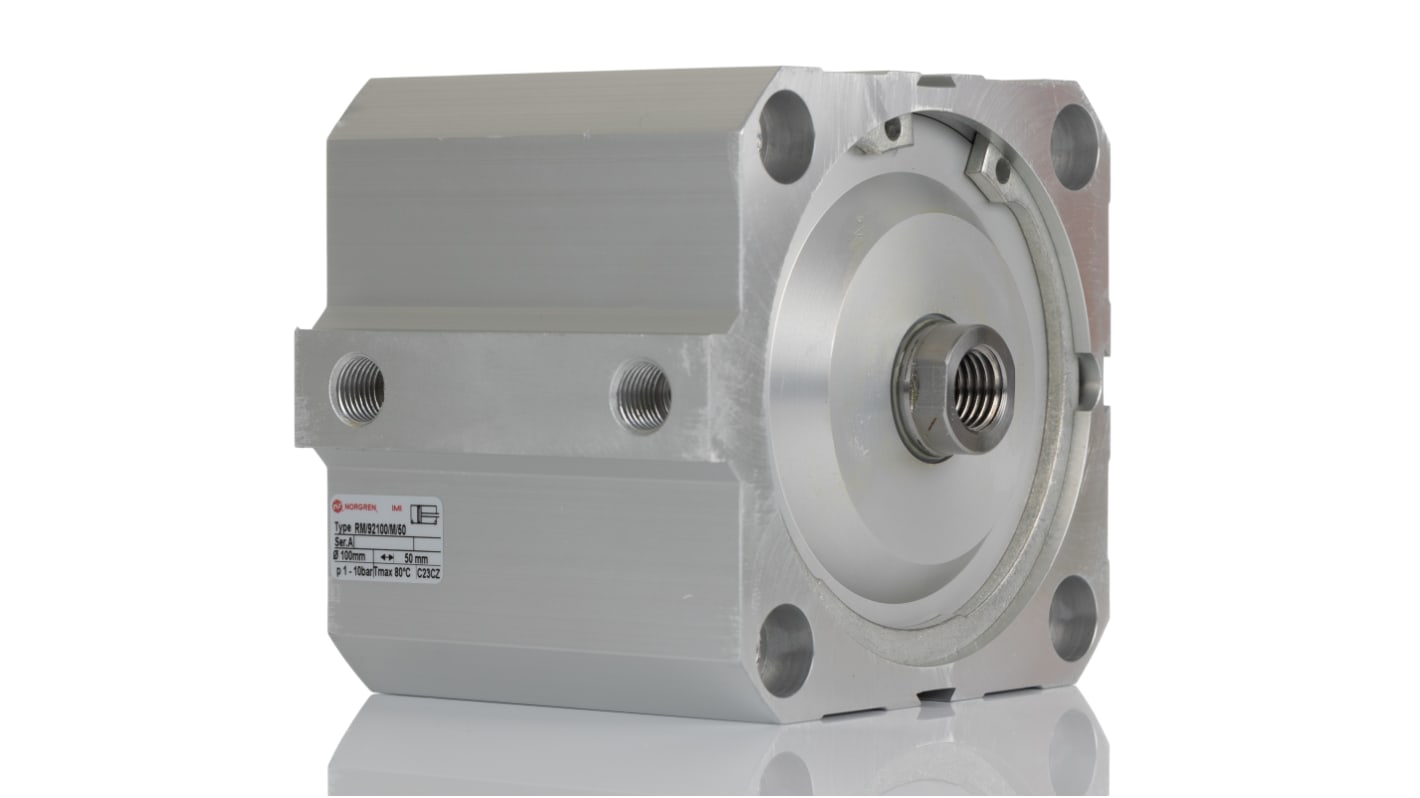

Norgren Pneumatic Cylinder - 100mm Bore, 50mm Stroke, RM/92100/M Series, Double Acting
- RS Stock No.:
- 220-4069
- Mfr. Part No.:
- RM/92100/M/50
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£258.69
(exc. VAT)
£310.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £258.69 |
5 - 9 | £253.51 |
10 + | £248.35 |
*price indicative
- RS Stock No.:
- 220-4069
- Mfr. Part No.:
- RM/92100/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RM/92100/M | |
Action | Double | |
Bore | 100mm | |
Stroke | 50mm | |
Dimensions | 125.25 x 116.5 x 125.25mm | |
Width | 116.5mm | |
Height | 125.25mm | |
Diameter | 100mm | |
Length | 125.25mm | |
Maximum Operating Pressure | 10 bar | |
Weight | 6kg | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RM/92100/M | ||
Action Double | ||
Bore 100mm | ||
Stroke 50mm | ||
Dimensions 125.25 x 116.5 x 125.25mm | ||
Width 116.5mm | ||
Height 125.25mm | ||
Diameter 100mm | ||
Length 125.25mm | ||
Maximum Operating Pressure 10 bar | ||
Weight 6kg | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Cylinder, G1/4 Port, 6.03kg Weight - RM/92000/M Series - RM/92100/M/50
Choose this IMI Norgren pneumatic cylinder to get compressed air moving in the right direction through your network. A pressurised supply is all you need to move the built-in rod out of the housing by 50mm, providing your system with a source of controlled linear motion. The unit is double-acting, meaning the piston moves in both directions, so you get wide functionality. The polyurethane seals are impact-resistant for protection against accidental dings and dents. Thanks to its maximum operating pressure of 10 bar, this cylinder is an ideal choice for medium-duty applications.
Features & Benefits
• Safe to use in challenging conditions where temperatures reach -5°C to +80°C
• Stainless-steel piston rod is resistant to corrosion, so it functions well in humid work areas
• G1/4 port size means it's easily compatible with standard pneumatic connectors
• Stainless-steel piston rod is resistant to corrosion, so it functions well in humid work areas
• G1/4 port size means it's easily compatible with standard pneumatic connectors
Applications
• Main engine controls
• Manufacturing industry
• Automotive sector
• Manufacturing industry
• Automotive sector
What are the dimensions of this pneumatic cylinder?
This compact unit measures 108.5 (L) x 116.5 (W) x 125.25mm (H), so you can mount it in small or awkward work areas.
