Norgren Pneumatic Cylinder - 20mm Bore, 50 mm RM/92020/M Series, Double Acting Acting
- RS Stock No.:
- 220-4032
- Mfr. Part No.:
- RM/92020/M/50
- Brand:
- Norgren
Subtotal (1 unit)*
£71.88
(exc. VAT)
£86.26
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.88 |
*price indicative
- RS Stock No.:
- 220-4032
- Mfr. Part No.:
- RM/92020/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Series | RM/92020/M | |
| Product Type | Pneumatic Cylinder | |
| Bore Diameter | 20mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Length | 50mm | |
| Stroke Length | 50mm | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -5°C | |
| Piston Rod Thread Size | M5 | |
| Rod Type | Double | |
| Piston Rod Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Width | 32mm | |
| Height | 35.5mm | |
| Weight | 700g | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Series RM/92020/M | ||
Product Type Pneumatic Cylinder | ||
Bore Diameter 20mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Length 50mm | ||
Stroke Length 50mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Piston Rod Thread Size M5 | ||
Rod Type Double | ||
Piston Rod Gender Female | ||
Maximum Operating Temperature 80°C | ||
Width 32mm | ||
Height 35.5mm | ||
Weight 700g | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ

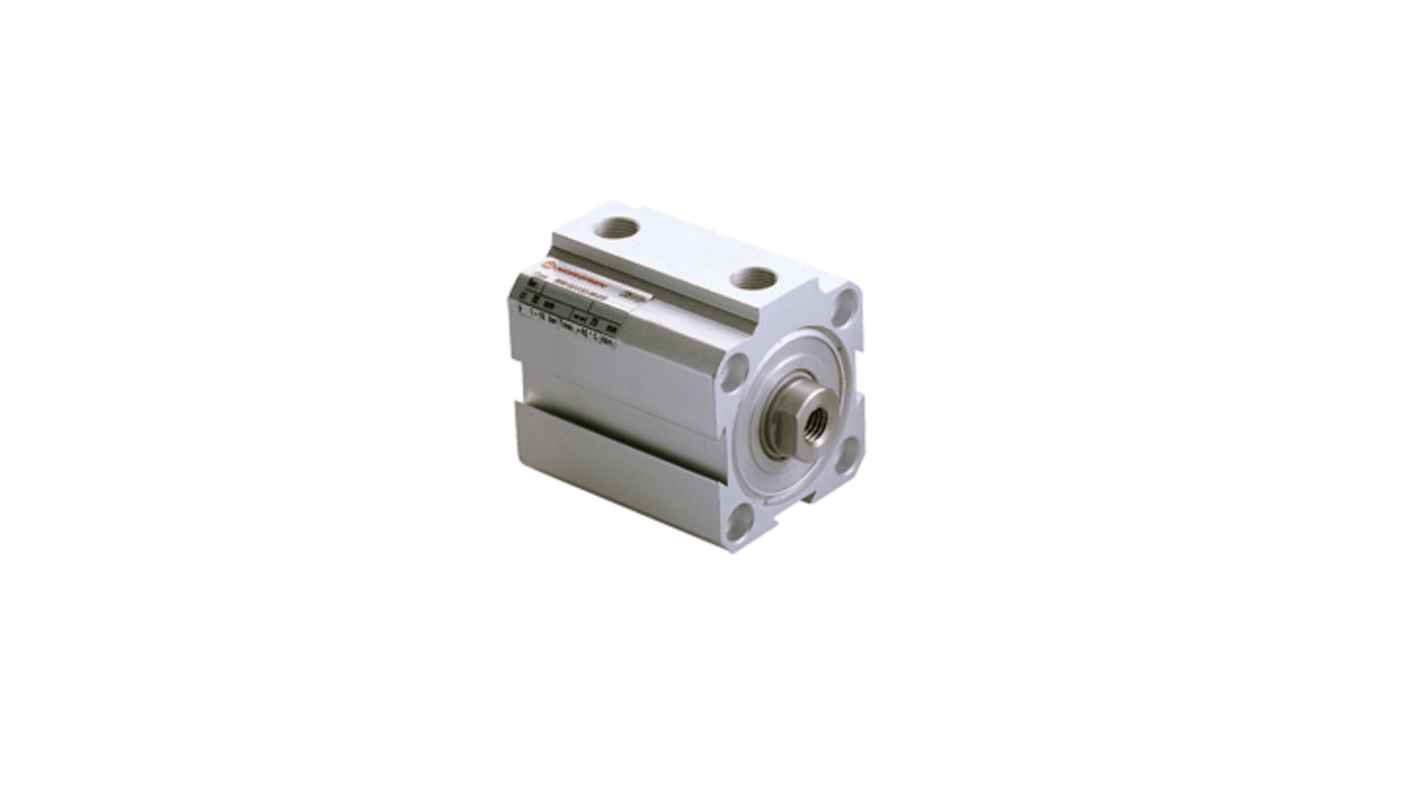

The IMI Norgren RM/92020/M/50 is a compact double acting short stroke cylinder. It has magnetic piston, it has stroke length of 50 mm and a cylinder diameter of 20mm.
One third the basic length of a corresponding ISO/VDMA model
Low friction, long life seal design
Fully non-corrodible specification
Standard magnetic piston for full control system versatility
