Norgren Pneumatic Roundline Cylinder - 26 mm Bore, 100 mm RM/8000/M Series, Double Acting Acting
- RS Stock No.:
- 218-0294
- Mfr. Part No.:
- RM/8026/M/100
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£79.64
(exc. VAT)
£95.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £79.64 |
| 5 - 9 | £78.06 |
| 10 + | £76.45 |
*price indicative
- RS Stock No.:
- 218-0294
- Mfr. Part No.:
- RM/8026/M/100
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Roundline Cylinder | |
| Series | RM/8000/M | |
| Bore Size | 26mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Stroke Length | 100mm | |
| Length | 100mm | |
| Maximum Operating Pressure | 10 bar | |
| Piston Rod Gender | Female | |
| Rod Type | Double | |
| Piston Rod Thread Size | M10 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 30mm | |
| Standards/Approvals | No | |
| Width | 30mm | |
| Weight | 0.307kg | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Roundline Cylinder | ||
Series RM/8000/M | ||
Bore Size 26mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Stroke Length 100mm | ||
Length 100mm | ||
Maximum Operating Pressure 10 bar | ||
Piston Rod Gender Female | ||
Rod Type Double | ||
Piston Rod Thread Size M10 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Height 30mm | ||
Standards/Approvals No | ||
Width 30mm | ||
Weight 0.307kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

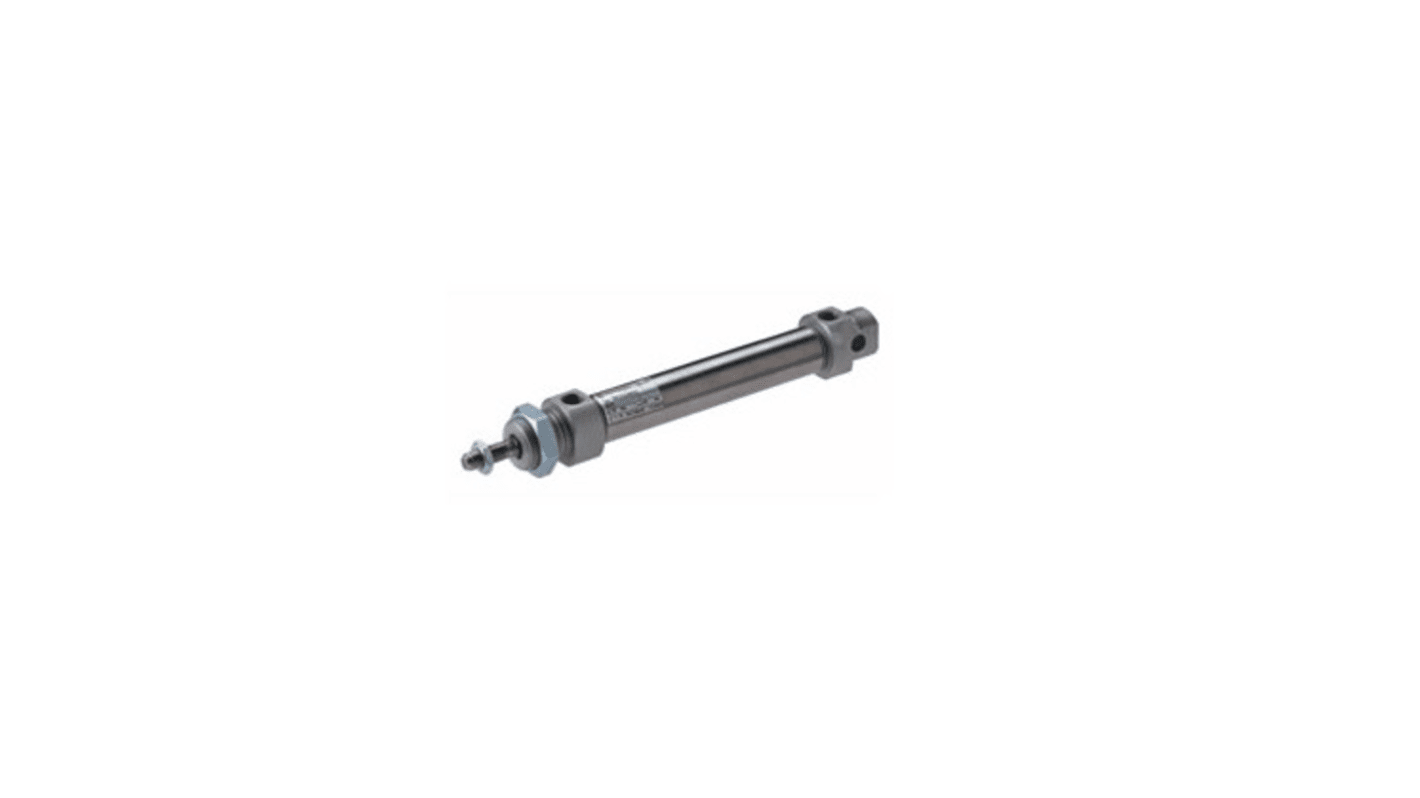

IMI Norgren RM/8026/M/100 is a ISO round line double acting cylinder. It has a magnetic piston and stroke length of 100 mm and a cylinder diameter of 26mm.
Conforms to ISO 6432
High strength, double crimped end cap design
Corrosion resistant
Buffer or adjustable cushioning
Nose mounting nut and piston rod locknut as standard
