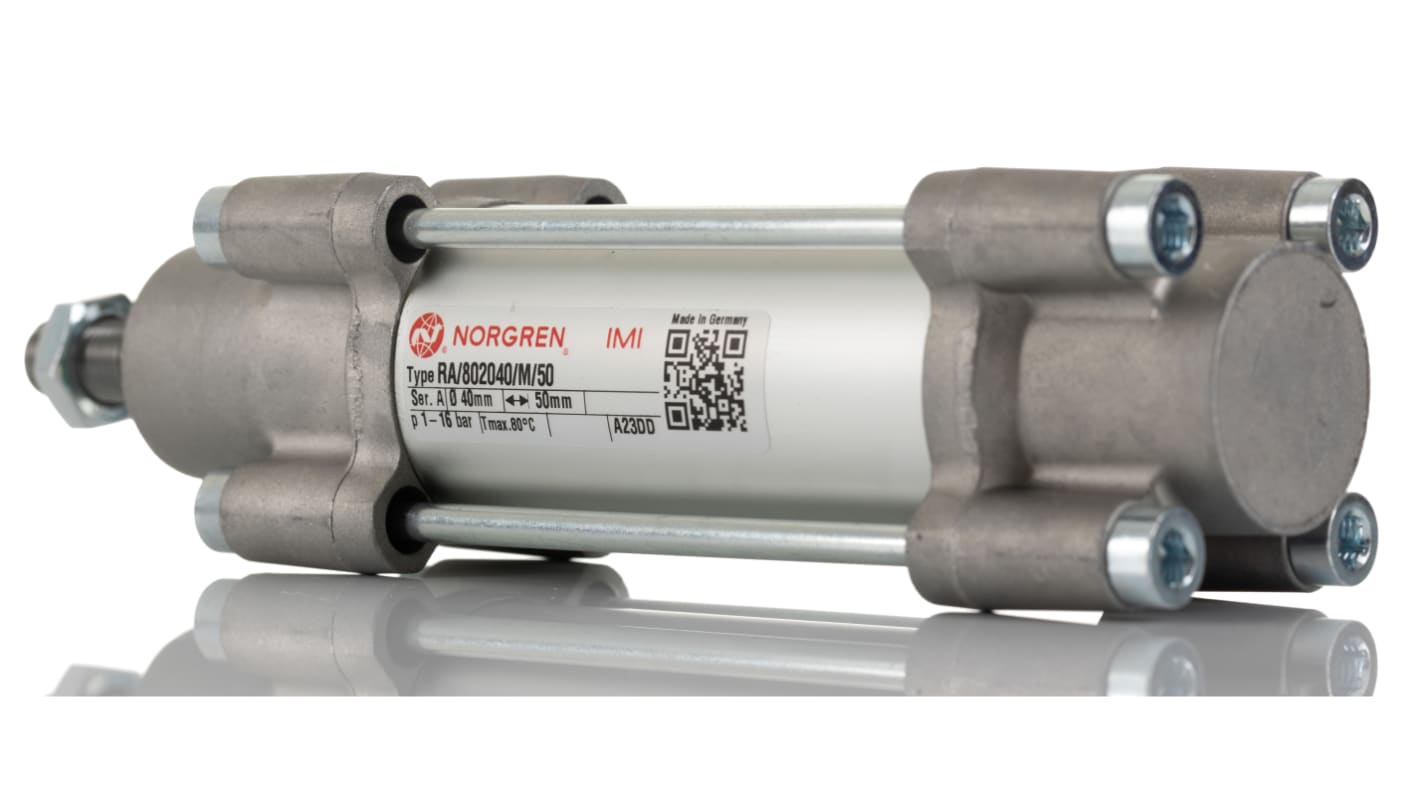

Norgren Double Acting Cylinder - 40mm Bore, 50mm Stroke, RA Series, Double Acting
- RS Stock No.:
- 218-0262
- Mfr. Part No.:
- RA/802040/M/50
- Brand:
- Norgren
Save 3% when you buy 10 units
Subtotal (1 unit)*
£122.18
(exc. VAT)
£146.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £122.18 |
5 - 9 | £119.73 |
10 + | £117.30 |
*price indicative
- RS Stock No.:
- 218-0262
- Mfr. Part No.:
- RA/802040/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RA | |
Action | Double | |
Bore | 40mm | |
Stroke | 50mm | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 162.5 x 53 x 53mm | |
Width | 53mm | |
Length | 162.5mm | |
Height | 53mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Test Weight | 0.65 kg @ 0 mm | |
Stroke Interval Weight | 0.08 kg @ 25 mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RA | ||
Action Double | ||
Bore 40mm | ||
Stroke 50mm | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 162.5 x 53 x 53mm | ||
Width 53mm | ||
Length 162.5mm | ||
Height 53mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 0.65 kg @ 0 mm | ||
Stroke Interval Weight 0.08 kg @ 25 mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Double-Acting Cylinder, 1 to 16 Bar Operating Pressure, G1/4 Port Thread Size - RA Series - RA/802040/M/50
Breeze through pneumatic positioning processes with this IMI Norgren double-acting cylinder. It operates using short 50mm strokes, letting you get to grips with precision handling tasks. As a double-action device, the unit takes in air to push and pull, providing snappy control over its motion. Finding tubing to fit the component is no problem thanks to its standardised G1/4 thread port. Built-in adjustable cushioning slows this cylinder down at the end of each stroke to minimise wear.
Features & Benefits
• Works with compressed, filtered and lubricated air for a go-to choice with regulation air supplies
• Hard-wearing stainless steel housing to stand up to impact
• Compact dimensions of just 102 (L) x 54.5 (W) x 54.5mm (H) to slip seamlessly into busy setups
• Airtight PUR seals stop leaks for system pressure stability
• Hard-wearing stainless steel housing to stand up to impact
• Compact dimensions of just 102 (L) x 54.5 (W) x 54.5mm (H) to slip seamlessly into busy setups
• Airtight PUR seals stop leaks for system pressure stability
Applications
• Material handling
• Clamping and pressing processes
• Automotive industry
• Clamping and pressing processes
• Automotive industry
How do I adjust the cushioning on this double acting cylinder?
For versatility, you can change the product's cushioning for intense applications by turning the needle's screw on its top side.
