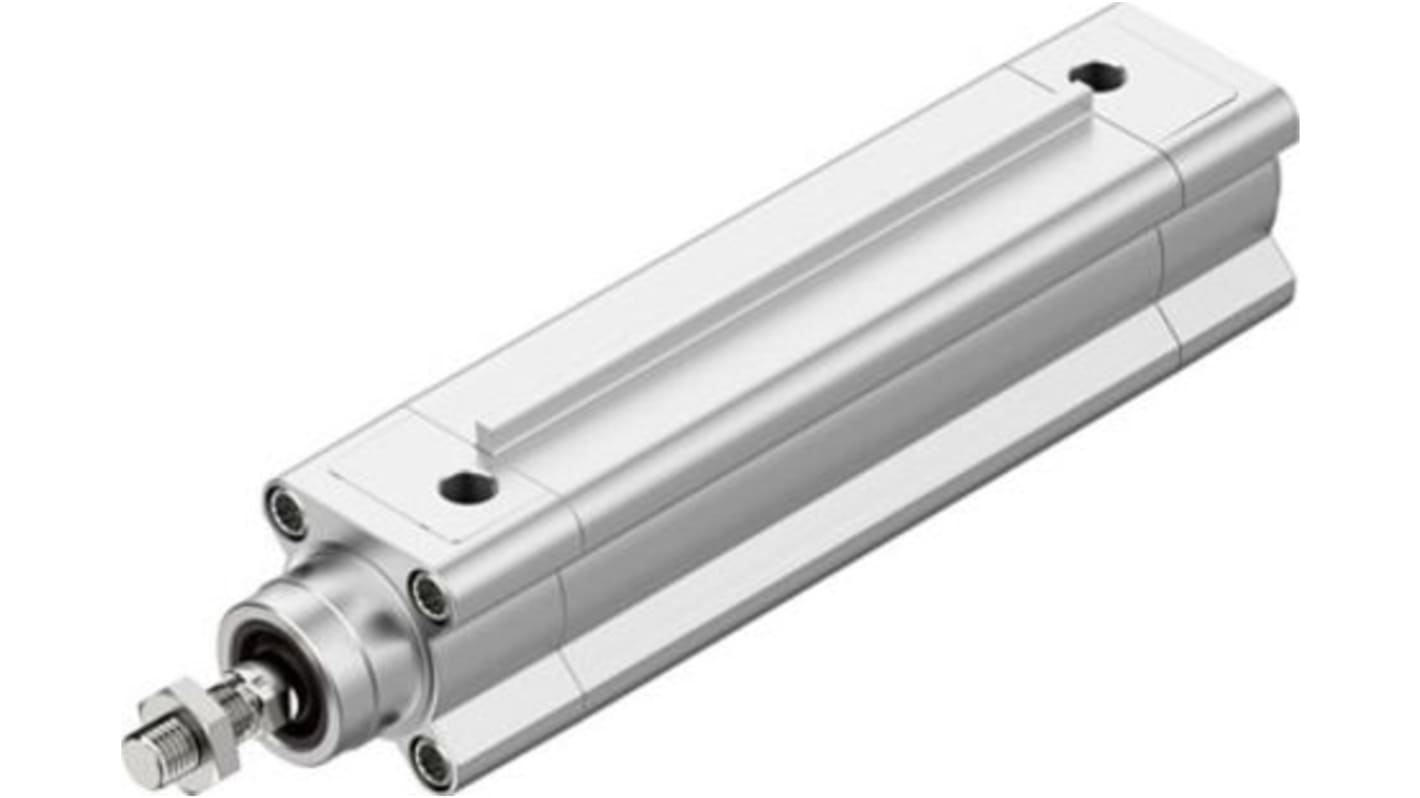

Festo 250 mm Pneumatic Profile Cylinder - 1778842 DSBF-C-32-250-PPSA-N3-R Series, Double Acting Acting
- RS Stock No.:
- 203-9957
- Mfr. Part No.:
- DSBF-C-32-250-PPSA-N3-R
- Brand:
- Festo
Subtotal (1 unit)*
£163.51
(exc. VAT)
£196.21
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £163.51 |
*price indicative
- RS Stock No.:
- 203-9957
- Mfr. Part No.:
- DSBF-C-32-250-PPSA-N3-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Profile Cylinder | |
| Series | DSBF-C-32-250-PPSA-N3-R | |
| Action Type | Double Acting | |
| Model Number | 1778842 | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 250mm | |
| Length | 17mm | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | M10 x 1.25 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 15552 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Profile Cylinder | ||
Series DSBF-C-32-250-PPSA-N3-R | ||
Action Type Double Acting | ||
Model Number 1778842 | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 250mm | ||
Length 17mm | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size M10 x 1.25 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 15552 | ||
- COO (Country of Origin):
- DE
The Festo ISO cylinder has double-acting pneumatic cylinder according to ISO 15552 suitable for filtered and lubricated compressed air, as well as non lubricated air. Its piston diameter is 32mm with 250mm of stroke size. The self-adjusting pneumatic end-position cushioning can mount in any position.
Ambient temperature -20 °C to 80 °C
Die-cast aluminium cover material
