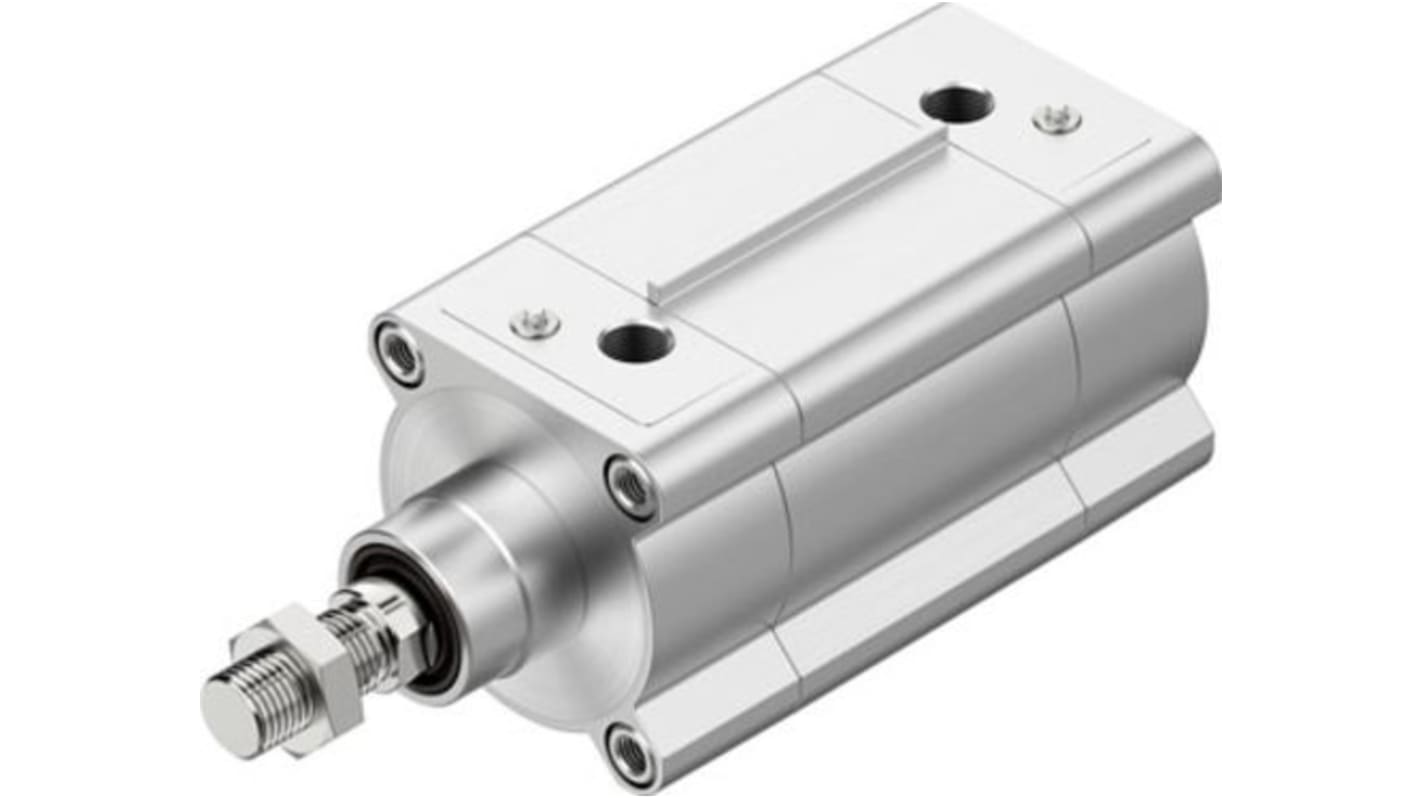

Festo 320 mm Pneumatic Profile Cylinder - 1778438 DSBF Series, Double Acting Acting
- RS Stock No.:
- 203-9754
- Mfr. Part No.:
- DSBF-C-80-320-PPVA-N3-R
- Brand:
- Festo
Subtotal (1 unit)*
£366.59
(exc. VAT)
£439.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £366.59 |
*price indicative
- RS Stock No.:
- 203-9754
- Mfr. Part No.:
- DSBF-C-80-320-PPVA-N3-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Profile Cylinder | |
| Series | DSBF | |
| Action Type | Double Acting | |
| Model Number | 1778438 | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Stroke Length | 320mm | |
| Length | 31mm | |
| Piston Rod Thread Standard | ISO 15552 | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | M20 x 1.5 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 15552, RoHS, ISO8573-1:2010 (7:4:4) | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Profile Cylinder | ||
Series DSBF | ||
Action Type Double Acting | ||
Model Number 1778438 | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Stroke Length 320mm | ||
Length 31mm | ||
Piston Rod Thread Standard ISO 15552 | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size M20 x 1.5 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 15552, RoHS, ISO8573-1:2010 (7:4:4) | ||
- COO (Country of Origin):
- DE
The Festo DSBF series ISO double-acting cylinder has a pneumatic cushioning adjustable at both ends via proximity sensor. It has stroke 320 mm and piston diameter 80 mm.
Piston rod thread = M20x1.5
Assembly position = any
Maximum operating pressure = 12 bar
