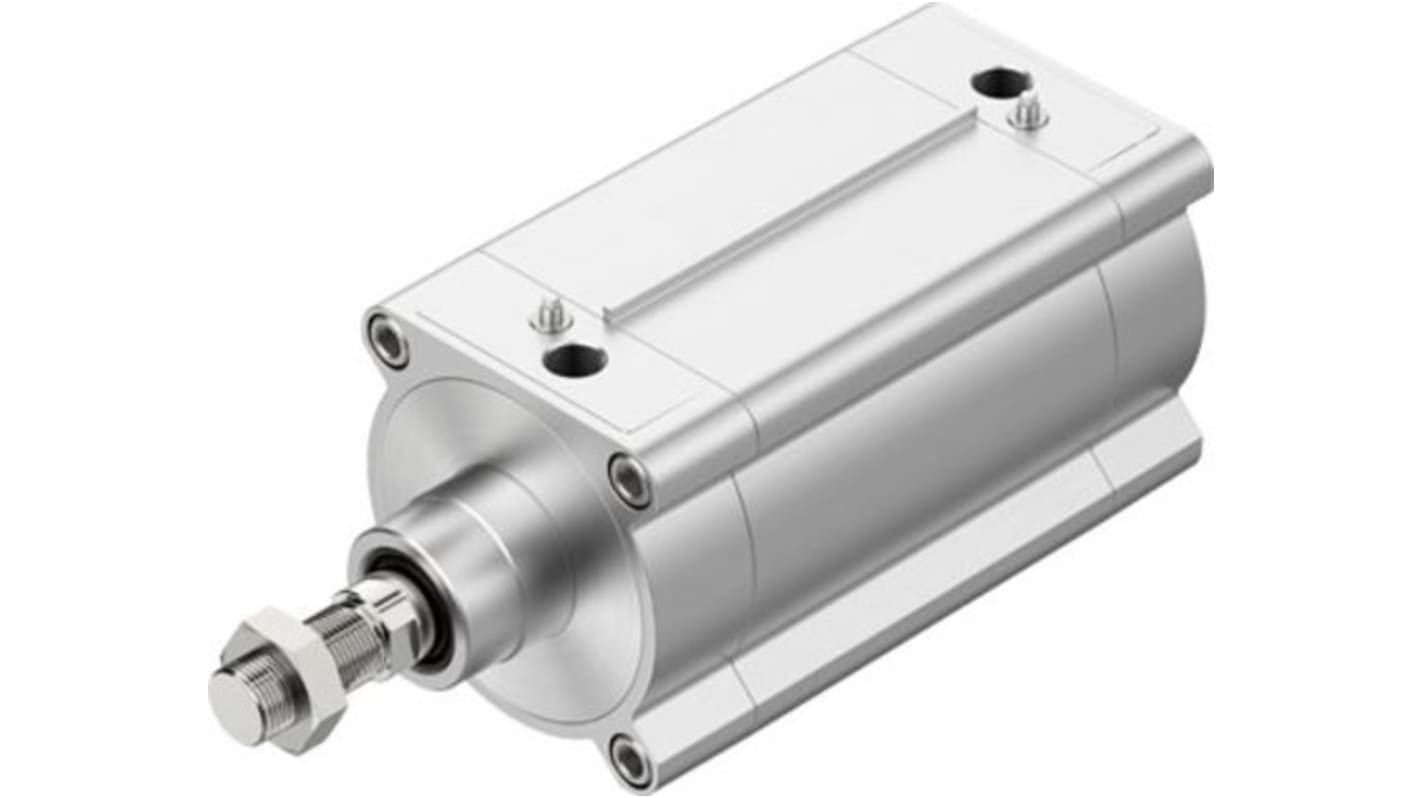

Festo 125 mm Pneumatic Profile Cylinder - 1785017 DSBF Series, Double Acting Acting
- RS Stock No.:
- 203-9703
- Mfr. Part No.:
- DSBF-C-125-125-PPVA-N3-R
- Brand:
- Festo
Subtotal (1 unit)*
£727.45
(exc. VAT)
£872.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £727.45 |
*price indicative
- RS Stock No.:
- 203-9703
- Mfr. Part No.:
- DSBF-C-125-125-PPVA-N3-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSBF | |
| Product Type | Pneumatic Profile Cylinder | |
| Action Type | Double Acting | |
| Model Number | 1785017 | |
| Mount Type | Female Thread | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 125mm | |
| Length | 45mm | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | M27 x 2 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, ISO 15552 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSBF | ||
Product Type Pneumatic Profile Cylinder | ||
Action Type Double Acting | ||
Model Number 1785017 | ||
Mount Type Female Thread | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 125mm | ||
Length 45mm | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size M27 x 2 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, ISO 15552 | ||
- COO (Country of Origin):
- HU
The Festo DSBF series ISO double-acting cylinder has a pneumatic cushioning adjustable at both ends via proximity sensor. It has stroke 125 mm and piston diameter 125 mm.
Piston rod thread = M27x2
Assembly position = any
Maximum operating pressure = 12 bar
