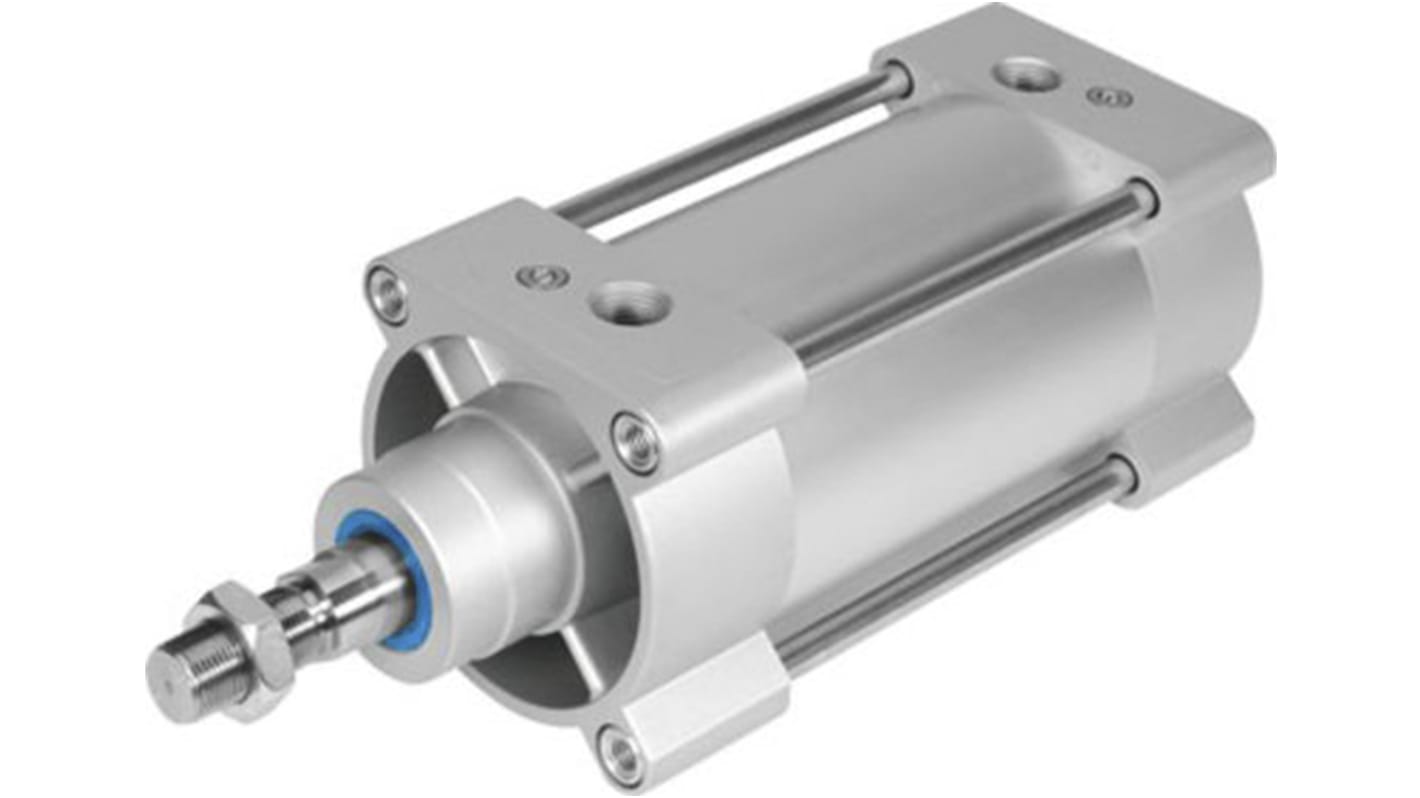

Festo Pneumatic Cylinder - 1646772, 80mm Bore, 40mm Stroke, DSBG-80-40-PPVA-N3 Series, Double Acting
- RS Stock No.:
- 203-6485
- Mfr. Part No.:
- DSBG-80-40-PPVA-N3
- Brand:
- Festo
Available to back order for despatch 12/06/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£295.93
(exc. VAT)
£355.12
(inc. VAT)
| Units | Per unit |
| 1 + | £295.93 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 203-6485
- Mfr. Part No.:
- DSBG-80-40-PPVA-N3
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
The Festo ISO cylinder has 40 mm stroke and 80 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.
Stroke 40 mm
Piston diameter 80 mm
Piston rod thread M20x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Piston diameter 80 mm
Piston rod thread M20x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Specifications
Attribute | Value |
|---|---|
| Stroke | 40mm |
| Bore | 80mm |
| Action | Double |
| Manufacturer Series | DSBG-80-40-PPVA-N3 |
| Model Number p | 1646772 |
