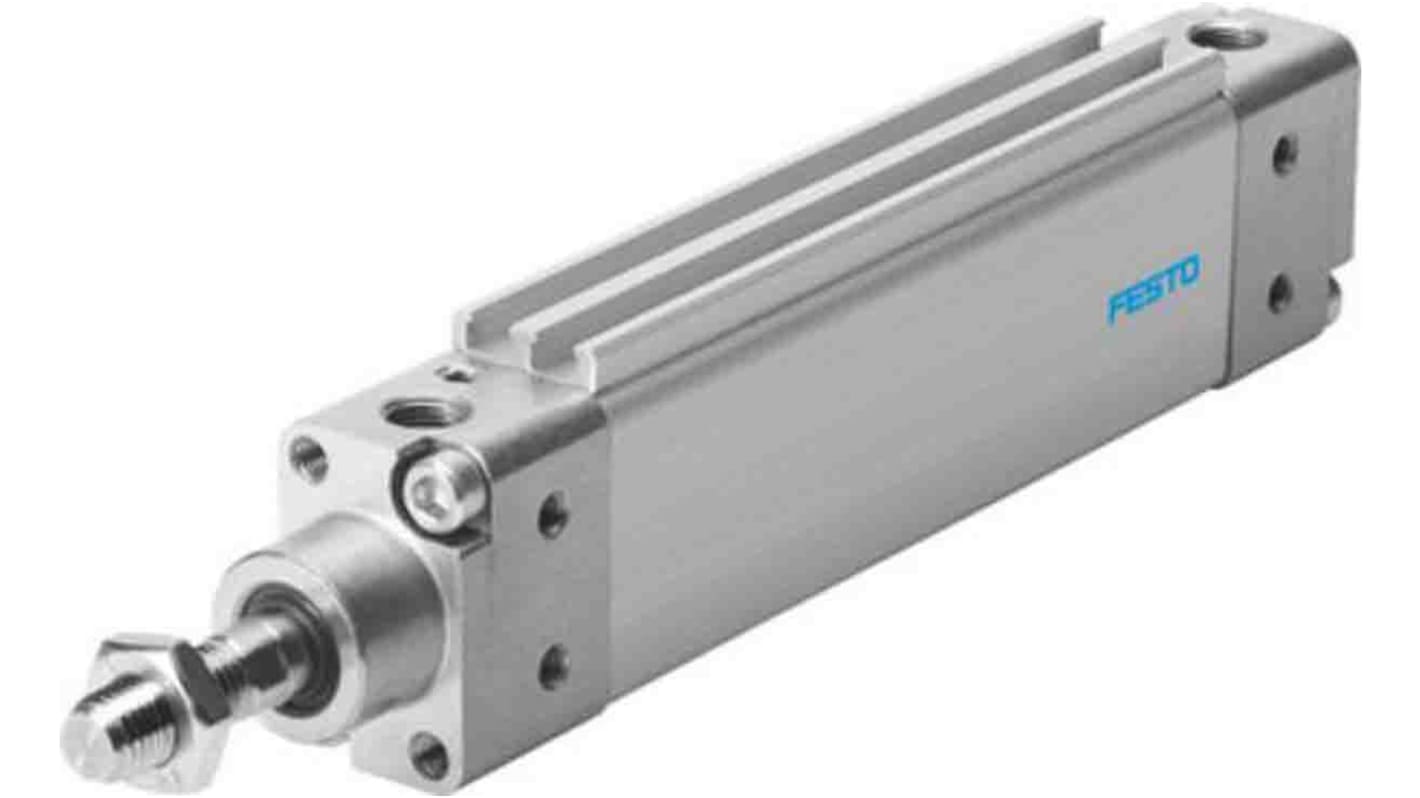

Festo Pneumatic Compact Cylinder - 151152, 16mm Bore, 200mm Stroke, DZH-16-200-PPV-A Series, Double Acting
- RS Stock No.:
- 202-9636
- Mfr. Part No.:
- DZH-16-200-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£226.08
(exc. VAT)
£271.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £226.08 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£182.52
(exc. VAT)
£219.02
(inc. VAT)
- RS Stock No.:
- 202-9636
- Mfr. Part No.:
- DZH-16-200-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DZH-16-200-PPV-A | |
Model Number p | 151152 | |
Bore | 16mm | |
Action | Double | |
Stroke | 200mm | |
Better World Product | Yes | |
Better World Claim | Repairable by the end user | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DZH-16-200-PPV-A | ||
Model Number p 151152 | ||
Bore 16mm | ||
Action Double | ||
Stroke 200mm | ||
Better World Product Yes | ||
Better World Claim Repairable by the end user | ||
- COO (Country of Origin):
- DE
The Festo flat cylinder DZH-16-200-PPV-A non-rotating, for proximity sensing, with adjustable cushioning at both ends. It has various mounting options, with or without additional mounting components.
Stroke 200 mm
Piston diameter (* 16 mm, * Equivalent diameter)
Max. angular deflection of piston rod +/- 3,1 deg
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Piston diameter (* 16 mm, * Equivalent diameter)
Max. angular deflection of piston rod +/- 3,1 deg
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
