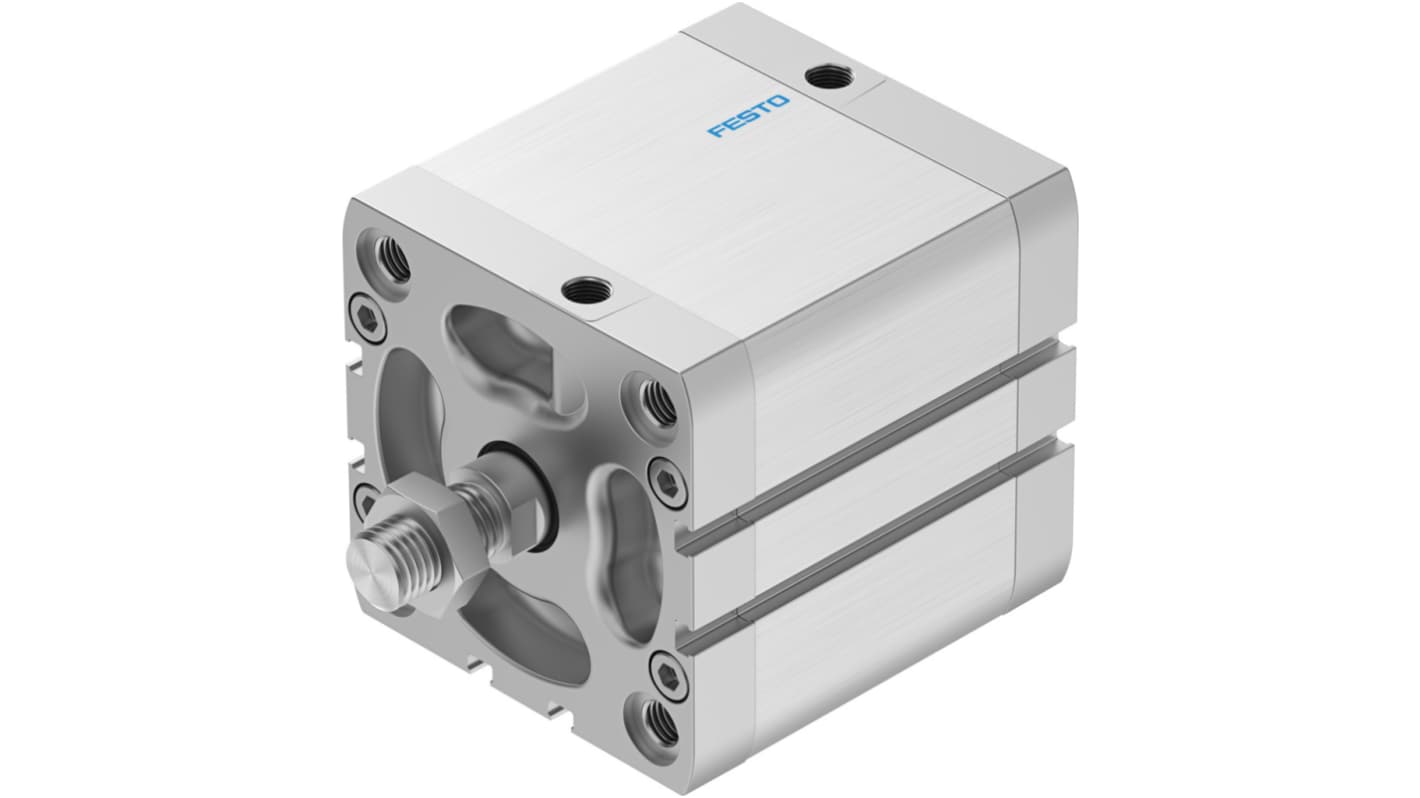

Festo Pneumatic Compact Cylinder - 536359, 80mm Bore, 50mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 202-8854
- Mfr. Part No.:
- ADN-80-50-A-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£184.29
(exc. VAT)
£221.15
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £184.29 |
*price indicative
- RS Stock No.:
- 202-8854
- Mfr. Part No.:
- ADN-80-50-A-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536359 | |
Stroke | 50mm | |
Action | Double | |
Bore | 80mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
VDMA Standard | VDMA 24364-B1/B2-L | |
Minimum Operating Temperature | -20°C | |
Weight | 1.5kg | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536359 | ||
Stroke 50mm | ||
Action Double | ||
Bore 80mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
VDMA Standard VDMA 24364-B1/B2-L | ||
Minimum Operating Temperature -20°C | ||
Weight 1.5kg | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo ADN Series Pneumatic Compact Cylinder, 80mm Bore, 50mm Stroke - ADN-80-50-A-P-A, Numeric Part Number: 536359
This pneumatic compact cylinder is designed for efficient actuation within automation processes. With a stroke length of 50mm and an 80mm bore, it is engineered for double action, providing reliable movement for various applications. The G 1/8 port connection ensures seamless integration into existing pneumatic systems, while its robust construction supports a maximum operating pressure of 10 bar.
Features & Benefits
• Double-acting design increases operational efficiency and versatility
• Elastic cushioning at both ends minimises impact and wear
• ISO 21287 compliant for guaranteed performance standards
• Operating temperature ranges from -20°C to +80°C for extensive usability
• Lubricated operation possible to enhance durability
• Maximum theoretical force of 3016 N ensures strong performance
• Elastic cushioning at both ends minimises impact and wear
• ISO 21287 compliant for guaranteed performance standards
• Operating temperature ranges from -20°C to +80°C for extensive usability
• Lubricated operation possible to enhance durability
• Maximum theoretical force of 3016 N ensures strong performance
Applications
• Used in automation systems requiring compact actuation solutions
• Ideal for processes in electronics and mechanical industries
• Utilised in systems needing precise position detection via proximity switches
• Suitable for environments with moderate corrosion stress
• Ideal for processes in electronics and mechanical industries
• Utilised in systems needing precise position detection via proximity switches
• Suitable for environments with moderate corrosion stress
What is the significance of the elastic cushioning in this cylinder?
The elastic cushioning provides a gentle stop at both ends of the stroke, reducing impact energy to 1.8 J, which prolongs the lifespan of the cylinder and lowers maintenance requirements.
How does the operating pressure affect the performance of the cylinder?
Operating pressure determines the force output
with a maximum of 10 bar, the cylinder achieves a substantial theoretical force on both the advance and return strokes, ensuring effective handling of loads in automation tasks.
What are the considerations for installation regarding mounting positions?
The cylinder supports various mounting options, including through-holes and female threads, allowing for flexible installation according to space and configuration needs.
Can the cylinder be used in environments with extreme temperatures?
It operates effectively within a temperature range of -20°C to +80°C, making it suitable for diverse applications without compromising performance.
