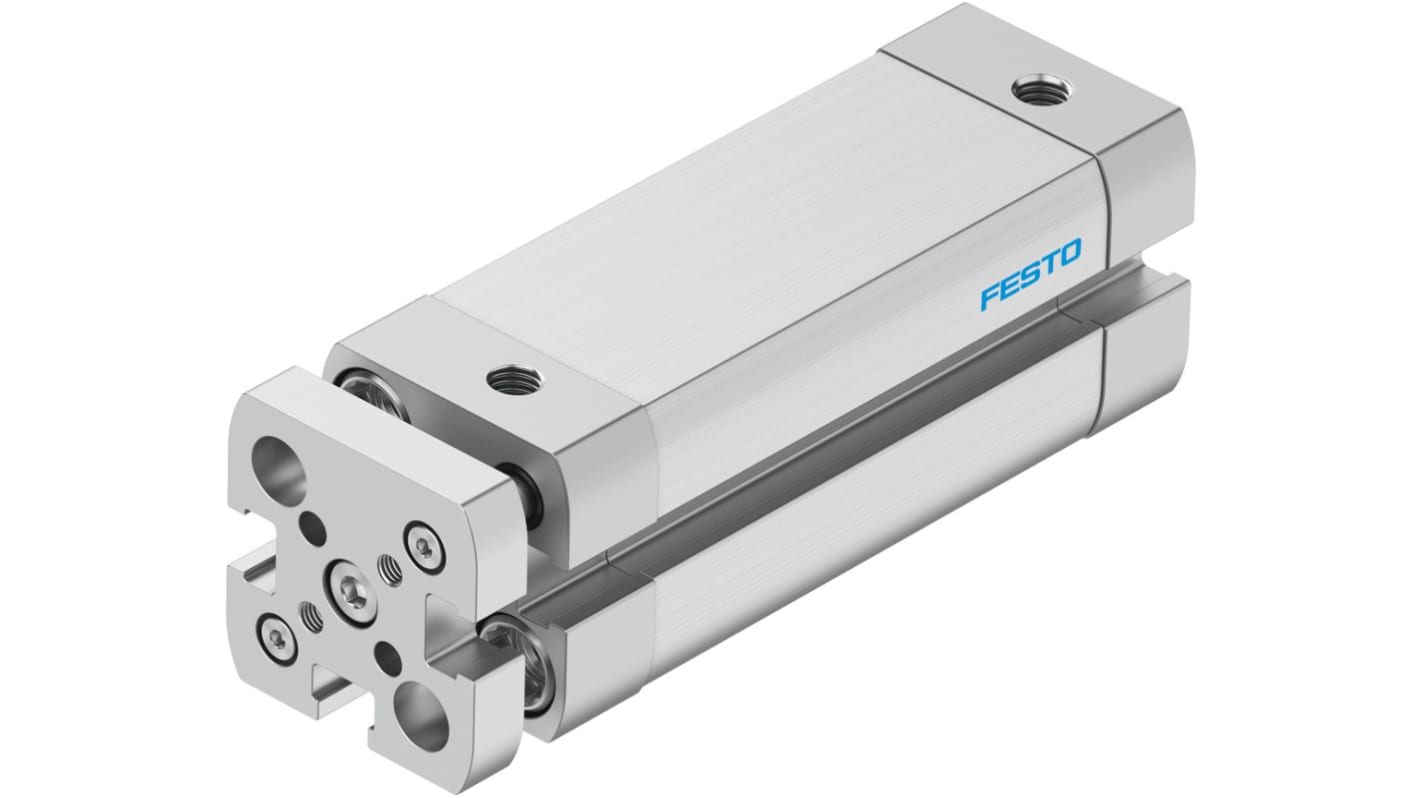

Festo Pneumatic Compact Cylinder - 554211, 12mm Bore, 40mm Stroke, ADNGF Series, Double Acting
- RS Stock No.:
- 202-2447
- Mfr. Part No.:
- ADNGF-12-40-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£89.13
(exc. VAT)
£106.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £89.13 |
*price indicative
- RS Stock No.:
- 202-2447
- Mfr. Part No.:
- ADNGF-12-40-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADNGF | |
Model Number p | 554211 | |
Stroke | 40mm | |
Action | Double | |
Bore | 12mm | |
Pneumatic Connection | M5 | |
Cushioning Type | Elastic | |
Diameter | 12mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Maximum Operating Temperature | +80°C | |
Weight | 133g | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | VDMA24364-B1/B2-L | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADNGF | ||
Model Number p 554211 | ||
Stroke 40mm | ||
Action Double | ||
Bore 12mm | ||
Pneumatic Connection M5 | ||
Cushioning Type Elastic | ||
Diameter 12mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Maximum Operating Temperature +80°C | ||
Weight 133g | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard VDMA24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
Festo ADNGF Series Pneumatic Compact Cylinder, Double Acting, 12mm Bore - ADNGF-12-40-P-A
This pneumatic compact cylinder from Festo with a 12mm bore and a 40mm stroke is a high-quality product designed to meet the needs of various industrial applications. Offering double action functionality it ensures efficient performance and reliable operation for automation needs.
Features & Benefits
• Allows for flexible cushioning rings/plates at both ends for smooth operation
• Built according to ISO 21287 standards, features a piston rod secured against rotation
• Offers protection against torque/guide with guide rod and yoke plate
• Operating pressure of 1.5 to 10 bar ensures versatility in different settings
• Suitable for operating medium of compressed air in accordance with ISO8573-1:2010 [7:4:4]
• Built according to ISO 21287 standards, features a piston rod secured against rotation
• Offers protection against torque/guide with guide rod and yoke plate
• Operating pressure of 1.5 to 10 bar ensures versatility in different settings
• Suitable for operating medium of compressed air in accordance with ISO8573-1:2010 [7:4:4]
Applications
• Ideal for use with proximity sensors for accurate position detection
• Suitable for a wide range of ambient temperatures from -20 to 80 °C
• Can be used for applications requiring moderate corrosion resistance
• Suitable for a wide range of ambient temperatures from -20 to 80 °C
• Can be used for applications requiring moderate corrosion resistance
Can it operate under a wide range of ambient temperatures?
Yes, this pneumatic compact cylinder can operate in temperatures ranging from -20 to 80 °C.
Will it fit with proximity sensors for position detection?
Yes, it is designed to work seamlessly with proximity sensors for accurate positioning.
Is lubricated operation possible with this cylinder?
Yes, lubricated operation is possible and subsequently required for further operation.
Can it withstand moderate corrosion stress?
Yes, it is built to withstand moderate corrosion stress, making it suitable for various environments.
