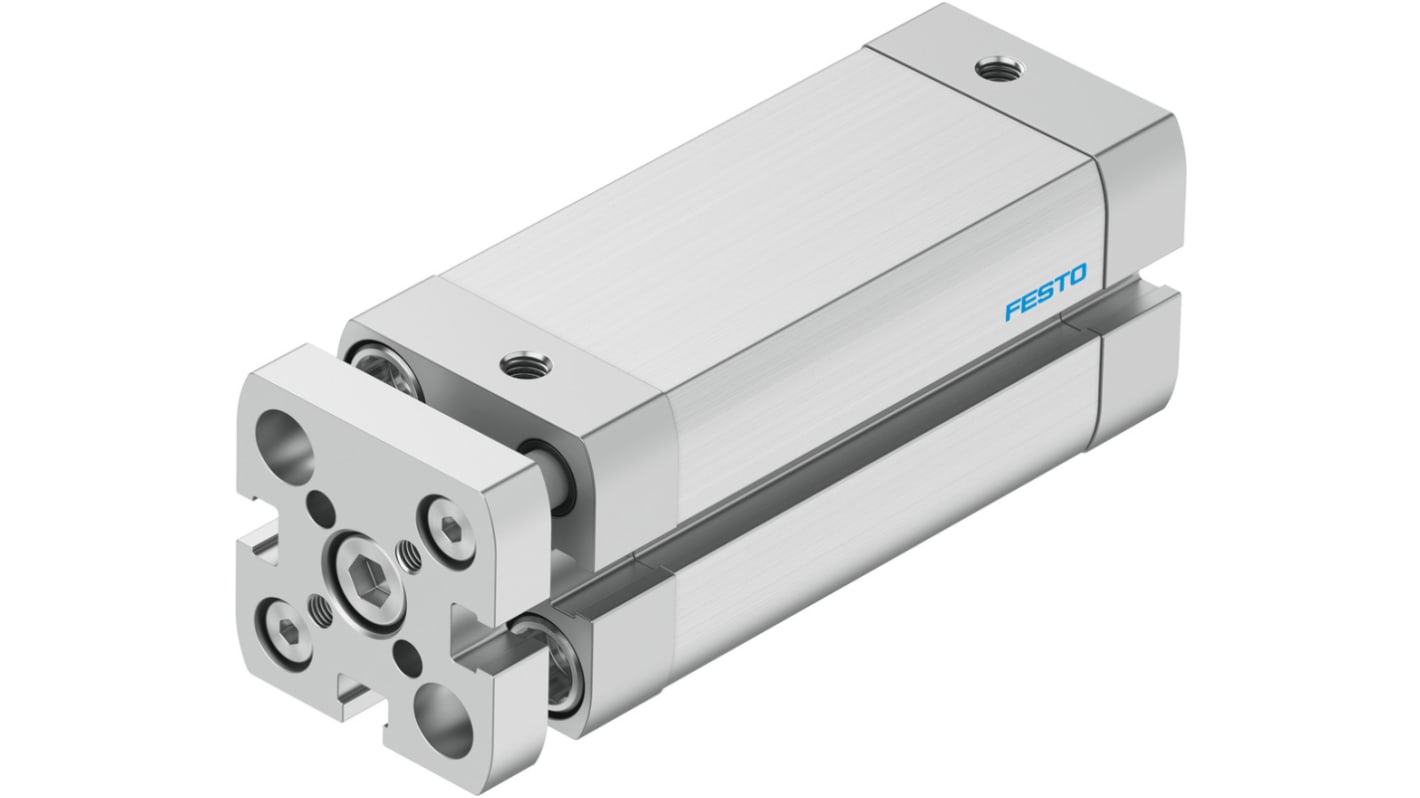

Festo Pneumatic Compact Cylinder - 554227, 20mm Bore, 50mm Stroke, ADNGF Series, Double Acting
- RS Stock No.:
- 202-2316
- Mfr. Part No.:
- ADNGF-20-50-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£101.15
(exc. VAT)
£121.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £101.15 |
*price indicative
- RS Stock No.:
- 202-2316
- Mfr. Part No.:
- ADNGF-20-50-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADNGF | |
Model Number p | 554227 | |
Bore | 20mm | |
Action | Double | |
Stroke | 50mm | |
Pneumatic Connection | M5 | |
Cushioning Type | Elastic | |
Diameter | 20mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | VDMA24364-B1/B2-L | |
Weight | 284g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADNGF | ||
Model Number p 554227 | ||
Bore 20mm | ||
Action Double | ||
Stroke 50mm | ||
Pneumatic Connection M5 | ||
Cushioning Type Elastic | ||
Diameter 20mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Weight 284g | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo ADNGF Series Pneumatic Compact Cylinder, Double Acting, 20mm Bore - ADNGF-20-50-P-A
This pneumatic compact cylinder from Festo, with a 20mm bore is designed for high-performance applications across various industries. It offers double-acting functionality, making it versatile for a range of automation and mechanical tasks.
Features & Benefits
• Double-acting cylinder for efficient operation
• Stroke of 50mm for precise movement control
• Flexible cushioning rings/plates for smooth operation
• Piston rod secured against rotation for stability
• Suitable for operating pressure of 1.5 to 10 bar
• Corrosion-resistant design for durability
• Wide operating temperature range of -20 to 80 °C
• Lightweight yet durable construction for easy handling
• Conforms to RoHS standards for environmental compliance
• Stroke of 50mm for precise movement control
• Flexible cushioning rings/plates for smooth operation
• Piston rod secured against rotation for stability
• Suitable for operating pressure of 1.5 to 10 bar
• Corrosion-resistant design for durability
• Wide operating temperature range of -20 to 80 °C
• Lightweight yet durable construction for easy handling
• Conforms to RoHS standards for environmental compliance
Applications
• Suitable for industrial automation tasks in electronics and electrical industries
• Essential for use in machinery requiring compact yet powerful cylinders
• Recommended for applications where corrosion resistance is crucial
• Can be used in a wide range of temperatures for versatility
• Essential for use in machinery requiring compact yet powerful cylinders
• Recommended for applications where corrosion resistance is crucial
• Can be used in a wide range of temperatures for versatility
Can it be used for high-pressure applications?
This cylinder is suitable for operating pressures from 1.5 to 10 bar, making it ideal for various industrial applications.
Will it require additional lubrication for smooth operation?
The cylinder is designed for lubricated operation, ensuring optimal performance throughout its lifespan.
Is it suitable for harsh environments with temperature fluctuations?
Yes, the cylinder can operate in temperatures ranging from -20 to 80 °C, making it suitable for a variety of conditions.
Can it be used in applications requiring precise positioning?
The cylinder's cushioning rings/plates and guide rod design allow for precise movement control, making it suitable for tasks requiring accuracy.
Does it come with protection against corrosion?
Yes, it has a corrosion resistance classification of CRC 2, ensuring long-lasting performance even in corrosive environments.
