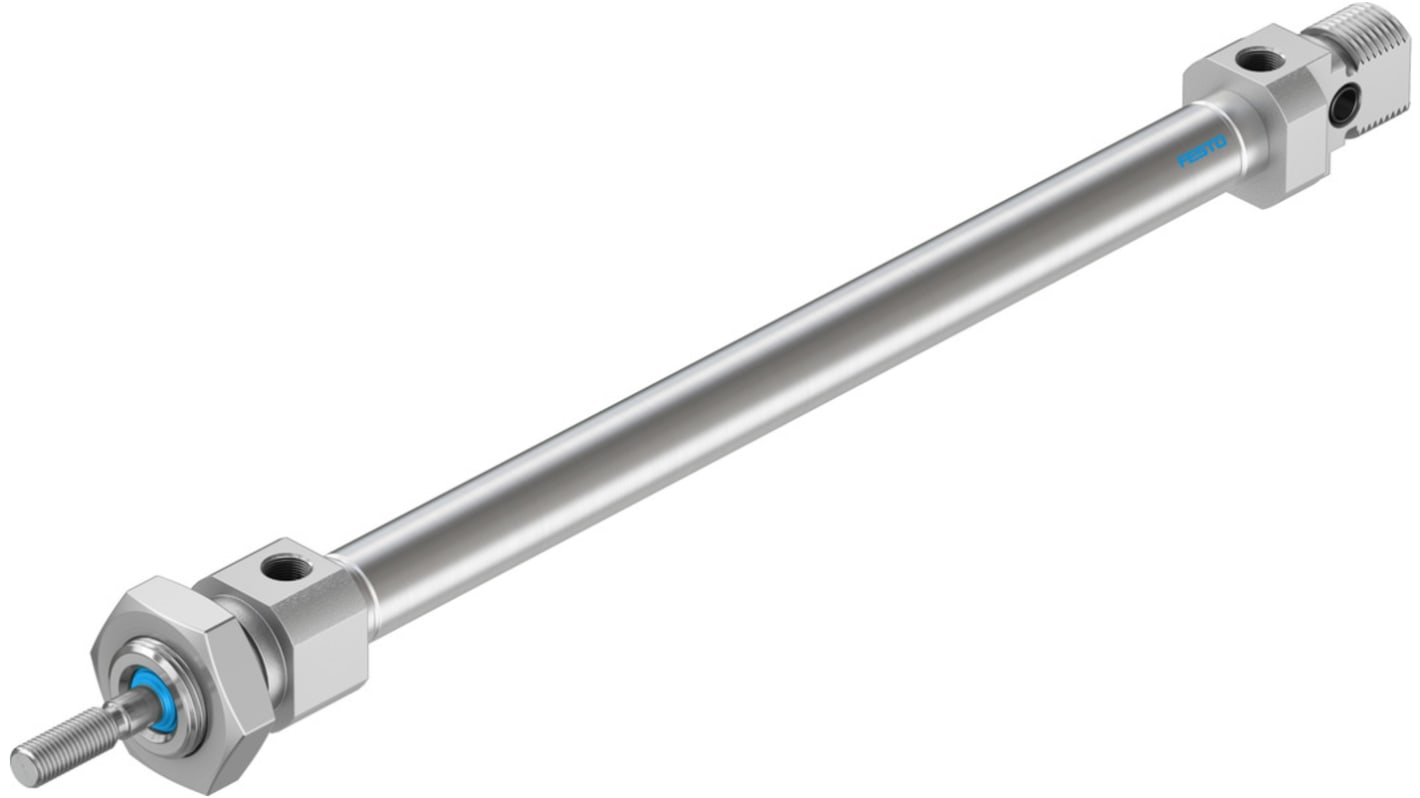

Festo Pneumatic Piston Rod Cylinder - 19182, 8mm Bore, 100mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 202-1730
- Mfr. Part No.:
- DSNU-8-100-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£39.68
(exc. VAT)
£47.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.68 |
*price indicative
- RS Stock No.:
- 202-1730
- Mfr. Part No.:
- DSNU-8-100-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19182 | |
Action | Double | |
Bore | 8mm | |
Stroke | 100mm | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Test Weight | 34.6 (At 0 mm Stroke) g | |
VDMA Standard | VDMA24364-B1/B2-L | |
Stroke Interval Weight | 2.4 (At 10 mm Stroke) g | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19182 | ||
Action Double | ||
Bore 8mm | ||
Stroke 100mm | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Test Weight 34.6 (At 0 mm Stroke) g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Stroke Interval Weight 2.4 (At 10 mm Stroke) g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 0.03J Impact Energy at End Position, High Alloy Steel Construction - DSNU-8-100-P-A
Give loads on your industrial systems the push they need with this pneumatic piston rod cylinder from Festo. It's a double-acting unit, so its forward and backward thrusts are controlled by compressed air alternating between its two ports. The unit's piston extends through 100mm, making it the right choice for short-stroke operations. Harsh settings and mechanical impacts are no problem, thanks to the component's dust-beating NBR seals and wrought aluminium alloy housing. M5 pneumatic connection ports make installation a walk in the park.
Features & Benefits
• Mount it in any position to match your design
• Advance stroke force of 30.2N and return force of 22.6N to suit low-impact operations
• Works without a glitch in operating pressures ranging between 1.5 and 10 bar for versatility
• Can be paired with a proximity sensor for position detection and automated operation
• Advance stroke force of 30.2N and return force of 22.6N to suit low-impact operations
• Works without a glitch in operating pressures ranging between 1.5 and 10 bar for versatility
• Can be paired with a proximity sensor for position detection and automated operation
Applications
• Automotive assembly
• Medical equipment
• Process and packaging plants
• Distribution centres
• Medical equipment
• Process and packaging plants
• Distribution centres
What maintenance does this cylinder need?
Regular inspection and cleaning will keep this unit in good shape. You can use it with lubricated media to boost the smooth running of its moving parts.
