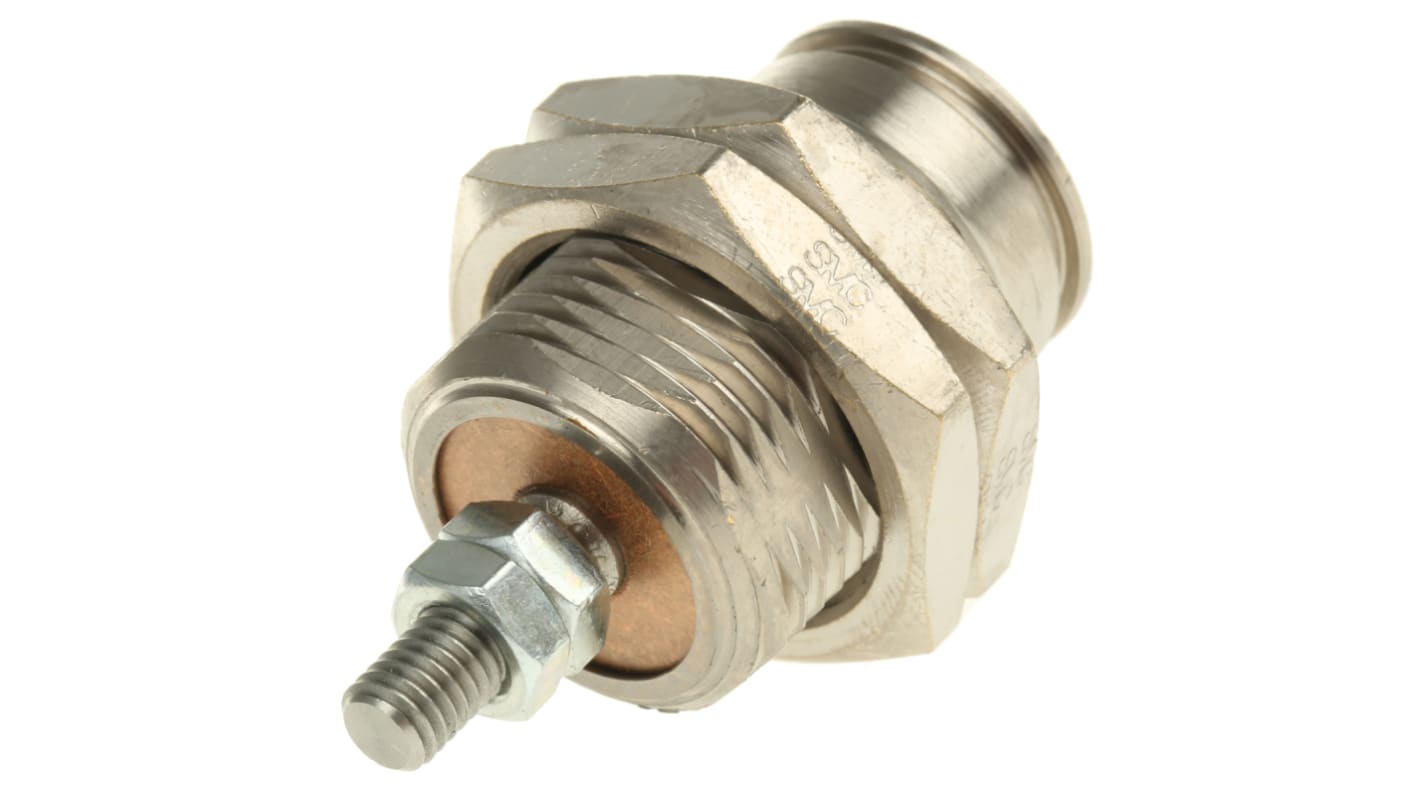

SMC Pneumatic Piston Rod Cylinder - 15mm Bore, 10mm Stroke, CJP Series, Single Acting

View this category
Bulk discount available

Subtotal (1 unit)*

£30.09

(exc. VAT)

£36.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 8 unit(s) shipping from 01 October 2025
  • Plus 6 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£30.09
5 - 9£28.33
10 +£27.15

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SMC Pneumatic Piston Rod Cylinder - 15mm Bore, 15mm Stroke, CJP Series, Single Acting
RS Stock No.
183-4012

Each

£30.09

(exc. VAT)

£36.11

(inc. VAT)

RS Stock No.:
183-4006
Mfr. Part No.:
CJPB15-10H6
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Manufacturer Series

CJP

Bore

15mm

Action

Single

Stroke

10mm

Port Connection

M5 x 0.8

Cushioning Type

Not Cushioned

Dimensions

43.5 x 27 x 31mm

Length

43.5mm

Height

31mm

Width

27mm

Maximum Operating Pressure

0.7 MPa

Piston Speed

50 → 500mm/s

Minimum Operating Temperature

-10°C

Weight

82g

Maximum Operating Temperature

+70°C

RoHS Status: Exempt

COO (Country of Origin):
JP

SMC CJP


Miniature pin cylinders for panel mount. All cylinders are single acting with spring return.

Lubrication not required
Threaded rod-end style
Non-cushioned
Proof pressure 10.5 bar
Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max)
Ambient and fluid temperature 5°C to 60°C
Stroke tolerance: +1.0mm

Note

Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).
