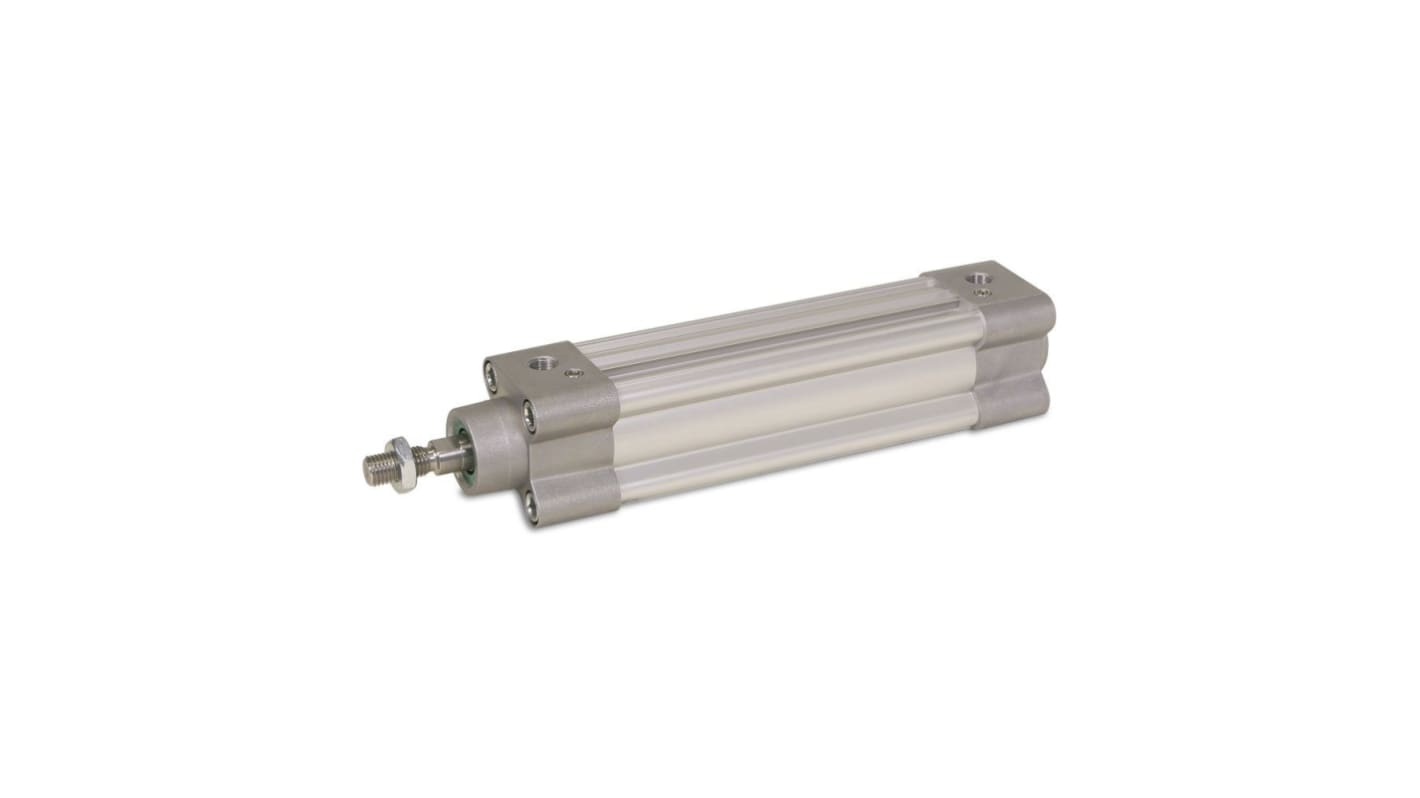

Parker Pneumatic Piston Rod Cylinder - 40mm Bore, 125mm Stroke, P1F-S Series, Double Acting
- RS Stock No.:
- 180-9689
- Mfr. Part No.:
- P1F-S040MS-0125-0000
- Brand:
- Parker
Subtotal (1 unit)*
£130.14
(exc. VAT)
£156.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £130.14 |
*price indicative
- RS Stock No.:
- 180-9689
- Mfr. Part No.:
- P1F-S040MS-0125-0000
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Manufacturer Series | P1F-S | |
Bore | 40mm | |
Stroke | 125mm | |
Action | Double | |
Port Connection | G 1/4 | |
Dimensions | 284 x 53 x 53mm | |
Width | 53mm | |
Length | 284mm | |
Height | 53mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6431, 15552 | |
Test Weight | 0.74 kg @ 0 mm | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 0.32 kg @ 100 mm | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Parker | ||
Manufacturer Series P1F-S | ||
Bore 40mm | ||
Stroke 125mm | ||
Action Double | ||
Port Connection G 1/4 | ||
Dimensions 284 x 53 x 53mm | ||
Width 53mm | ||
Length 284mm | ||
Height 53mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6431, 15552 | ||
Test Weight 0.74 kg @ 0 mm | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 0.32 kg @ 100 mm | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Non standard strokes up to 2000 mm.
