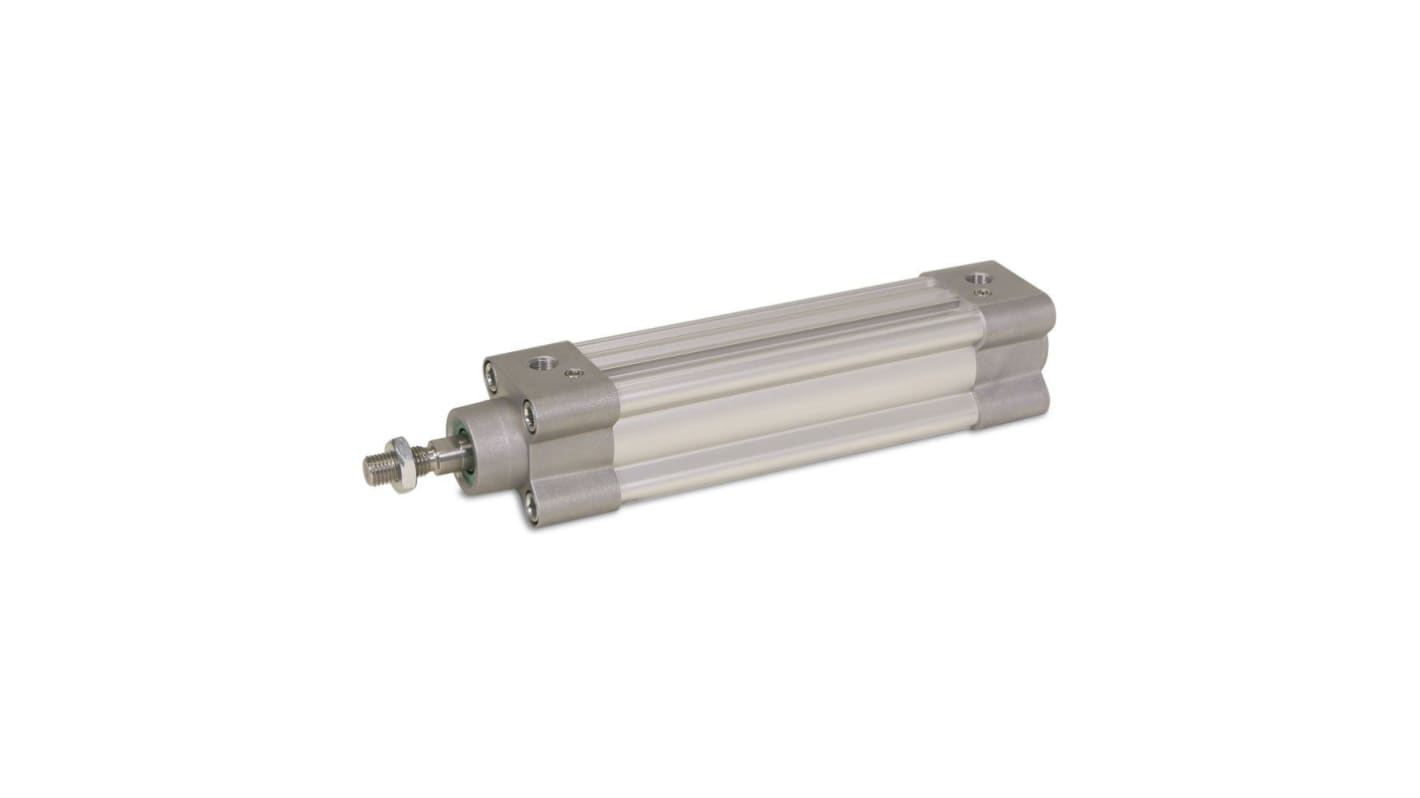

Parker Pneumatic Piston Rod Cylinder - 80mm Bore, 100mm Stroke, P1F-S Series, Double Acting
- RS Stock No.:
- 180-9695
- Mfr. Part No.:
- P1F-S080MS-0100-0000
- Brand:
- Parker
Subtotal (1 unit)*
£226.64
(exc. VAT)
£271.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £226.64 |
*price indicative
- RS Stock No.:
- 180-9695
- Mfr. Part No.:
- P1F-S080MS-0100-0000
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Manufacturer Series | P1F-S | |
Action | Double | |
Bore | 80mm | |
Stroke | 100mm | |
Port Connection | G 3/8 | |
Dimensions | 314 x 94 x 94mm | |
Length | 314mm | |
Width | 94mm | |
Height | 94mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6431, 15552 | |
Stroke Interval Weight | 0.73 kg @ 100 mm | |
VDMA Standard | 24562 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Test Weight | 2.5 kg @ 0 mm | |
Select all | ||
---|---|---|
Brand Parker | ||
Manufacturer Series P1F-S | ||
Action Double | ||
Bore 80mm | ||
Stroke 100mm | ||
Port Connection G 3/8 | ||
Dimensions 314 x 94 x 94mm | ||
Length 314mm | ||
Width 94mm | ||
Height 94mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6431, 15552 | ||
Stroke Interval Weight 0.73 kg @ 100 mm | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Test Weight 2.5 kg @ 0 mm | ||
- COO (Country of Origin):
- DE
Non standard strokes up to 2000 mm.
