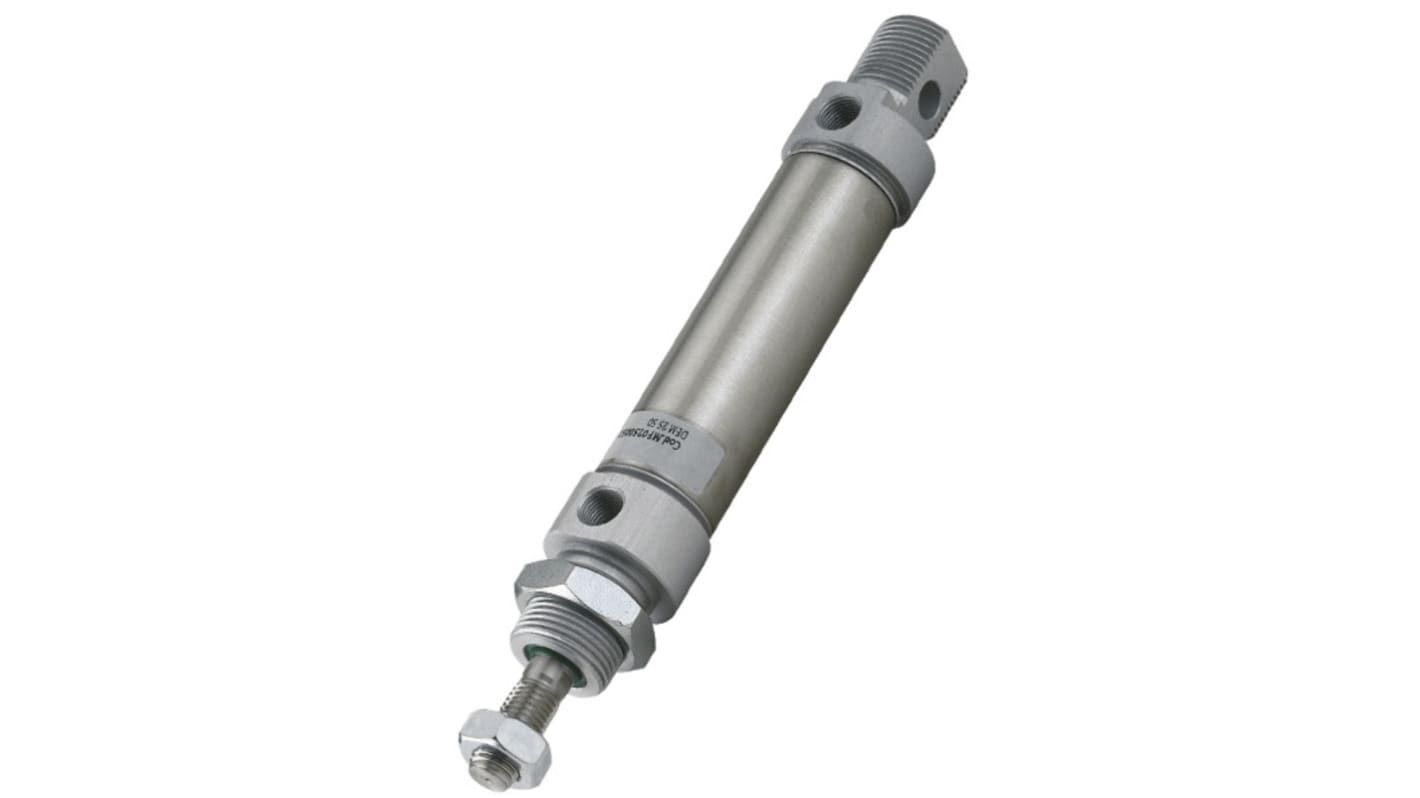

RS PRO Roundline Cylinder - 20mm Bore, 50mm Stroke, Double Acting
- RS Stock No.:
- 176-1631
- Brand:
- RS PRO
18 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£43.64
(exc. VAT)
£52.37
(inc. VAT)
| Units | Per unit |
| 1 + | £43.64 |
- RS Stock No.:
- 176-1631
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro double-acting MINI CYLINDERS according to ISO 6432 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
Specifications
Attribute | Value |
|---|---|
| Stroke | 50mm |
| Bore | 20mm |
| Action | Double |
| Length | 181mm |
| Cushioning Type | Not Cushioned |
| Dimensions | 27 Dia. x 181mm |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +80°C |
| Diameter | 27mm |
| Minimum Operating Temperature | 0°C |
