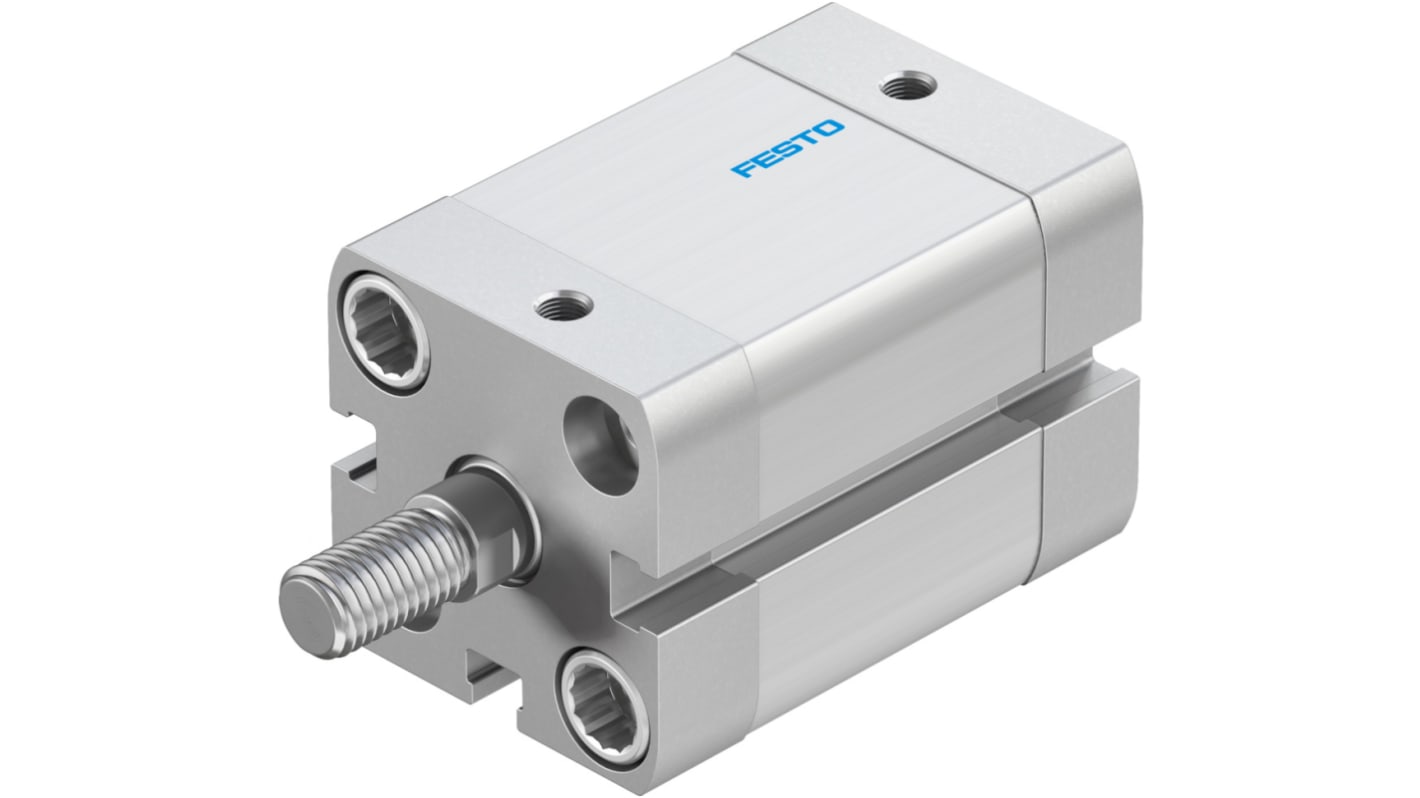

Festo Pneumatic Cylinder - 536254, 25mm Bore, 20mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 136-6782
- Mfr. Part No.:
- ADN-25-20-A-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£61.47
(exc. VAT)
£73.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.47 |
*price indicative
- RS Stock No.:
- 136-6782
- Mfr. Part No.:
- ADN-25-20-A-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536254 | |
Bore | 25mm | |
Stroke | 20mm | |
Action | Double | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Dimensions | 39.5 x 39.5 x 64.5mm | |
Height | 39.5mm | |
Width | 39.5mm | |
Length | 64.5mm | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536254 | ||
Bore 25mm | ||
Stroke 20mm | ||
Action Double | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Dimensions 39.5 x 39.5 x 64.5mm | ||
Height 39.5mm | ||
Width 39.5mm | ||
Length 64.5mm | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo ADN Series Pneumatic Cylinder, 20mm Stroke, 25mm Bore - ADN-25-20-A-P-A, Numeric Part Number: 536254
This pneumatic cylinder is crafted for a variety of automation tasks, offering an effective solution for linear motion in industrial settings. Manufactured in accordance with ISO 21287 standards, it ensures efficient movement. Its double-acting design allows for versatile applications while maintaining optimal performance across different conditions.
Features & Benefits
• Compact design suitable for limited spaces
• Double-acting function provides effective stroke control
• Elastic cushioning ensures smooth damping
• Compatible with proximity switches for accurate position detection
• Double-acting function provides effective stroke control
• Elastic cushioning ensures smooth damping
• Compatible with proximity switches for accurate position detection
Applications
• Ideal for assembly and packaging machinery
• Utilised in automated handling systems within manufacturing environments
• Suitable for robotic systems that require precise linear movement
• Employed in material processing equipment for efficient operations
• Utilised in automated handling systems within manufacturing environments
• Suitable for robotic systems that require precise linear movement
• Employed in material processing equipment for efficient operations
What type of operating medium is recommended for best performance?
The ideal operating medium is compressed air that meets ISO 8573-12010 quality standards.
What kind of thread is present on the piston rod?
The piston rod is equipped with a male thread, typically M8, for secure connections.
What are the environmental operating limits for this device?
It operates effectively within ambient temperatures ranging from -20 to +80°C.
FESTO ADN Series
